X marking: Any static-electricity discharge from
the spray gun is to be diverted to the grounded
high-pressure pump via the conductive high-pres-
sure hose as stipulated.
To avoid the generation of machine sparks, pre-
vent impact stresses and any work on the unit with
tools in the explosion-hazardous area.
4. Specifications
G 15
Max. operating overpressure 530 bar (53 MPa)
Medium inlet thread M16 x 1.5 or
NPSM 1/4
Material outlet thread 11/16 - 16 UN/2A
Material of the material- High-grade steel,
carrying components Aluminium, Teflon,
Hard metal
Permissible ambient
temperature: + 5° C to + 40° C
Max. temperature of the
coating material 43° C
Max. sound pressure level 85 dB (A)*
Weight 600 g
* Measuring location: 0.5 m away from the coating
surface, 0.5 m behind the spray gun, spray pres-
sure 120 bar, tip size 53mm / 021.
5. Connecting the airless
spray gun to the airless high-
pressure pump
• Make sure that the airless high-pressure pump
is pressure-relieved and switched off.
• Lock the airless spray gun - position safety
catch (2, Fig. 1) to the rear (direction of gun hou-
sing).
• Connect airless spray gun to high pressure hose
and to the airless high-pressure pump.
• Fit a standard tip, see next section. Fit other
nozzles (e.g. adjustable) only in accordance with
nozzle manufacturer's instructions.
6. Fitting and adjustment of
standard tips

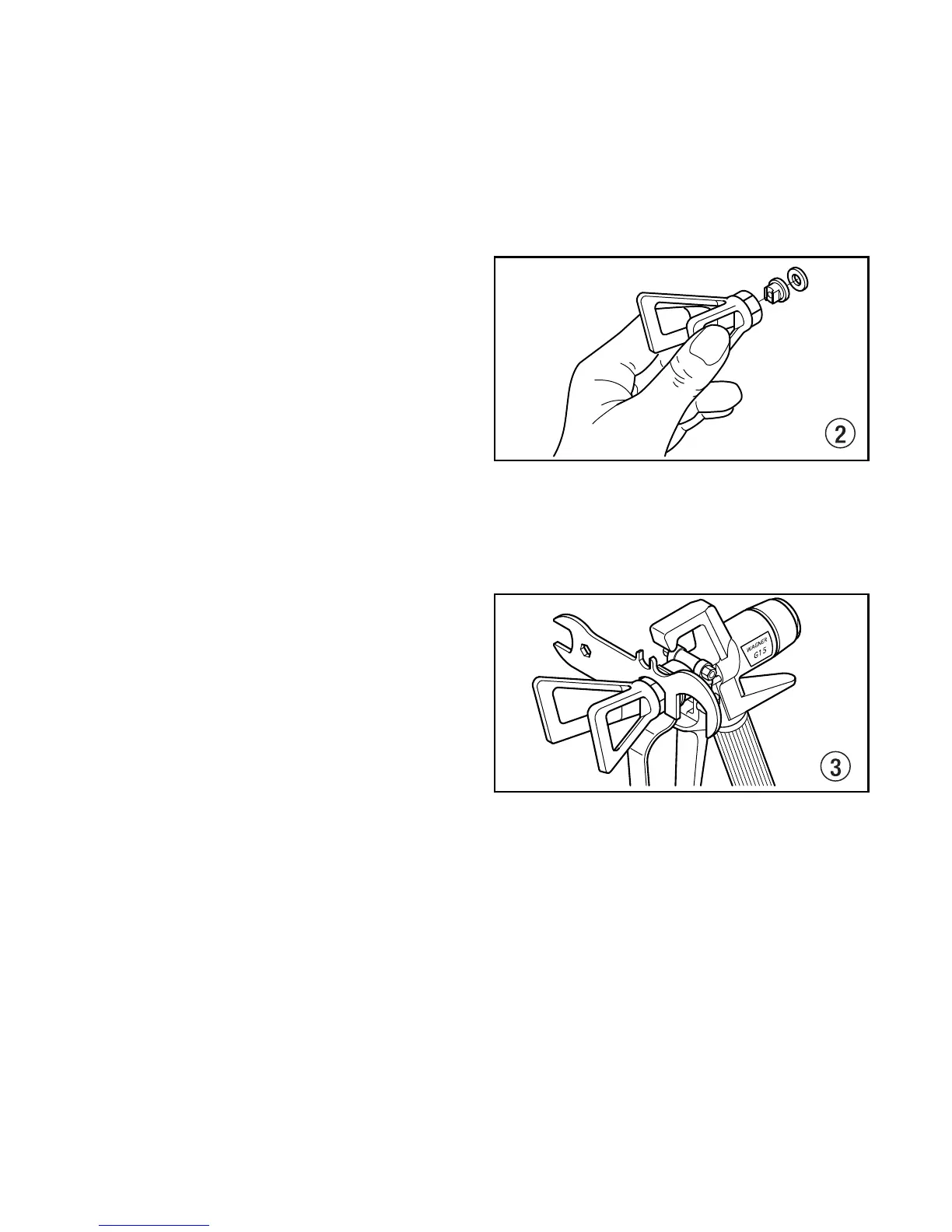

• Insert standard tip with the spanner surfaces
parallel to the wings of the touch guard in the
union nut.
• Insert sealing washer into the union nut.
• Screw union nut onto the airless spray gun, but
do not tighten it yet.
• Turn spray jet touch guard for spraying on the
horizontal or vertical plane as required. Tighten
union nut.
