40 HC 35 E • HC 45 E • HC 55 E
g
Description of unit Starting operation
3.8 Crane transport

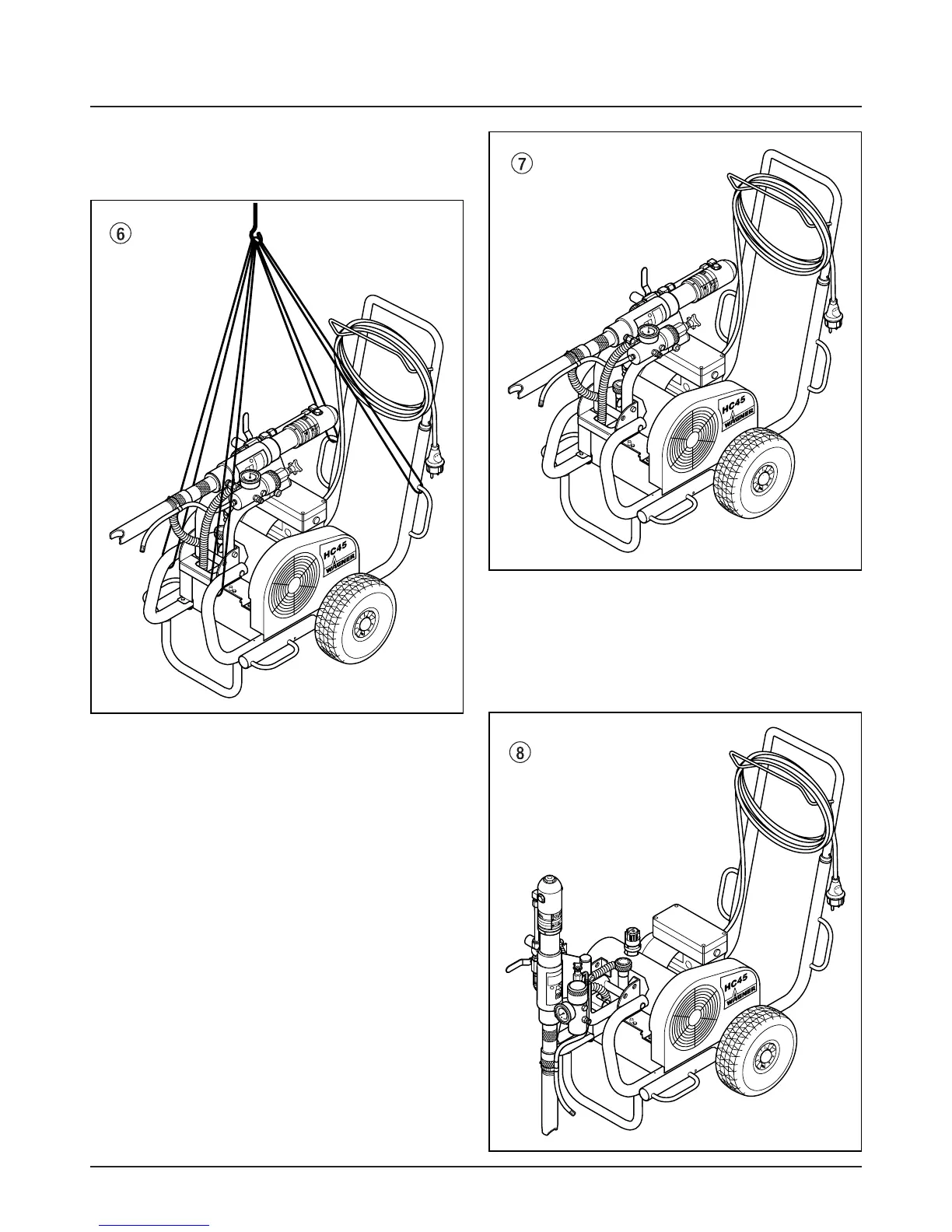

Hanging points for crane straps or ropes, see figure 6.
4. Starting operation
4.1 Swivel mechanism of the material
feed pump
1. Transport position (fig. 7)
Transport unit only if material feed pump is in a horizon-
tal position.
Swiveling the material feed pump to a horizontal position
also allows removal of the pump from the coating materi-
al container.
Ensure that the retention pin locks.
2.0 Operating position I (fig. 8)
Swiveling the material feed pump to a vertical position
allows the material feed pump to be immersed in the
coating material container.
