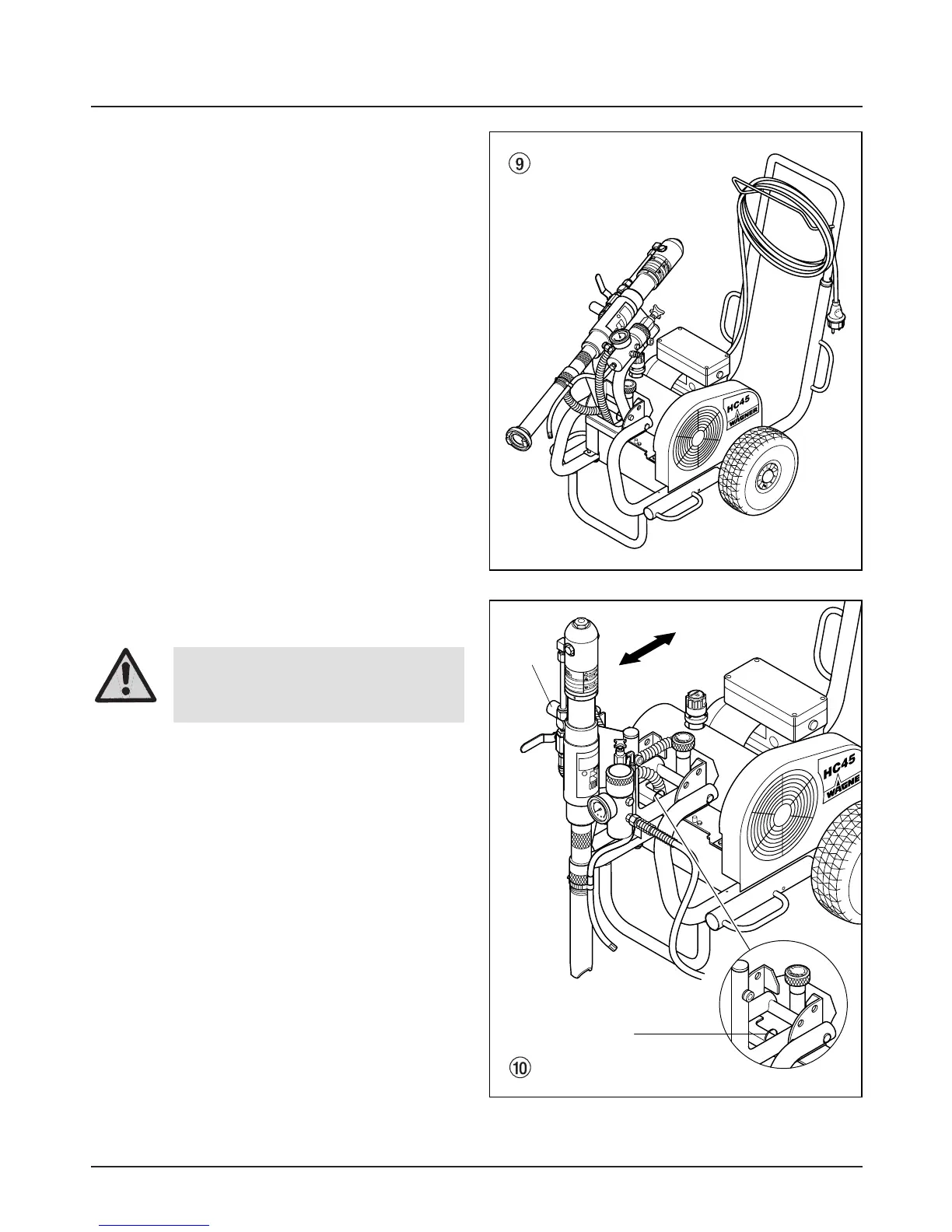

2.1 Operating position II (fig. 9)
Swivel material feed pump to a slanted (45 °) position if
using the container suction system (accessory). In this
position, there is open space under the material feed
pump.
Materialförderpumpe in schräge (45°) Position schwen-
ken, bei Einsatz des Container Ansaugsystems
(Zubehör). In dieser Position ist Freiraum unter der
Materialförderpumpe.
Starting operation
4.2 Changing the material feed pump
position
1. Grip handle (fig. 10, item 1) with one hand.
2. Pull retention pin (2) with the other hand.
3. Swivel material feed pump up or down to the desired
position, until the retention pin (2) locks into the new
position.
2
1
Danger
Be careful, as the moving parts of the
swivel mechanism can crush fingers
and feet.
