WAGNER HERO 23D - Setup on an Uneven Surface; Technical Data

6
HERO 23D / Hero 23 / SF 23 Pro
2 TECHNICAL DATA
China/EU/AUS
Voltage : 230 V AC, 50 Hz
Fuses : 16 A time-lag
Unit connecting line : 6 m long, 3 x 1.5 mm²
Max. current consumption: 7.0 A
Degree of protection : IP 54
Rated input of device: 1.3 kW
Max. operating pressure : 25 MPa (250 bar)
Max. volume ow : 2.6 l/min
Volume ow at 12 MPa
(120 bar) with water : 2.3 l/min
Max. temperature of the
coating material : 43 °C
Max. viscosity : 20,000 mPas
Empty weight : 27 kg
Hydraulic oil lling
quantity :
Hydraulics housing
Gears (grease)
1.3 liter
45 g
Max. vibration at the spraygun : lower than 2.5 m/s²
Max. sound pressure level: 75 dB (A)*
*Place of measurement: 1 m distance from unit and 1.60 m
above oor, 12 MPa (120 bar) operating pressure, reverberant
oor
GB

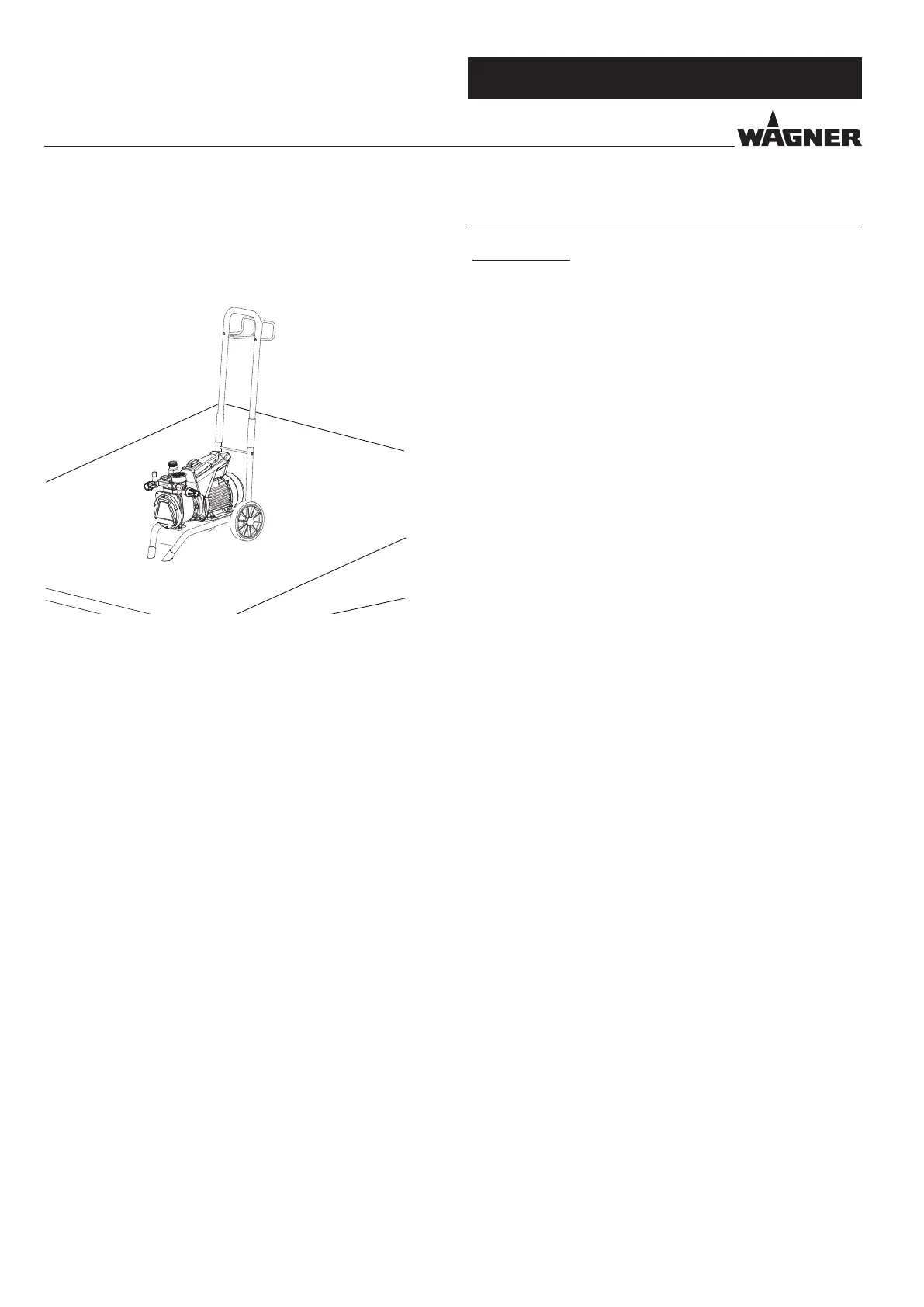

1.20 SETUP ON AN UNEVEN SURFACE
The front end must always point downwards in order to avoid
sliding away.
If possible do not use the unit on an inclined surface since the
unit tends to wander through the resulting vibrations.
SAFETY REGULATIONS / TECHNICAL DATA
