OPERATING MANUAL
VERSION 01/2013 ORDER NUMBER DOC 2333538
Before every start-up, the following points should be
observed as laid down in the operating manual:
- Secure gun with safety clip
- Check the permissible pressures.
- Check all connections for leaks.
- Check hoses for damage.
It should be ensured that the device is in the following
state before carrying out any work on it:
- The pressure should be released from the pump and
high-pressure hose with gun.
- The gun should be secured with safety clip.
- Interrupt the air supply.

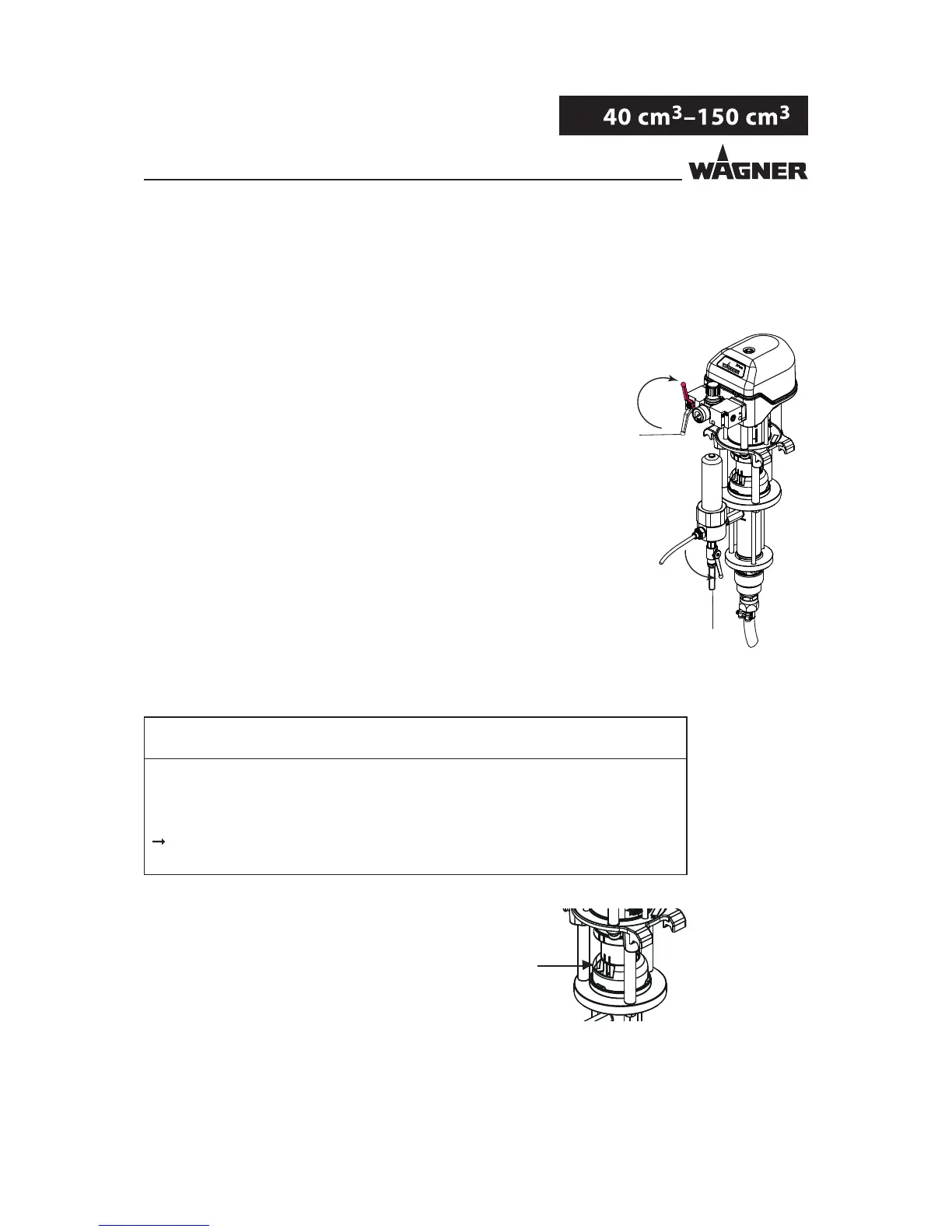

Emergency Stop
In case of unforeseen occurrences the ball valve (2) should
be closed immediately and the return valve (3) opened.
6.5.2 FILLING UP WITH SEPARATING FLUID
Place the supplied separating uid into the separating uid cup.
Filling level: 1 cm; 0.4 inch under the cup edge.
Separating uid: Order No. 9992504
Note
Maximum permissible inclination of pump for moving,
transportation etc. after lling it with separating uid ± 30°.
The pump must be vertical during operation.
Open
Closed
Open
Piston pump dry run!
High wear/damage to the packages.
Paint or solvent can escape if the seals are dry.
Ensure that the separating uid container is lled with su cient separating uid.
Filling level 1 cm; 0.4 inch under the pot edge.
NOTICE
