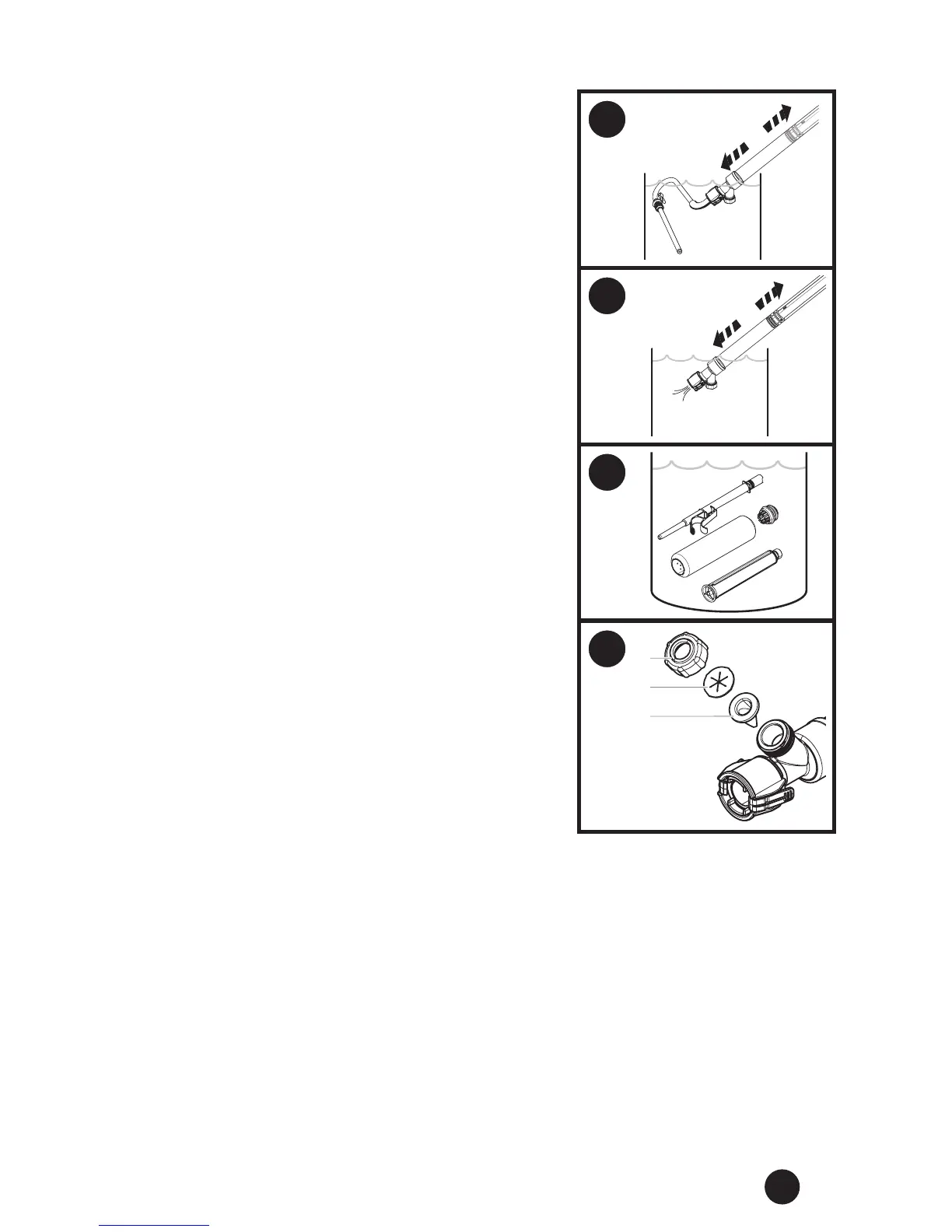

6. Remove the ll tube. Submerge the ll valve and roller
arm and pull the plunger in and out a minimum of 5
times.
7. Remove the roller arm. Submerge the head of the Smart
Roller and the ll valve and pull the plunger in and out a
minimum of 5 times.
8. Clean the remaining parts (cap, core, and cover) by hand
using the appropriate cleaning solution.
cleaninG the fill ValVe (9)
A. Unscrew the locking cap (a) on the valve housing.
B. Remove the retainer disk (b) and the duckbill (c) from the
valve housing.
C. Clean these parts using the appropriate cleaning
solution. DO NOT allow parts to soak, as they could swell
and not seal properly.
D. Inspect the duckbill valve (c) for any tears or damage.
E. Lubricate the tip of the duckbill valve (c) with
petroleum jelly.
F. Allow all parts to dry before reassembly.
G. Replace the duckbill (c) and the retainer disk (b).
H. Screw the locking cap (a) back onto the valve housing.
