(a)
(k)
(l)
(p)
(e)
(f)
(g)
(h)
(i)
(j)
(b)
(c)
(d)
(q)
(n)
(o)
(m)
(q)
(1)
(2)
(3)
(5)
(4)
Grounding Instructions
T
his product must be grounded. In the event of an electrical short
circuit, grounding reduces the risk of electric shock by providing an
e
scape wire for the electric current. This product is equipped with a
cord having a grounding wire with an appropriate grounding plug.
T
he plug must be plugged into an outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
Danger! Improper installation of the grounding plug can result
in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not
connect the green grounding wire to either flat blade terminal. The
wire with insulation having a green outer surface with or without
yellow stripes is the grounding wire and must be connected to the
grounding pin.
Check with a qualified electrician or serviceman if the grounding
instructions are not completely understood, or if you are in doubt as
to whether the product is properly grounded. Do not modify the
plug provided. If the plug will not fit the outlet, have the proper
outlet installed by a qualified electrician.
This product is for use on a nominal 120 volt circuit and has a
grounding plug that looks like the plug illustrated below. Make sure
t
hat the product is connected to an outlet having the same
configuration as the plug.
No adapter should be used with this
product.
Grounded Outlet
Grounding Pin
Cover for grounded outlet box
3
English
Important Safety Information • Read all safety information before
operating the equipment. Save these instructions

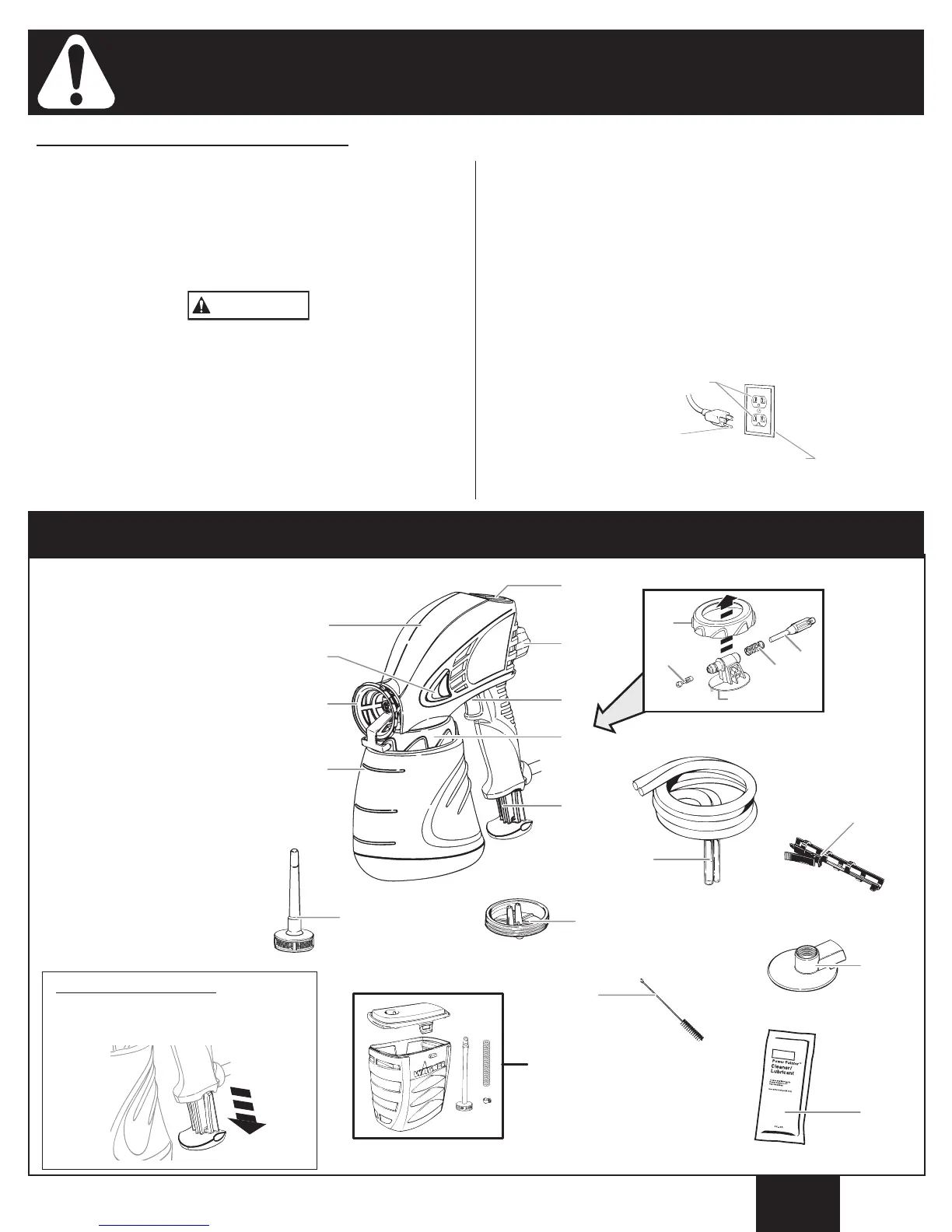

Parts and Components
a) Sprayer assembly
b) Lock-N-Go™ release buttons
c) Spray tip
d) 1 1/2 quart fluid container
e) Speed control switch
f) Flow control knob
g) Trigger
h) Pump housing assembly
1) Piston
2) Spring
3) Pump housing
4) Pump housing ring
5) Swirl valve (2)
i) Extendable handle*
j) Suction set
k) Dual hose set
l) Dual hose fitting
m) Container clip
n) Quick-clean cap
o) Cleaning brush
p) Cleaner / Lubricant**
q) Back pack kit
**included in some models
*Extendable Handle
When you are using the larger, 1 1/2
quart cup, pull out the handle extension.
