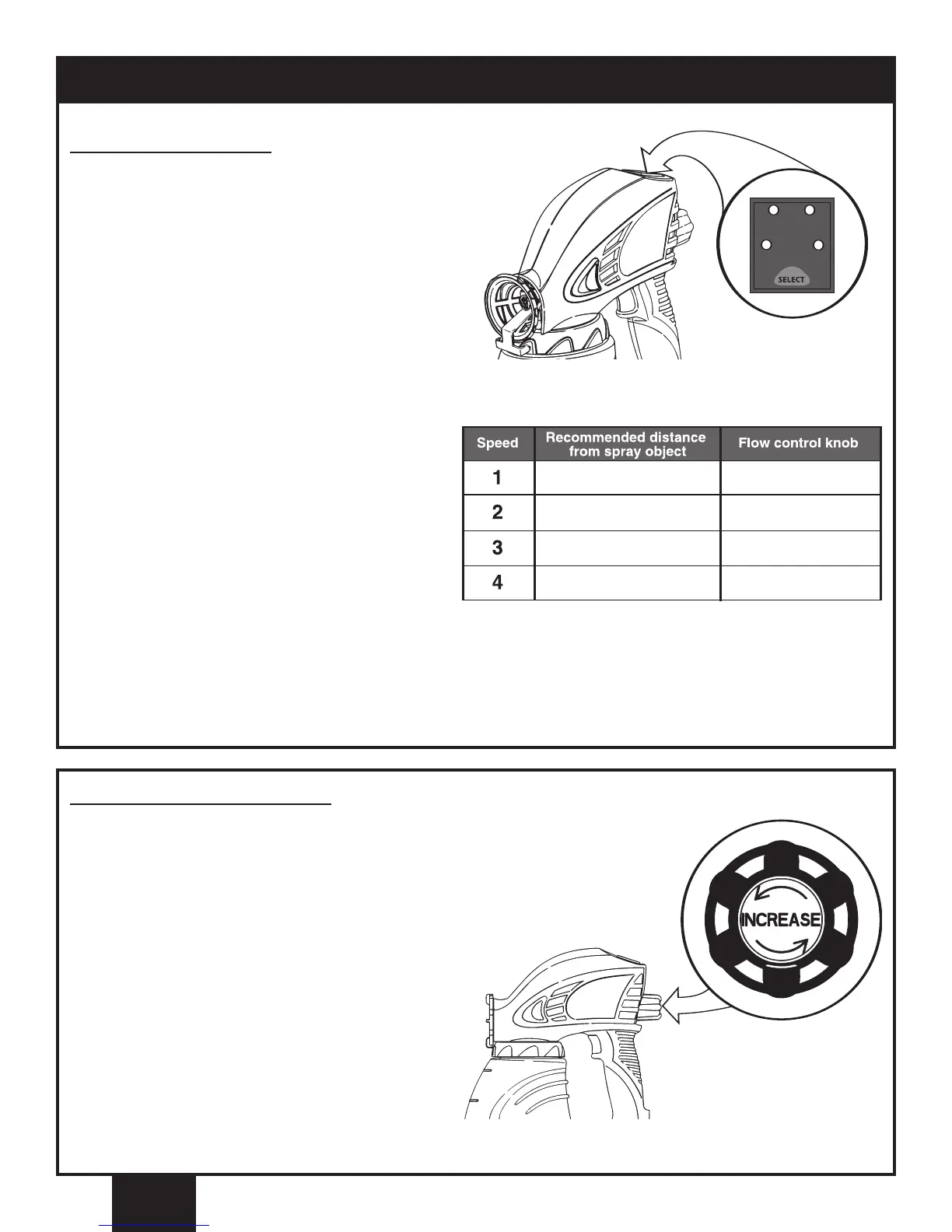

Speed Control / Flow Control Knob
Your sprayer offers you four speed levels (1 being
lowest, 4 being highest). The lower the speed level, the
closer you can get to your work and the less overspray
you will have.
The spray pattern is controlled by the Flow Control Knob
on the rear of the sprayer, and by the thickness of the
material being sprayed.
8 - 12 inches Medium flow
4 - 8 inches Low to medium flow
6 - 10 inches Medium flow
12 inches
Medium to maximum
flow
NOTE - Do not get the speed control wet or the sprayer could be damaged. Be careful during use and cleanup.
Speed Control:
Flow Control Knob:
Lower speed levels give you greater control but require
more time to cover an area. Depending upon the
thickness of the material or conditions, the settings may
need to be adjusted. Refer to the chart on the right.
To adjust the speed setting, press the button on the
speed control until the light indicates your desired
speed.
1
23
4
SPEED
CONTROL
Turning the flow knob COUNTERCLOCKWISE increases
the amount of material flow. Turning the flow knob
CLOCKWISE decreases the amount of material flow.
