7
English
1. Lay cord seal (a) in backpack lid groove (b). Overlap the
e
nds of the cord seal by approximately 1/2 inch. Cut off
remaining seal. Lift seal and butt edges together and
p
ress excess seal into groove.
(a)
(b)
3.
Assemble strap hooks to container using same hole as lid
clip. Adjust strap to fit user.
2. Snap suction tube
(c) through hole in
bottom of backpack lid. Assemble
backpack kit as shown and secure clip
onto suction hose
(d). When backpack
kit is assembled, follow steps 1-6 in
Suction Extension Setup (previous
p
age) to attach the kit to the sprayer.
(c)
6. Place lid on container and press firmly into place. Secure
with the tabs
(f).
5. Pour material into back pack to fill line.
Do not fill above
the indicated fill line (e).
(e)
(f)
7. Back pack can either be back- or shoulder-mounted as
shown. Adjust straps to fit user.

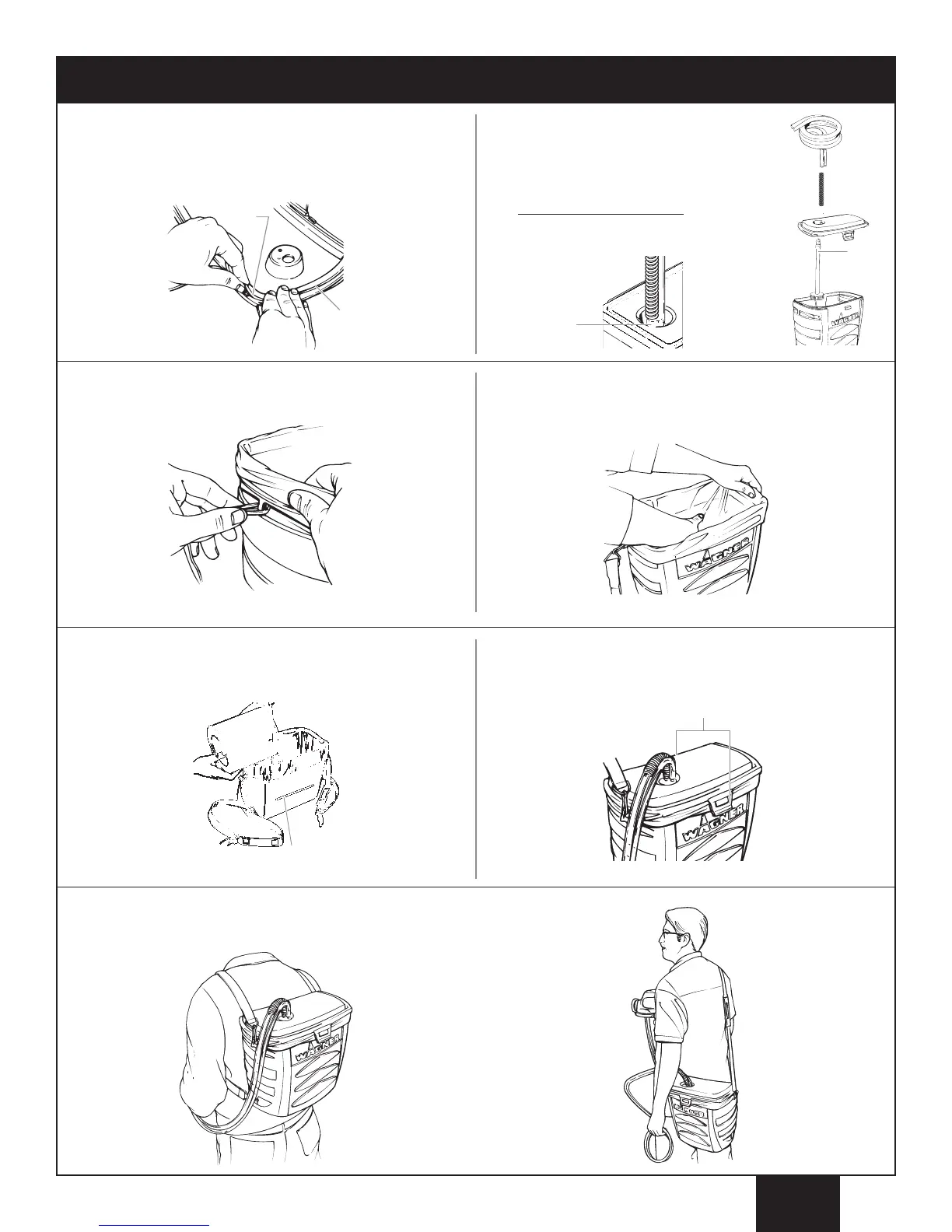

Backpack Kit Setup (optional)
(d)
4. If you want to use a backpack liner, install as shown.
