WAGO 750-363/0040-0000 User Manual

WAGO-I/O-SYSTEM 750 Device Description 59
750-363/0040-0000 FC EtherNet/IP G4 ECO XTR
Manual
Version 1.0.0
4.4 Operating Elements
4.4.1 Service Interface
The service interface is located behind the flap.
It is used for the communication with the WAGO I/O-CHECK and WAGO
Ethernet Settings.

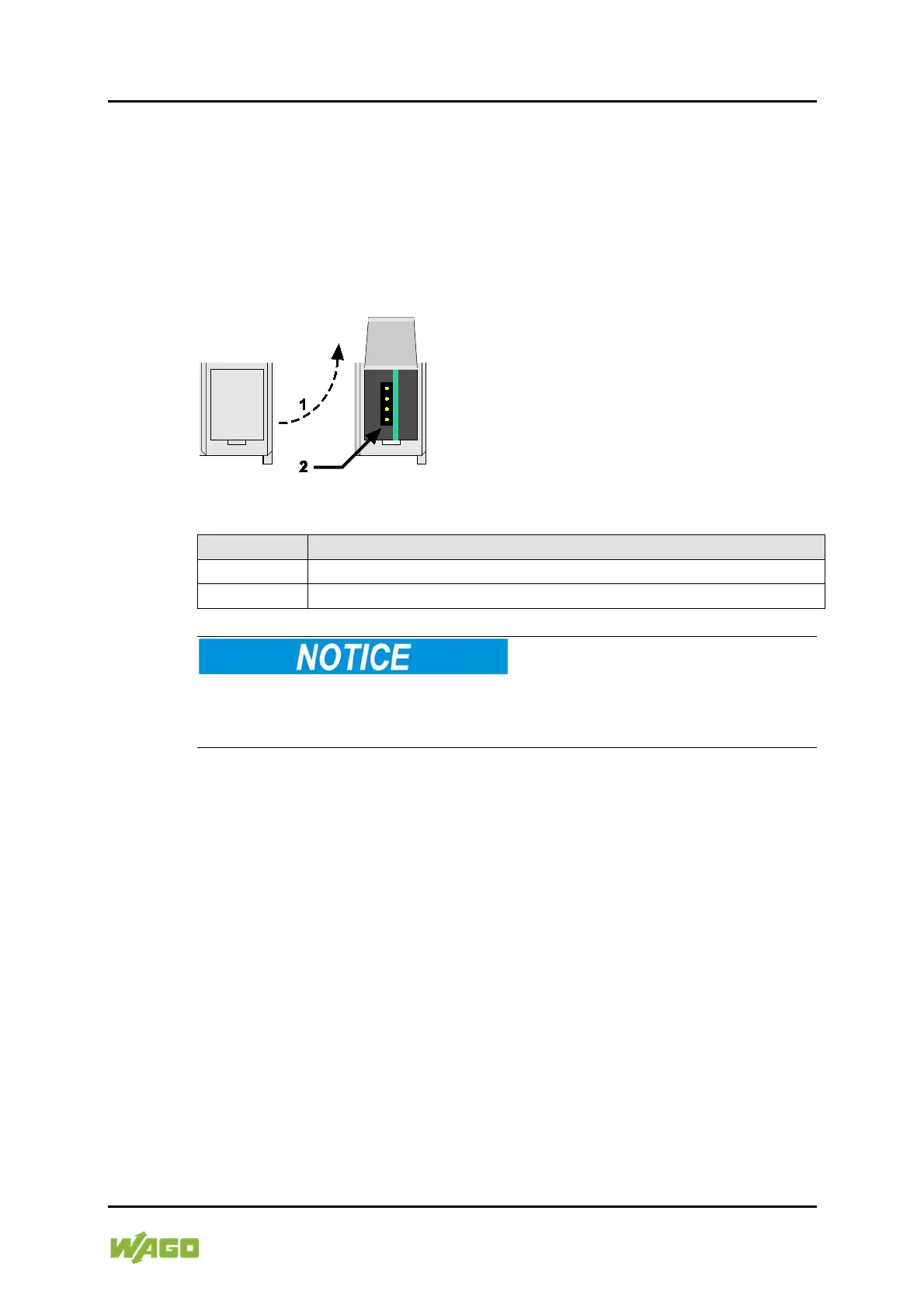

Figure 31: Service Interface (Closed and Opened Flap)
Table 20: Legend for Figure “Service Interface (Closed and Opened Flap)”
Number
Description
1
Open closed
2
View Service Interface
Device must be de-energized!
To prevent damage to the device, unplug and plug in the communication cable
only when the device is de-energized!
The connection to the 4-pin header under the cover flap can be realized via the
communication cables with the item numbers750-920 and 750-923 or via the
WAGO radio adapter with the item number 750-921.

WAGO 750-363/0040-0000 Specifications

General

Brand	WAGO
Model	750-363/0040-0000
Category	Control Unit
Language	English
