WAGO WAGO-I/O-SYSTEM 750 Series User Manual

WAGO-I/O-SYSTEM 750 Device Description 23
750-657 IO-Link Master
Manual
Version 1.0.2, valid from FW/HW-Version 02/01
Pos: 35 /Serie 750 (W AGO-I/O-SYSTEM)/Geräteb eschreibung/Ansch lüsse/CAGE CLAMP-Ansc hlüsse - Überschri ft 3 @ 6\mod_1256296337770_ 21.doc @ 43674 @ 3 @ 1
4.2.3 CAGE CLAMP
®
Connections
Pos: 36 /Serie 750 (W AGO-I/O-SYSTEM)/Geräteb eschreibung/Ansch lüsse/Sonderklemm en/Anschlüsse 750-065 7 @ 5\mod_1245067343796_2 1.doc @ 35305 @ @ 1
Pos: 37 /Dokumentati on allgemein/Glieder ungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1

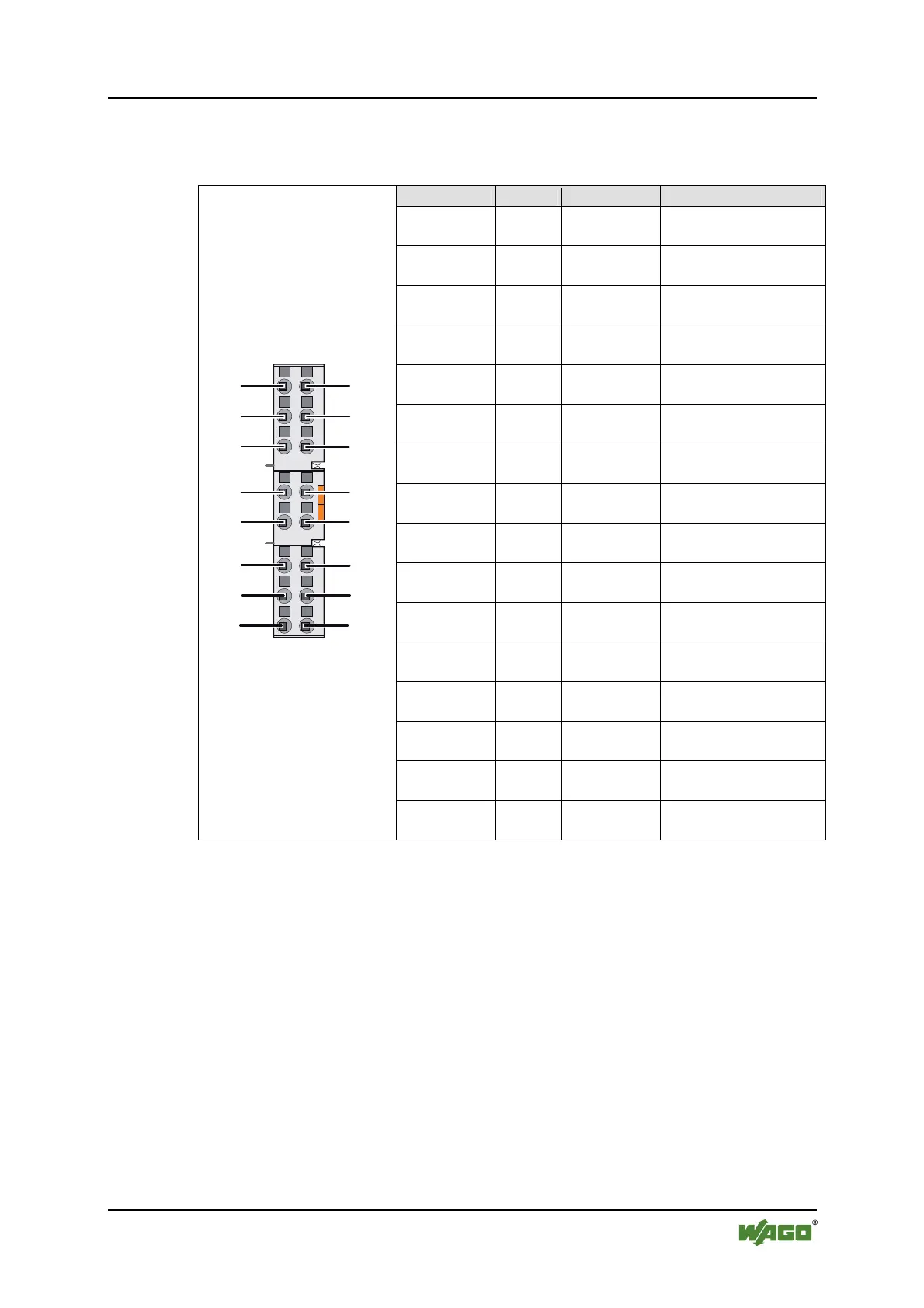

Table 6: Connections
Termination Channel Designation Function
1 1 C/Q 1 IO-Link Port 1
2 --- L+ Power supply DC 24 V
3 --- L- Power supply 0 V
4 --- + 24 V Field supply 24 V
5 --- 0 V Field supply 0 V
6 2 C/Q 2 IO-Link Port 2
7 --- L+ Power supply DC 24 V
8 --- L- Power supply 0 V
9 3 C/Q 3 IO-Link Port 3
10 --- L+ Power supply DC 24 V
11 --- L- Power supply 0 V
12 --- + 24 V Field supply 24 V
13 --- 0 V Field supply 0 V
14 4 C/Q 4 IO-Link Port 4
15 --- L+ Power supply DC 24 V
C/Q 1 C/Q 3
C/Q 2 C/Q 4
+24 V + 24 V
0 V 0 V
L+ L+
L+ L+
L- L-
L- L-
Figure 6: Connections
16 --- L- Power supply 0 V
