This document provides assembly instructions and important information for a metal bunk bed, available in two assembly options: a standard bunk bed (Option A) and a bunk bed with a futon on the lower level (Option B). The manual is presented in English, French, Spanish, and German.

Function Description:

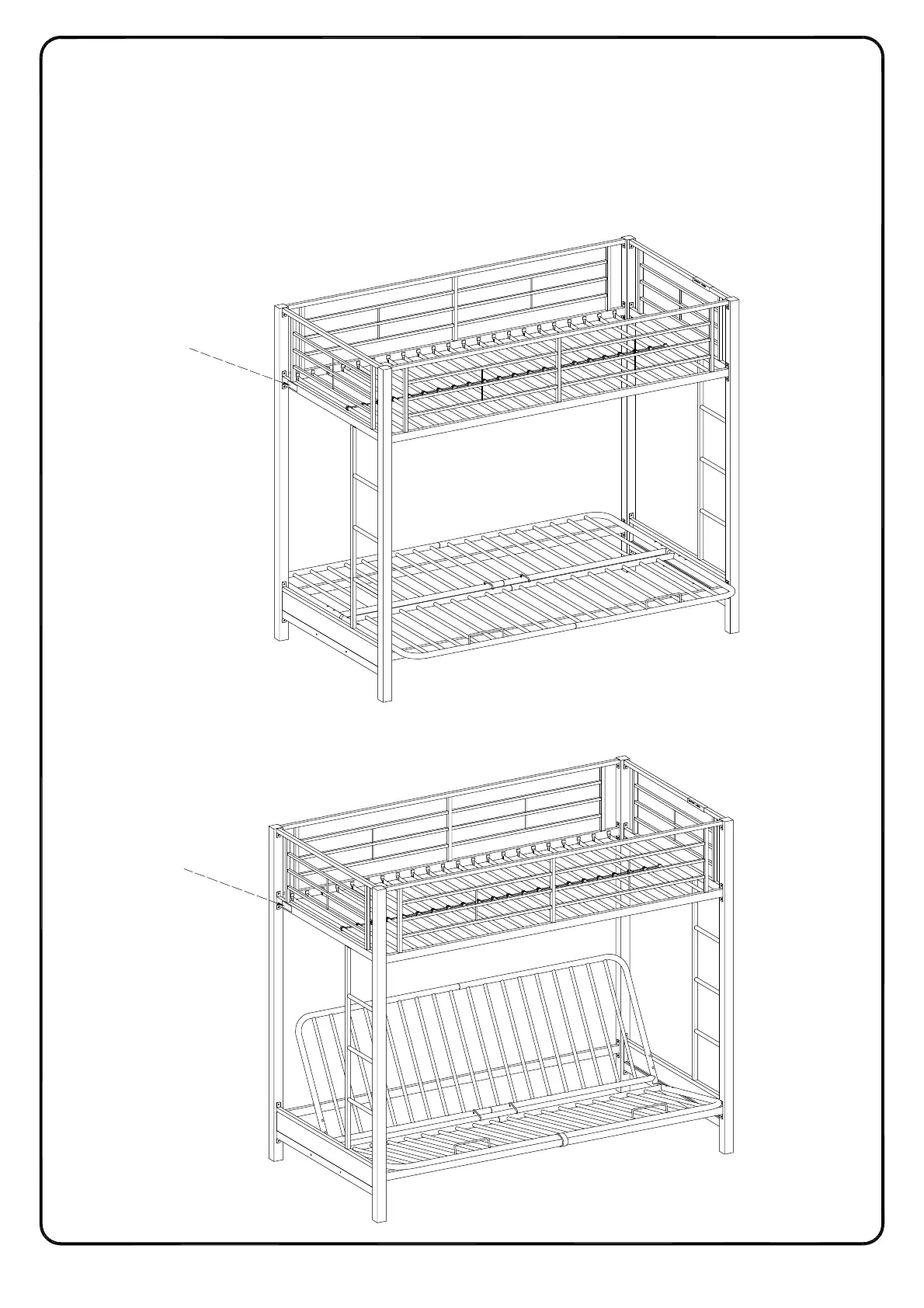

The device is a bunk bed designed to provide two sleeping surfaces in a compact vertical arrangement. It offers versatility with two primary assembly configurations:

Option A (Standard Bunk Bed): Features two fixed bed frames, one above the other, suitable for mattresses. This configuration maximizes sleeping capacity in a smaller footprint.
Option B (Bunk Bed with Futon): Includes a fixed upper bed frame for a mattress and a convertible futon frame on the lower level. The futon can be adjusted between a sitting (sofa) position and a sleeping (bed) position, offering flexible use of space.

The bunk bed structure is primarily composed of metal components, including posts, guardrails, crossbars, and mattress support bars. It is designed for home use, particularly in children's rooms or spaces where maximizing vertical space is beneficial.

Important Technical Specifications:

Upper Bunk Mattress Dimensions: 74-75 inches (L) x 37.5-38.5 inches (W) x 9 inches (H).
Lower Bunk Mattress Dimensions (Option A): 75 inches (L) x 54 inches (W) x 9-10 inches (H).
Mattress Surface to Guardrail: The surface of the mattress must be at least 5 inches (127 mm) below the upper edge of the guardrails to ensure safety and prevent falls.
Prohibited Mattress Types: Water or sleep flotation mattresses are explicitly prohibited.
Maximum Mattress Thickness: The mattress on the upper bunk should not exceed 9 inches in thickness.
Guardrails: Guardrails are required on both long sides of the upper bunk. If the bunk bed is placed next to a wall, the full-length guardrail should be positioned against the wall to prevent entrapment.
Age Restriction for Upper Bunk: Children under 6 years of age are not permitted to use the upper bunk.
Hardware: The assembly requires various bolts (extra-large, double-headed, small, medium, large, extra-small), washers (large, small), nuts, plastic tab locks, plastic links, hex keys (M4, M5), and a wrench (5/16"). Specific quantities for each hardware item are provided in the parts list.

Usage Features:

Space-Saving Design: The vertical arrangement of the beds allows for efficient use of floor space, making it ideal for smaller rooms or shared bedrooms.
Convertible Lower Futon (Option B): The futon feature provides a versatile seating area during the day that can be easily converted into an additional sleeping surface at night. This adaptability enhances the functionality of the room.
Safety Features:
- Guardrails: Essential for preventing falls from the upper bunk.
- Ladder: Provided for safe entry and exit from the upper bunk.
- Warning Labels: Important safety information is provided on the bunk bed structure and packaging. These labels should not be removed.
- Night Light Recommendation: The use of a night light is suggested as an added safety precaution for children using the upper bunk.
Assembly Options: The choice between a standard bunk bed and a futon bunk bed allows users to select the configuration that best suits their needs.
Clear Instructions: The manual provides detailed, step-by-step instructions with corresponding diagrams for assembly, ensuring a straightforward process.

Maintenance Features:

Periodic Checks: Users are advised to periodically check and ensure that all components, including guardrails, the ladder, and other structural parts, are in their proper position, free from damage, and that all connectors are tight. This helps maintain the structural integrity and safety of the bed over time.
Replacement Parts: Replacement parts, including additional guardrails, can be obtained from Walker Edison Furniture Company dealers or through their website (www.walkeredison.com). This ensures that damaged or missing components can be easily replaced, extending the life of the product.
No Substitute Parts: It is explicitly stated that substitute parts should not be used, emphasizing the importance of using manufacturer-approved components for safety and compatibility.
Reference Instructions: Users are encouraged to keep the instructions for future reference, which is useful for maintenance, troubleshooting, or reassembly.
Prohibited Activities: The manual strictly prohibits horseplay, jumping on the bed, and more than one person on the upper bunk to prevent accidents and damage. It also warns against attaching or hanging items not designed for the bunk bed (e.g., hooks, belts, jump ropes) to avoid strangulation hazards.
