Walker Edison BWJRTOL - Step 11-12: Ladder Side Rail Attachment

P.19
Step 11
Step 12
x4
11
12
12
11
19
24
I
I
I
I
I
I
I
I
F
L
L
L
L
07
04
01
01
01
01
7x100mm
7x40mm
Hex Key
Hex Key
Hex Key
Hex Key
L

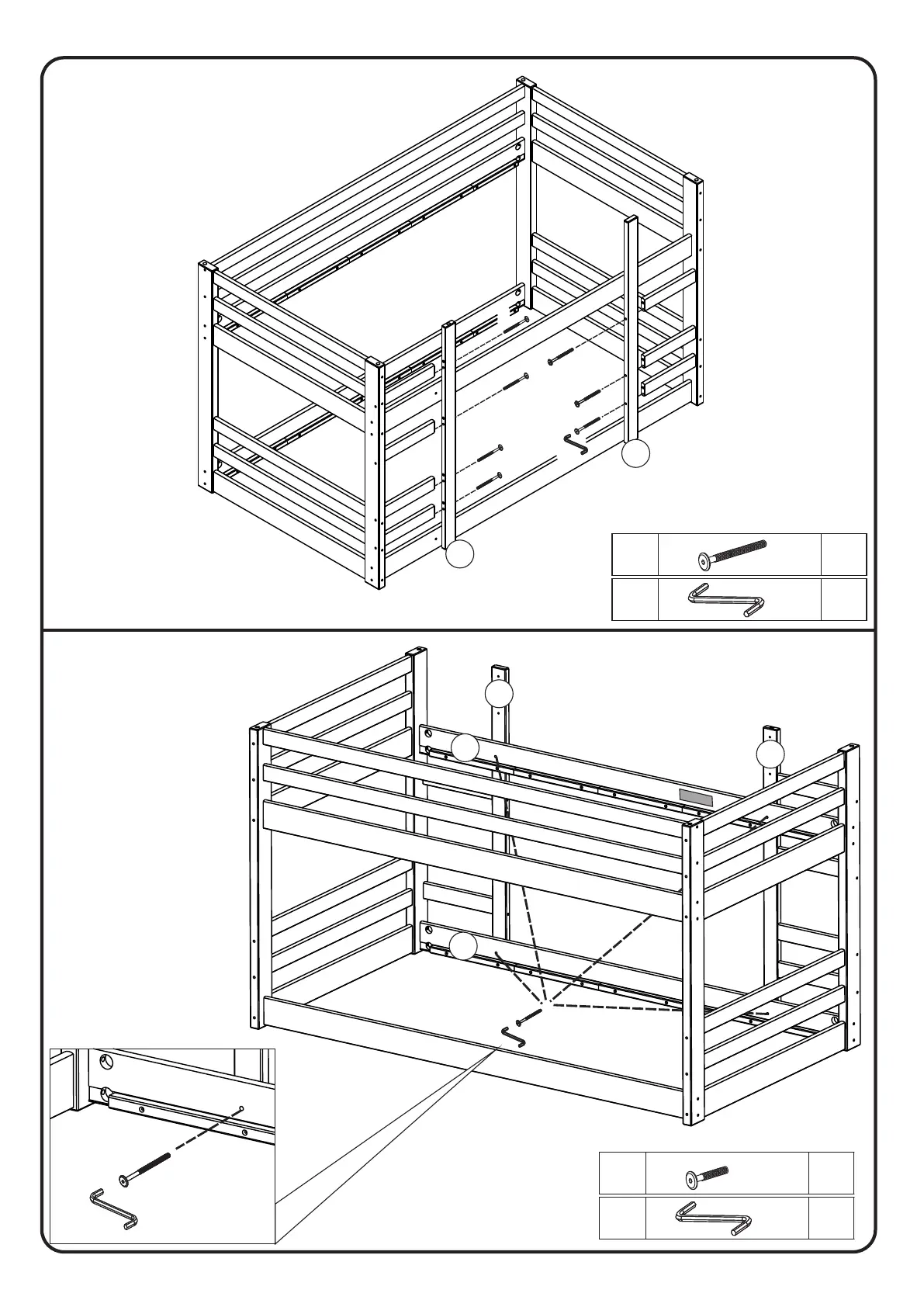

Attach ladder side rail (11 and 12) to step (15) using bolts (I) and
Hex Key (L).
F
F
L
L
Attach ladder side rail (11,12)
to bed rail (19,24) using bolts (F)
and Hex Key (L).
