Walker Edison BWJRTOL - Step 9-10: Ladder and Rail Assembly

P.9
Step 9
Step 10
I
I
I
I
I
I
F
F
F
F
L
L
I
L
L
L
L
02
01
01
01
01
7x100mm
Hex Key
Hex Key
Hex Key
Hex Key
L
L
G
G
L

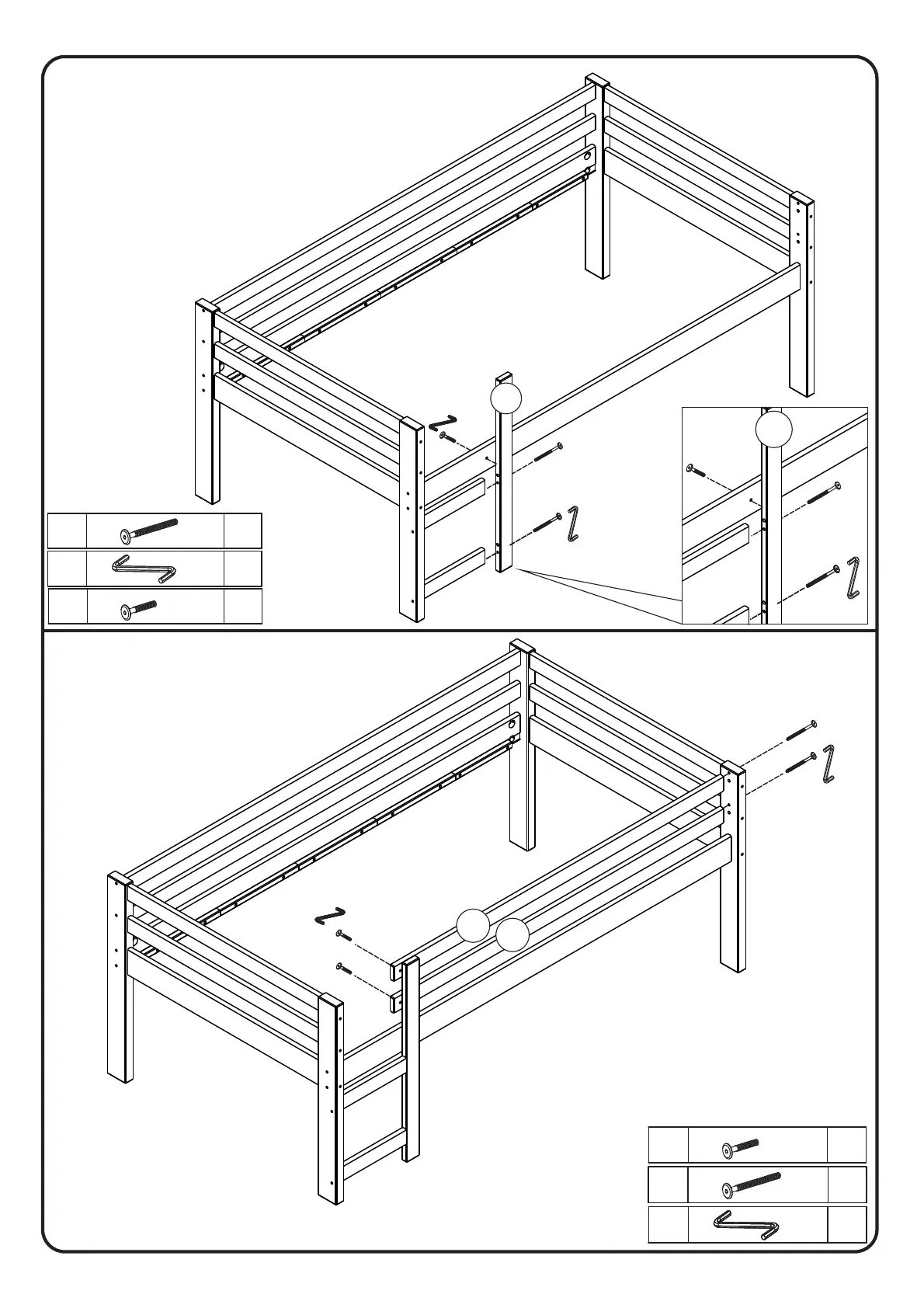

Attach ladder side rail (22) to step (15) and bed rail (20)
using bolts (I,F) and Hex Key (L).
Attach guard rail (17) to leg (06) and ladder side rail (22)
using bolts (G,F) and Hex Key (L).
22
17
17
22
F
F
01
02
7x40mm
7x40mm
G
02
7x80mm
