Walker Edison BWJRTOL - Step 13-14: Guard Rail and Support Installation

P.20
Step 13
Step 14
F
J
LL
04
06
0101
7x40mm
4,0x30
Hex KeyHex Key
16
05
05
16
F
J
J
J
J
J
J
F
F
L
L
L

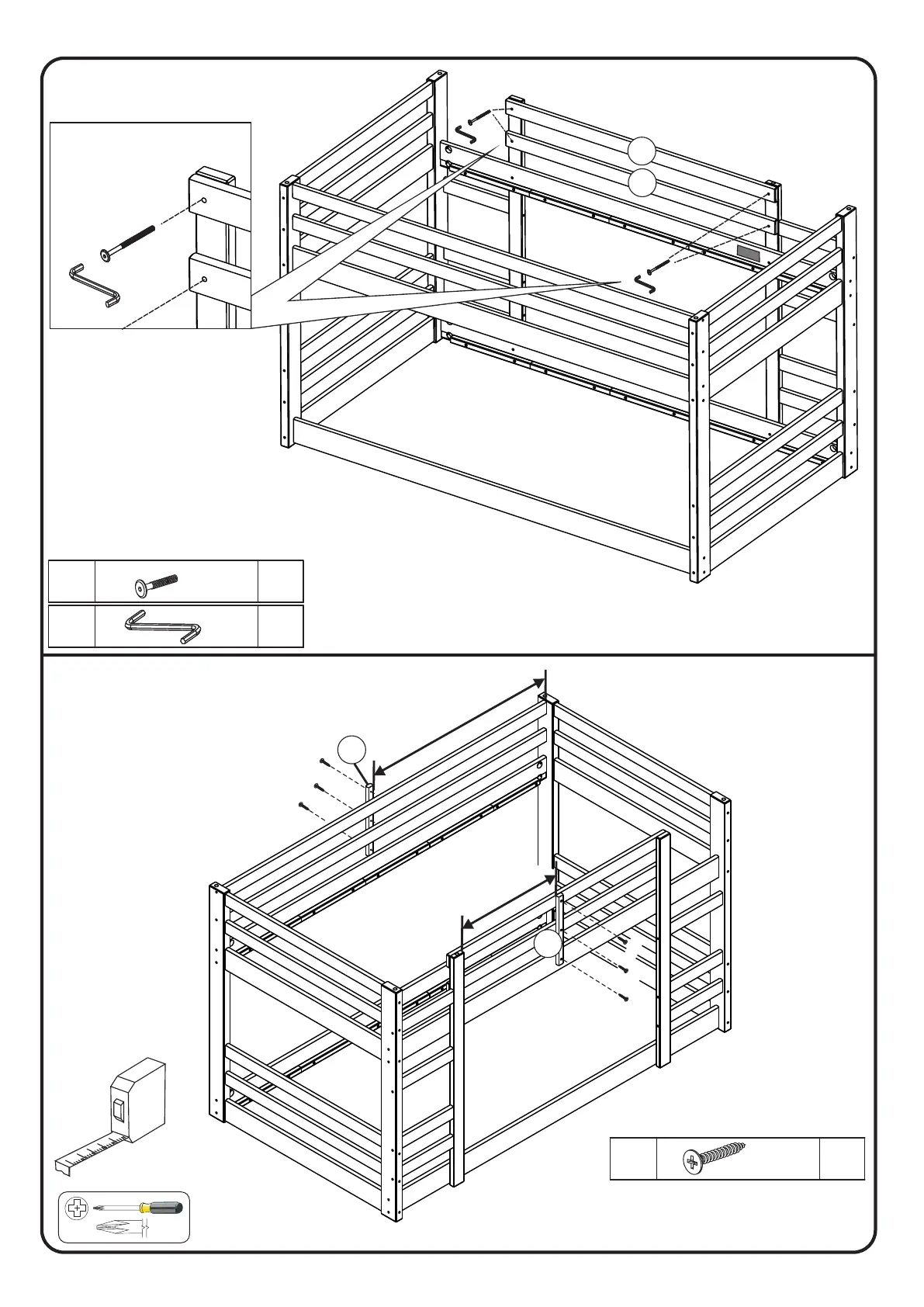

Attach guard rail (16) to ladder side rail (11,12) using bolts (F) and
Hex Key (L).
36 3/8"
22 1/8"
Connect guard rail support (05) to guard rail (16,18)
and bed rail (19,21) using screw (J).
Follow measurements shown in diagram.
