Walker Edison Cama CMAB8B - Página 8

P.8

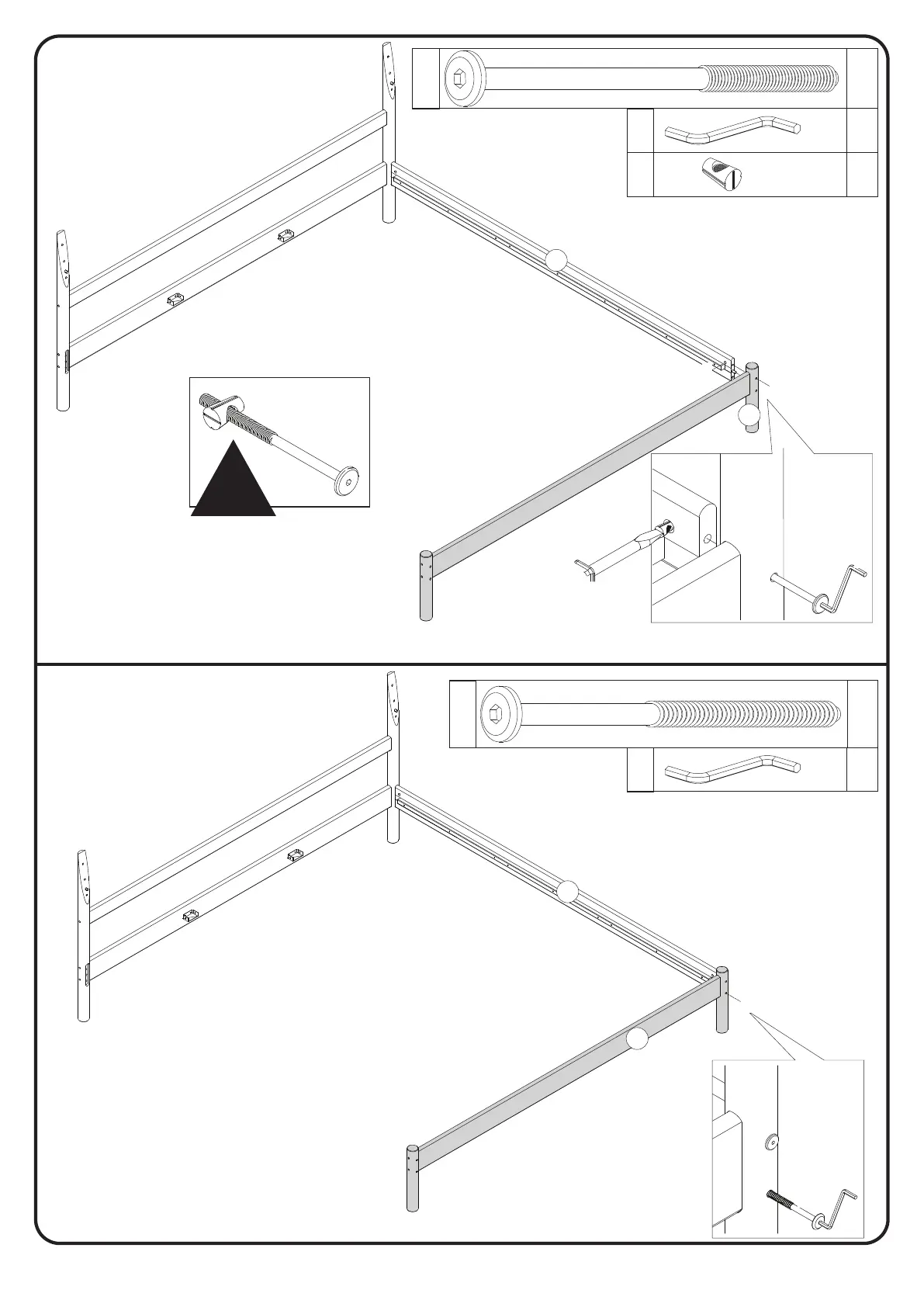

Step 7
Step 8
01
D
01
D
01
E
01
B
ø7,0"*80mm
01
C
ø1/4"*90mm
E
C
D
D
B
7
C+D
E
6
B+D
!
E
C
6
7
Attach part 7 with the Right Post 6, fix with screw B, using the hex key D
Attach part 7 with the Right Post 6, fix with the screw C and nut E, using
the hex key D. If necessary, use a slotted head screwdriver.
