Walker Edison Cama CMAB8B - Página 9

P.9

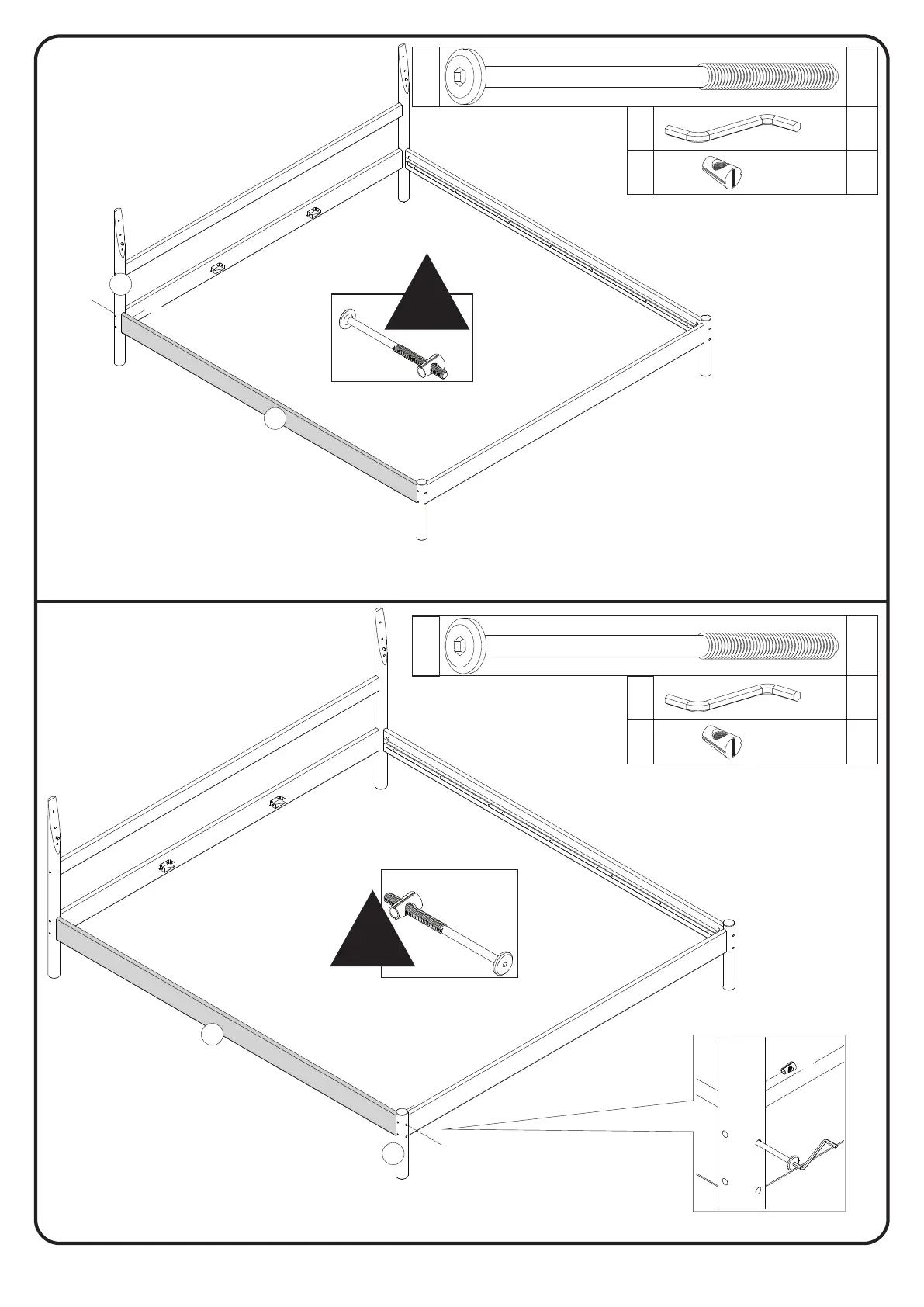

Step 9
Step 10
01
D
01
E
7
3
C+D
E
01
C
ø1/4"*90mm
01
D
01
E
01
C
ø1/4"*90mm
D
C
E
7
5
E
C+D
!
!
E
C
E
C
Attach part 7 with the Headboard Left Post 3, fix with screw C and nut E, using the hex key D.
Attach part 7 with the Left Post 5, fix with screw C and nut E, using the
hex key D.
"If necessary, use a slotted head screwdriver»
"If necessary, use a slotted head screwdriver»
