Walker MS - Fuel Filter

Maintenance Instructions CLEANING
52
Radial Sealing
Surface
Primary
Filter Element
Safety Filter
Canister

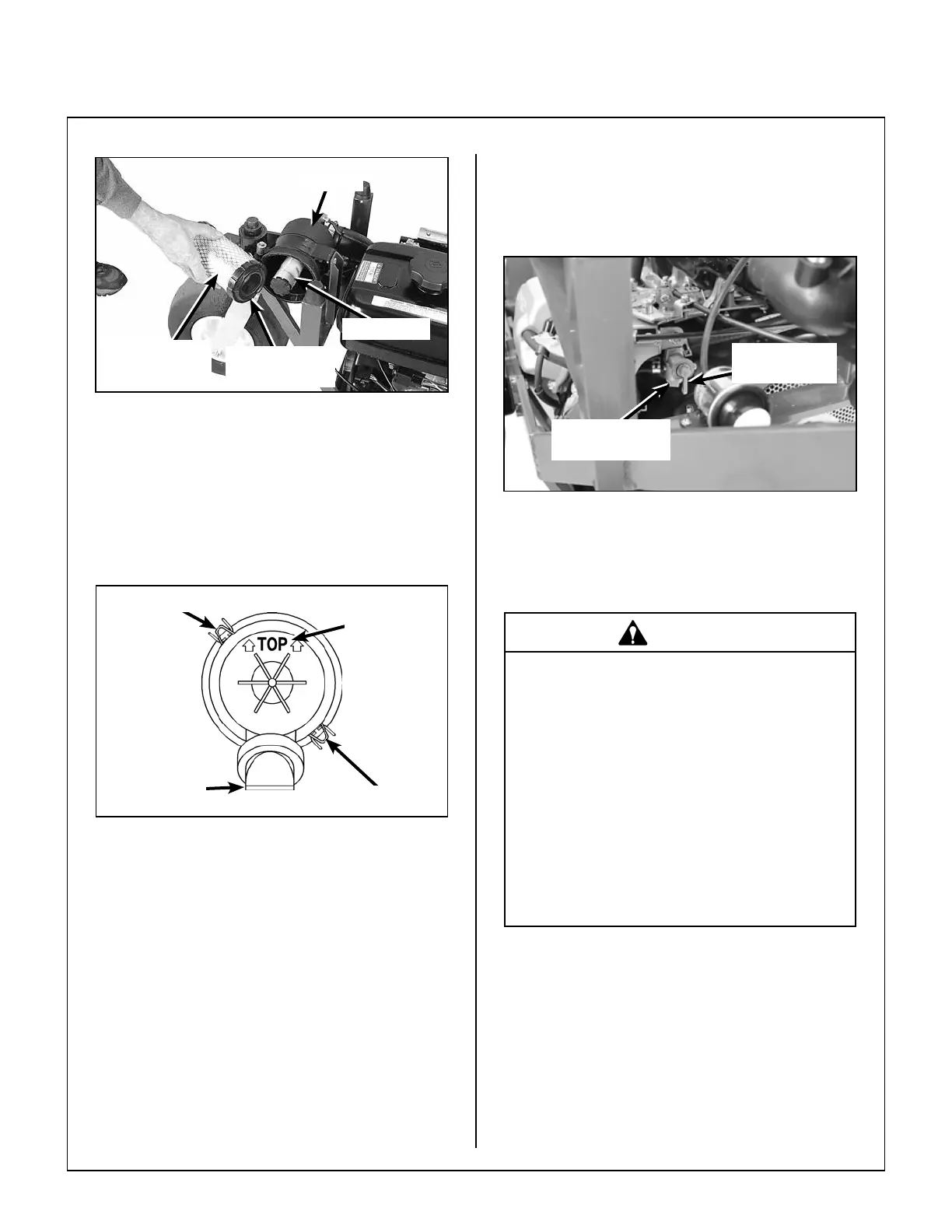

Air Filter Element Replacement
10. Install the cover with the word “TOP” properly
oriented to the top of the canister. Give the
cover a slight twist as it reaches the canister to
make sure the tab inside the cover goes into a
slot, otherwise the cover will not t properly.
Make sure both the top and bottom cover
latches are securing the cover in place.
Dust Ejection
Valve
Cover Latch
Cover Latch
Orient to Top
of Canister
Proper Orientation of Air Cleaner Cover
11 Check the air intake hose for cuts, nicks, cracks,
etc., and the hose clamps for tightness.
12. Reset the air lter restriction gauge (press but-
ton on the end of the indicator).
Fuel Filter
Clean and inspect the fuel lter screen after every
50 hours of service. Replace if damaged. Service
the fuel lter as follows:
Fuel Shut-Off
Valve
Fuel Filter and
Sediment Bowl
Fuel Filter and Fuel Shut-off Valve Location
IMPORTANT: Service the fuel lter screen only in a
clean area where the fuel lter components will not
be contaminated by any dust and dirt.
DANGER
Gasoline is extremely ammable and can
be highly explosive. To minimize danger:
• Use an approved fuel container for gas-
oline.
• DO NOT allow open ames or sparks
while performing maintenance or refuel-
ing; DO NOT smoke while working with
fuel.
• Wipe up spilled gasoline immediately and
completely.
1. Close the fuel shut-off valve.
2. Loosen sediment bowl and remove lter screen
and gasket. Replace lter screen if damaged.
3. Remove any sediment, wipe clean and reinstall
assembly.
4. Open the fuel shut-off valve.
