Walker MS - Transmission Lockout Levers; Hourmeter; Light Switch (for Optional Lights)

Operating Instructions
27
Transmission Lockout Levers
The transmission lockout levers disengage the hy-
drostatic transmissions. By lifting the lever on top
of the transmission and locking it into place with the
lockout cam, the hydrostatic transmissions are re-
leased to permit freewheeling. By releasing the cam
and lowering the lever, the transmissions are en-
gaged for normal operation. The transmission lever
in the LOCKOUT position is used to enable moving
the machine without the engine running (e.g., for
service). Refer to TRANSMISSION LOCKOUT in
this section for operating instructions.
NOTE: The transmission plunger on the side of the
transmission case (activated by the LOCKOUT LE-
VER) must be completely released during operation
of the mower, otherwise operation of the transmis-
sion will be erratic.
Lockout
Levers
Transmission
Plunger

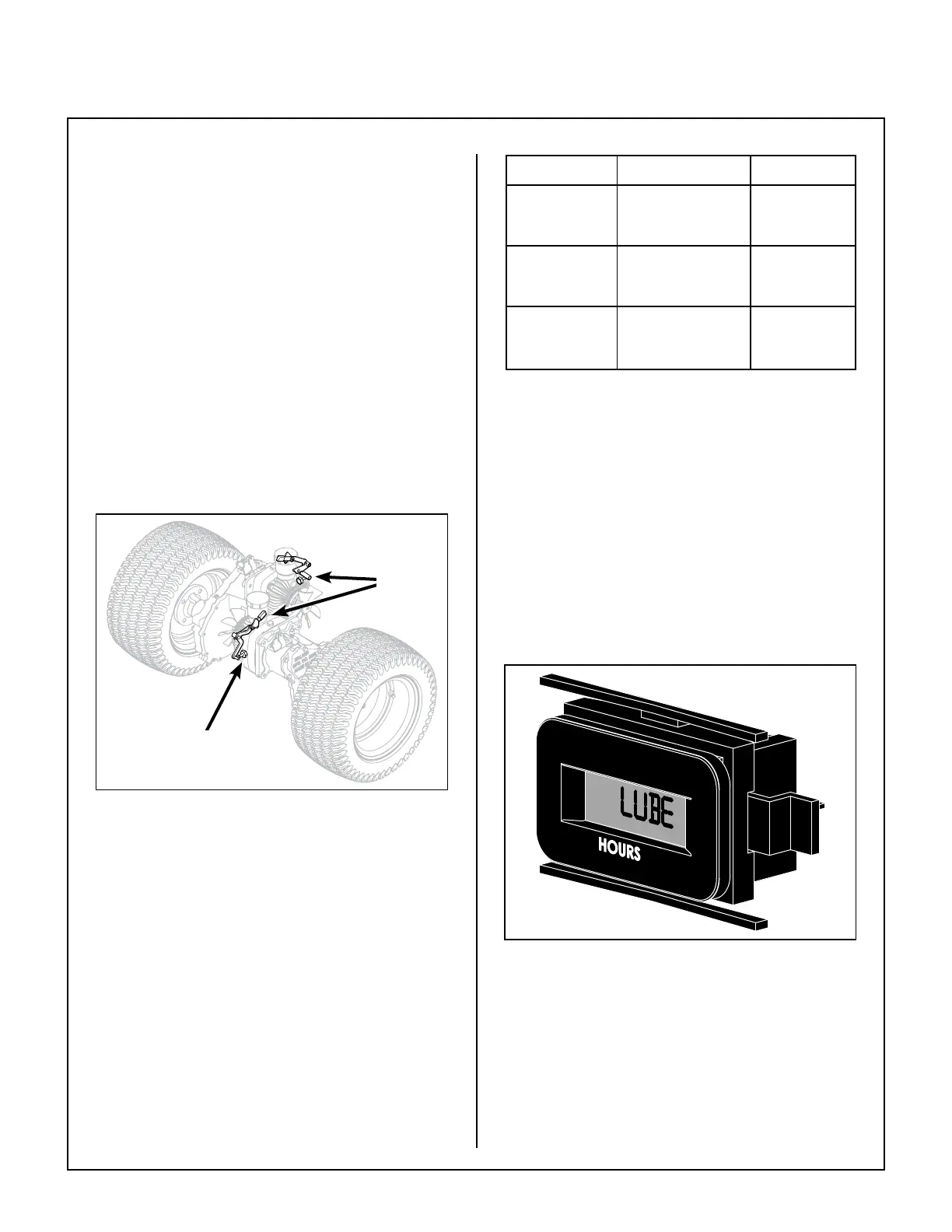

Lockout Lever Location
Hourmeter
The hourmeter, which is located on the left front of
the body, displays operating time accumulated
while the ignition switch is in the ON position.
The hourmeter provides maintenance reminders af-
ter certain hours of operation. The hourmeter screen
will start ashing the reminder one hour prior to the
recommended interval and will continue until one
hour after the recommended interval (two hours).
The hourmeter does not have a manual reset
function.
Procedure Interval* Reminder
Oil Change
(Break-In)**
4-6 Hours
C
H
G
OIL
Lubricate
and Check
Levels
24-26 Hours
LUBE
Oil Change 49-51 Hours***
C
H
G
OIL
* These intervals reect the actual time that the
reminder will ash (one hour prior to and one
hour after the recommended interval).
** This reminder is only used one time.
*** In normal operating conditions, oil changes in
100-hour intervals are acceptable. Walker and
the engine manufacturers recommend engine
oil changes every 50 hours in extremely dirty or
dusty conditions or for units with less than 100
hours annual use.
NOTE: The blinking hour glass on the display
means that the meter is operating properly.
Hourmeter
Light Switch (For Optional Lights)
Operates headlights (when installed).
