Walker MS - Engine Belt

62
Maintenance Instructions REPLACING/REPAIRING
Engine Belt
1. To remove the engine belt:
a. Relax the belt by depressing the spring-
loaded idler arm.
b. Roll the belt off the compound pulley and
remove the belt.

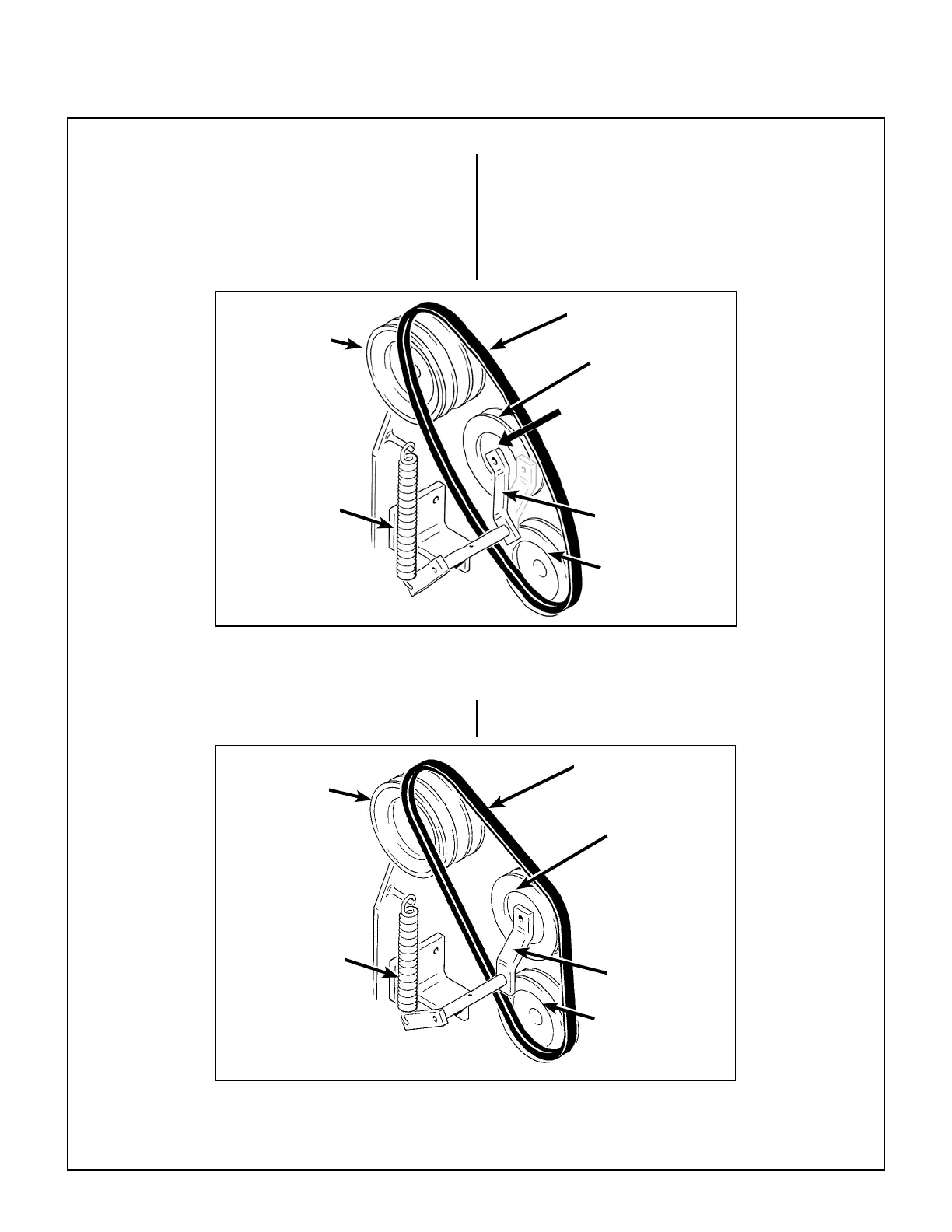

Engine Belt (Disengaged)
2. Reverse the removal procedure to replace the
engine belt.
Engine Belt (Engaged)
Belt Tightener
Arm
Compound
Pulley
Push Idler Pulley
to Relax Belt
Idler Pulley
Engine Pulley
Tension Spring
Engine Belt
Belt Tightener
Arm
Compound
Pulley
Idler Pulley
Engine Pulley
Tension Spring
Engine Belt
