Connections

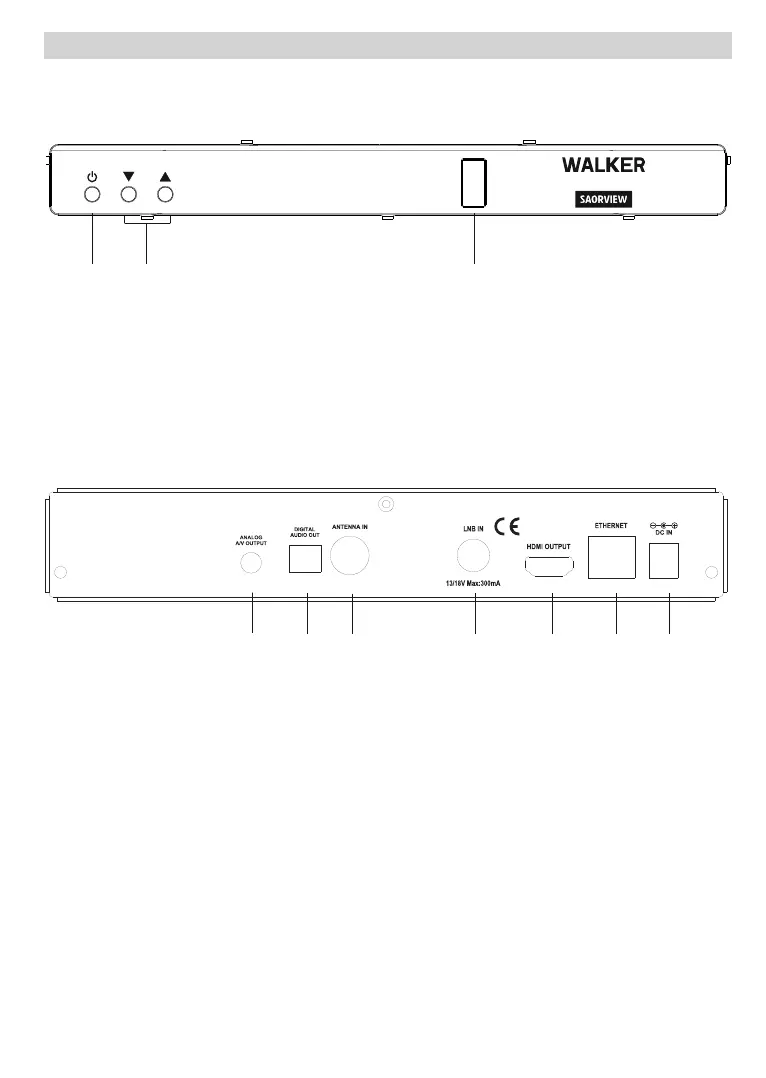

Front View
1. Standby / On
2. Programme -/+
3. USB Input: To connect USB storage devices for media playback and recording functions
Back View
1. Analog A/V Output: To connect the box to your TV’s analog A/V input (if available) by using an A/V cable
2. Digital Audio Out: To transfer the digital audio to a receiver via an optical audio cable
3. Antenna In: To connect the box to an antenna system by using a proper RF cable
4. LNB In: To connect the box to a satellite system by using a satellite cable
5. HDMI Output: To connect the box to your TV’s HDMI input (if available) by using HDMI connection cable
6. Ethernet: To connect the box to your home network via an Ethernet cable
7. Power Input: To provide power to the box (DC IN, 12V)
Make sure that you connect all cables and connections before you plug the units adaptor into the mains
supply. After you connect the unit to the mains supply, the LED light located on the front panel will illuminate
alternately in red and green and stay red in the end (Standby mode).
