6 Operation
6.1 General Information
This incomplete device may only be operated if the safety-related equipment is permanently effective and
not suspended during operation or altered in its intended effectiveness.
6.2 Operating Elements
6.3 Adjusting the Dosed Quantity
 Loosen fastening screw.
 Activate and hold external way-valve or dosing trigger.
 Use regulating screw to adjust the desired volume/quantity.
 Let the dosing trigger go.
 Tighten fastening screw.

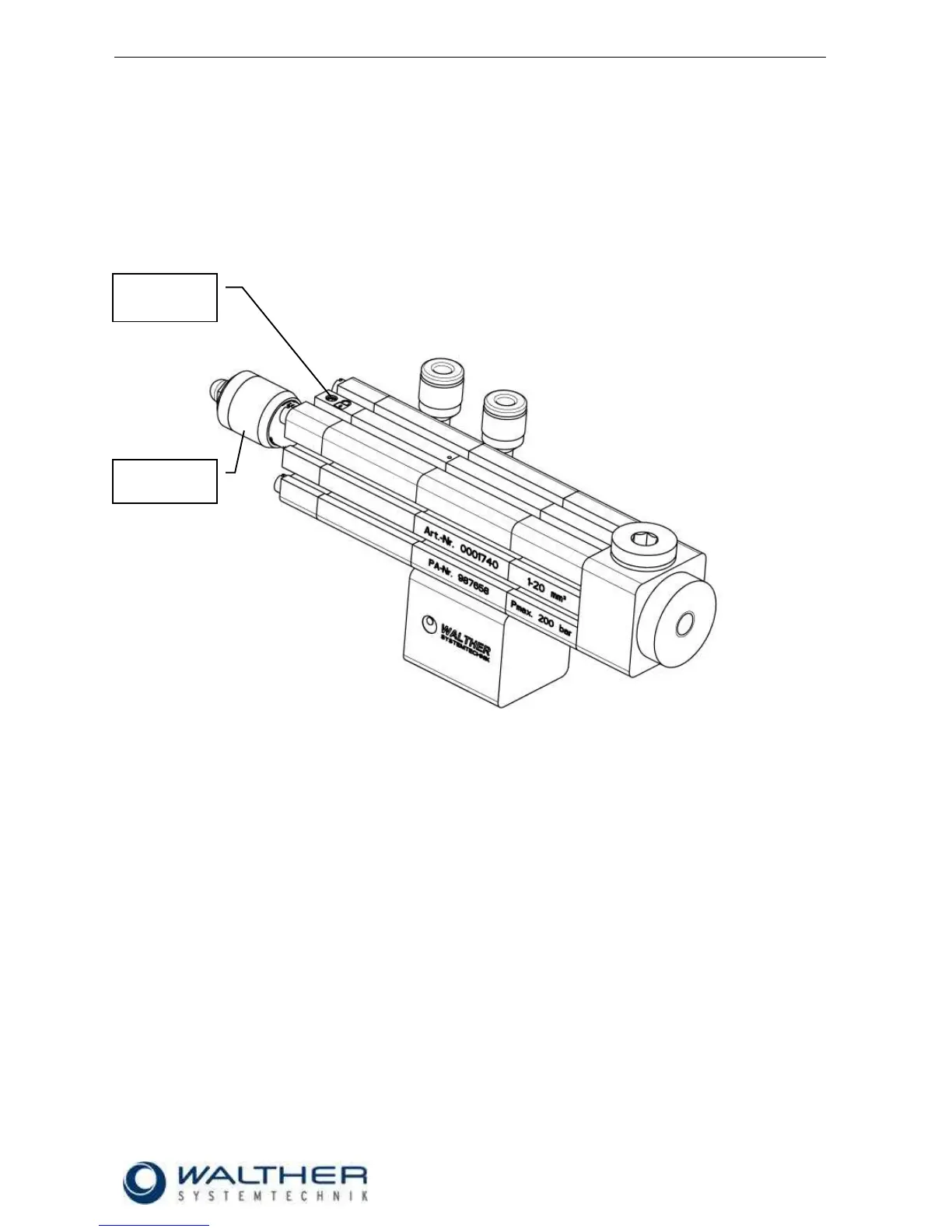

Regulating
screw
Fastening
screw
