Wang 2200 - Unpacking and Inspection

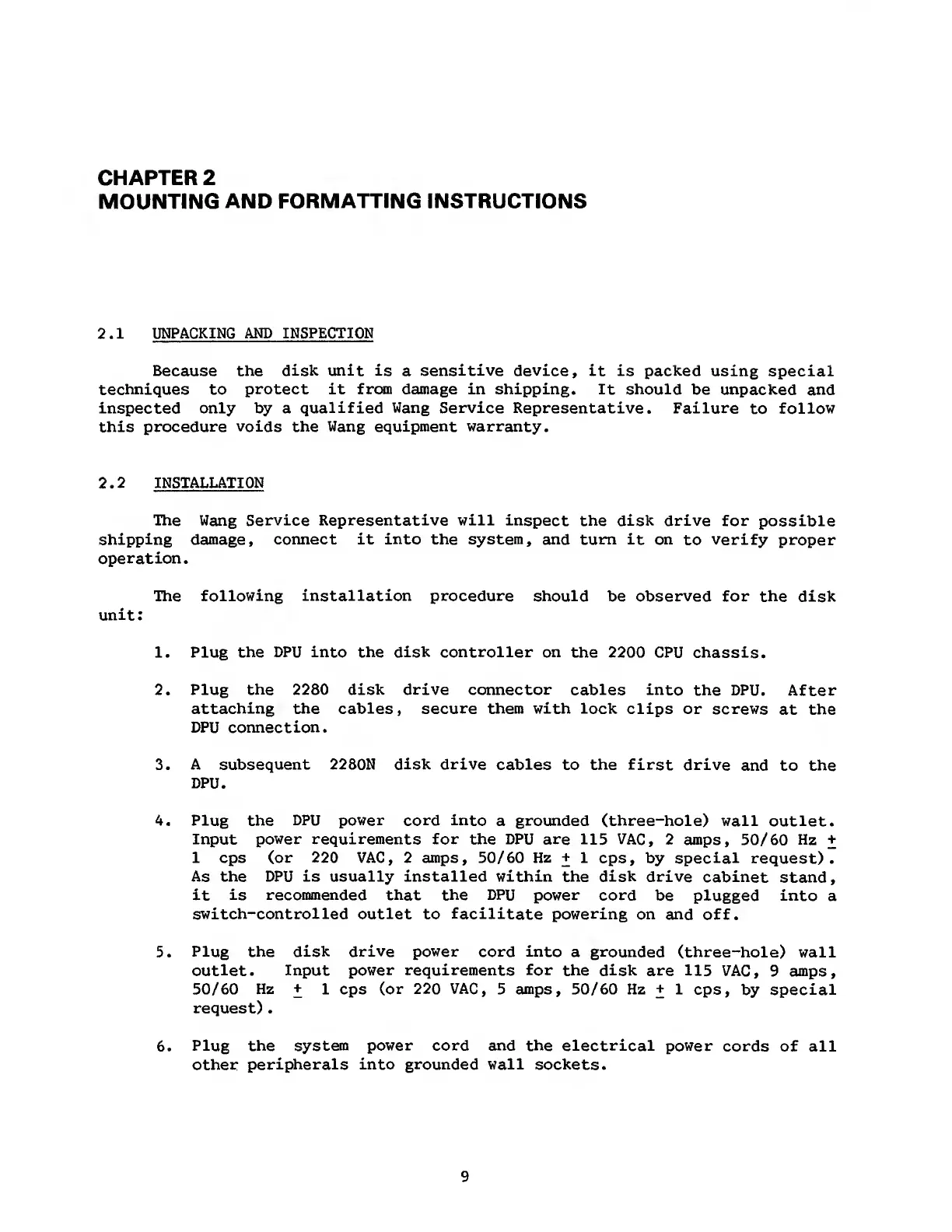

CHAPTER 2
MOUNTING
AND FORMATTING
INSTRUCTIONS
2.1
UNPACKING
AND INSPECTION
Because the disk
unit
is
a
sensitive device, it is packed
using special
techniques to
protect it from damage in shipping. It should
be unpacked
and
inspected only by a
qualified Wang Service
Representative. Failure
to
follow
this procedure
voids the Uang equipment warranty.
2.2 INSTALLATION
The Wang
Service Representative will
inspect the disk drive
for
possible
shipping
damage, connect it into the system, and turn it on
to
verify
proper
operation.
The following
installation
procedure should
be
observed
for the disk
unit:
1. Plug
the DPU into the disk controller on
the 2200 CPU
chassis.
2. Plug the 2280 disk drive connector cables into
the DPU.
After
attaching the cables, secure them with lock
clips or
screws
at
the
DPU connection.
3. A
subsequent 2280N disk drive
cables to the first drive
and to the
DPU.
4. Plug the
DPU power
cord into a grounded (three-hole)
wall outlet.
Input power requirements for the DPU
are 115 VAC, 2
amps, 50/60 Hz
+
1 cps
(or
220 VAC, 2 amps, 50/60 Hz
+
1
cps, by special
request).
As
the DPU is usually installed within
the disk drive
cabinet stand,
it
is recommended
that the
DPU
power cord
be plugged into
a
switch-controlled outlet
to
facilitate
powering on
and off.
5.
Plug the disk drive power cord into
a grounded (three-hole)
wall
outlet.
Input power requirements for
the disk are
115 VAC,
9 amps,
50/60 Hz
+
1 cps
(or 220 VAC,
5 amps, 50/60 Hz
+
1
cps,
by
special
request)
.
6.
Plug the system
power cord
and the electrical
power cords
of all
other
peripherals into grounded wall
sockets.
