Wangen XPRESS 64 - Seal Unit- Assembly; Disassembly

Chapter: Maintenance and repair
Seal unit- Assembly/ Disassembly
4-6

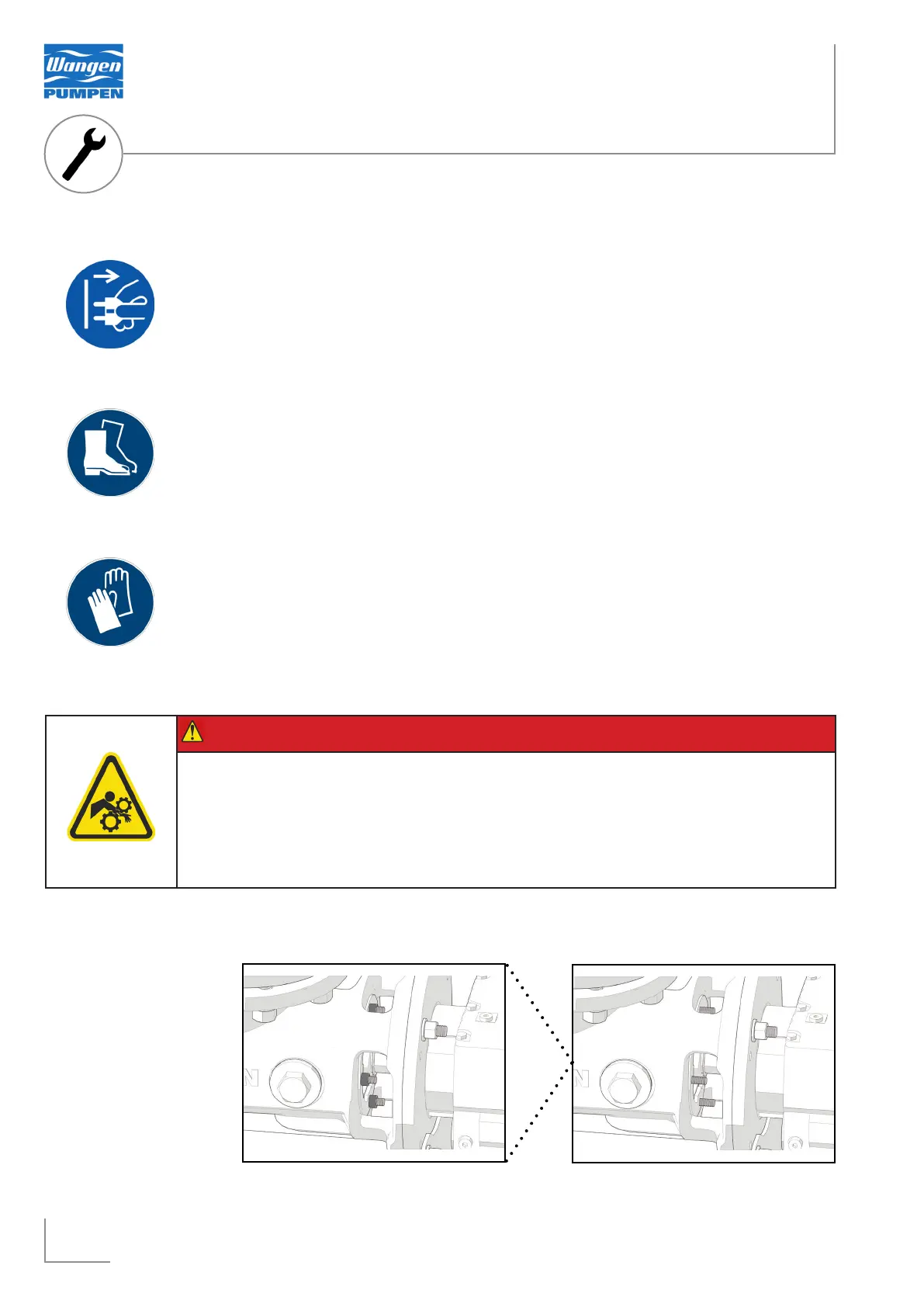

4.2 Seal unit- Assembly/ Disassembly
4.2.1 Preperation
4.2.2
1. Before starting work, Ensure the absence of voltge and secure it against
inadvertent reconnection.
2. Remove the screw connection (1192)(1193) at the tension ring (1191).
Personal protective equipment:
- Safety goggles
- Security shoes (steel toed)
- Gloves
Tools:
- Combination wrench for M8, M12 (1/4“), M16 (3/8“)
- Slotted screwdriver 6,5mm x150mm (2x)
- crane
- Round sling (1x)
4.2.3 Assembly/ Disassembly
DANGER!
Danger of beeing pulled in by accidental restarting the pump.
Death or serious bodily injury.
• Remove the connection for the power supply
• Lock the main switch
