Page
108
11.5.1
Ambient
Air Correction
The
combu
stion
air
is
dr
awn
from
outside,
the
refore
ambient
temperature
changes
can
influence the percentage of flue gas CO
2
.

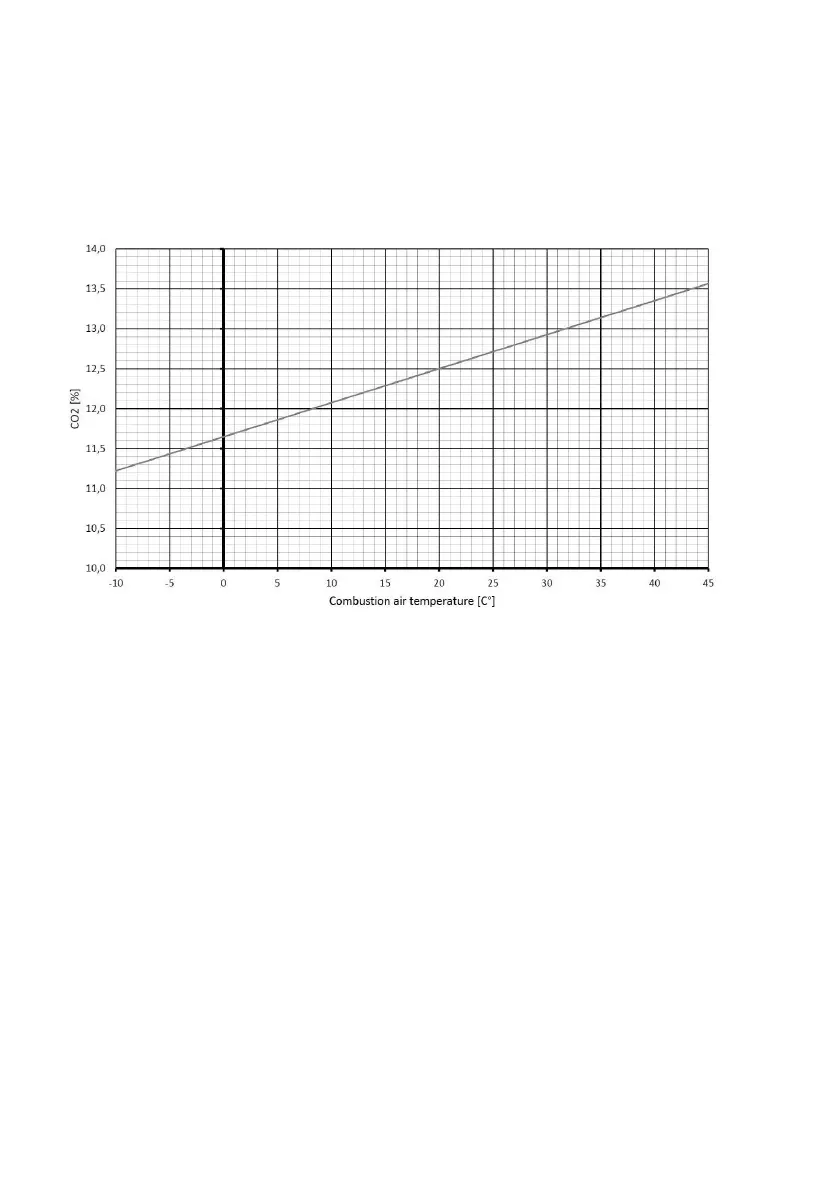

It is recommended to adjust the CO
2
according to the graph below:
For example, with an external air tempe
rature of 20°C, adjust the CO
2
to 12.5% (± 0.2%).
Perfector 8 Side:Front
108
110
