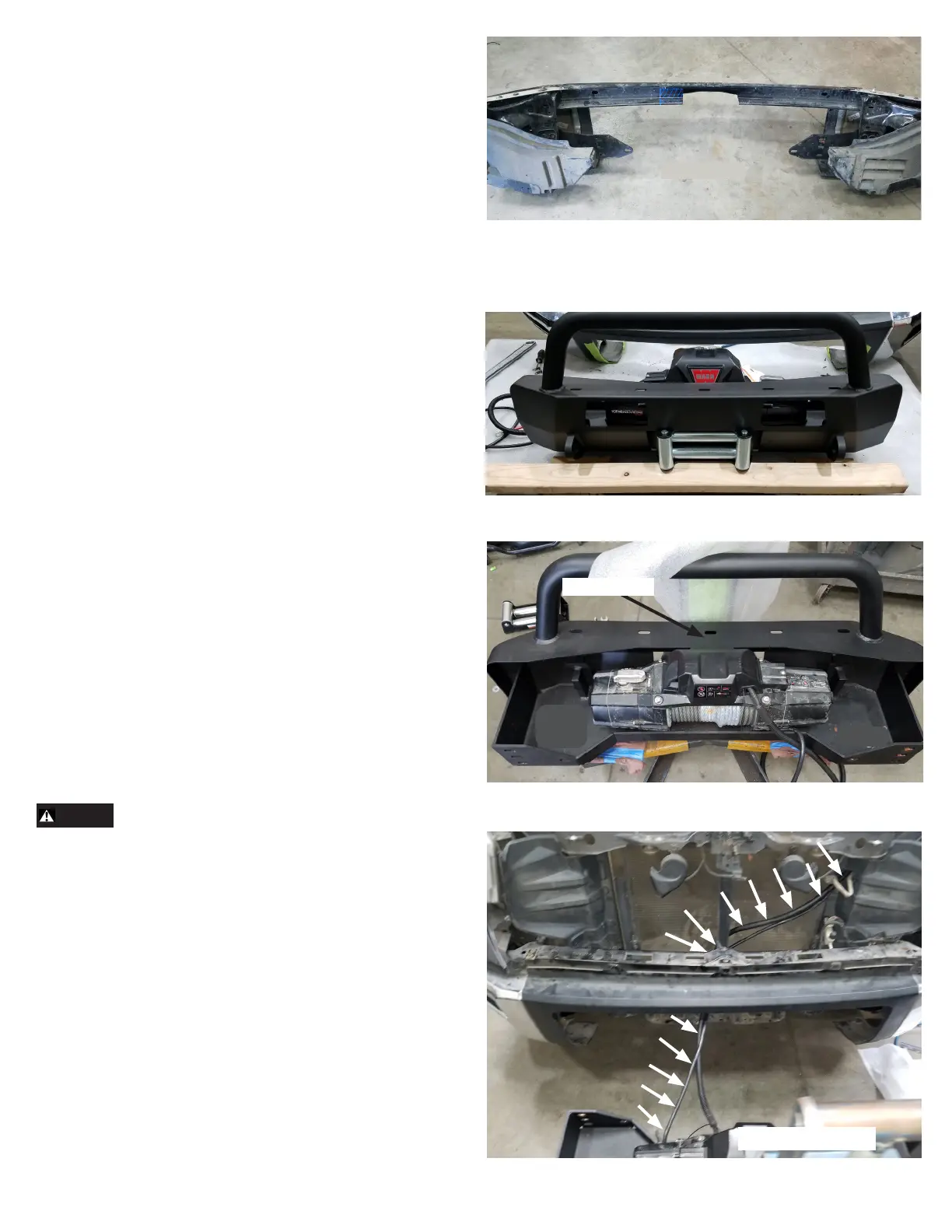

Figure 13
14. Reinstall the plastic fender liners using original hardware.
15. Mount the fairlead to the semi hidden weldment (3),
according to your winch mounting instructions.
16. Mount the winch to the semi hidden weldment according to
your winch mounting instructions
WARNING
Always use assistance when moving or lifting heavy parts.
17. With assistance, place bumper in position on vehicle. Do not
install nuts yet.
18. Before installing the semi hidden weldment/winch assembly,
route the winch power cables through the cutout in the
bumper and in front of the radiator.
Figure 15
Figure 16
Winch
Fairlead
Figure 14
To Next Page
