4. Remove three screws holding bumper to skid pan.
Optional: Remove skid pan to increase access for upcoming
installation.
5. From underneath the bumper, use a 14mm socket to remove
the four nuts (each side) holding the bumper structure to
the frame rails. Save nuts for reuse.
6. If equipped, disconnect harness from rear of fog lamps and
disconnect park sensor harness (both sides).
WARNING
Always use assistance when moving or lifting heavy parts.
6. Remove and set aside bumper.

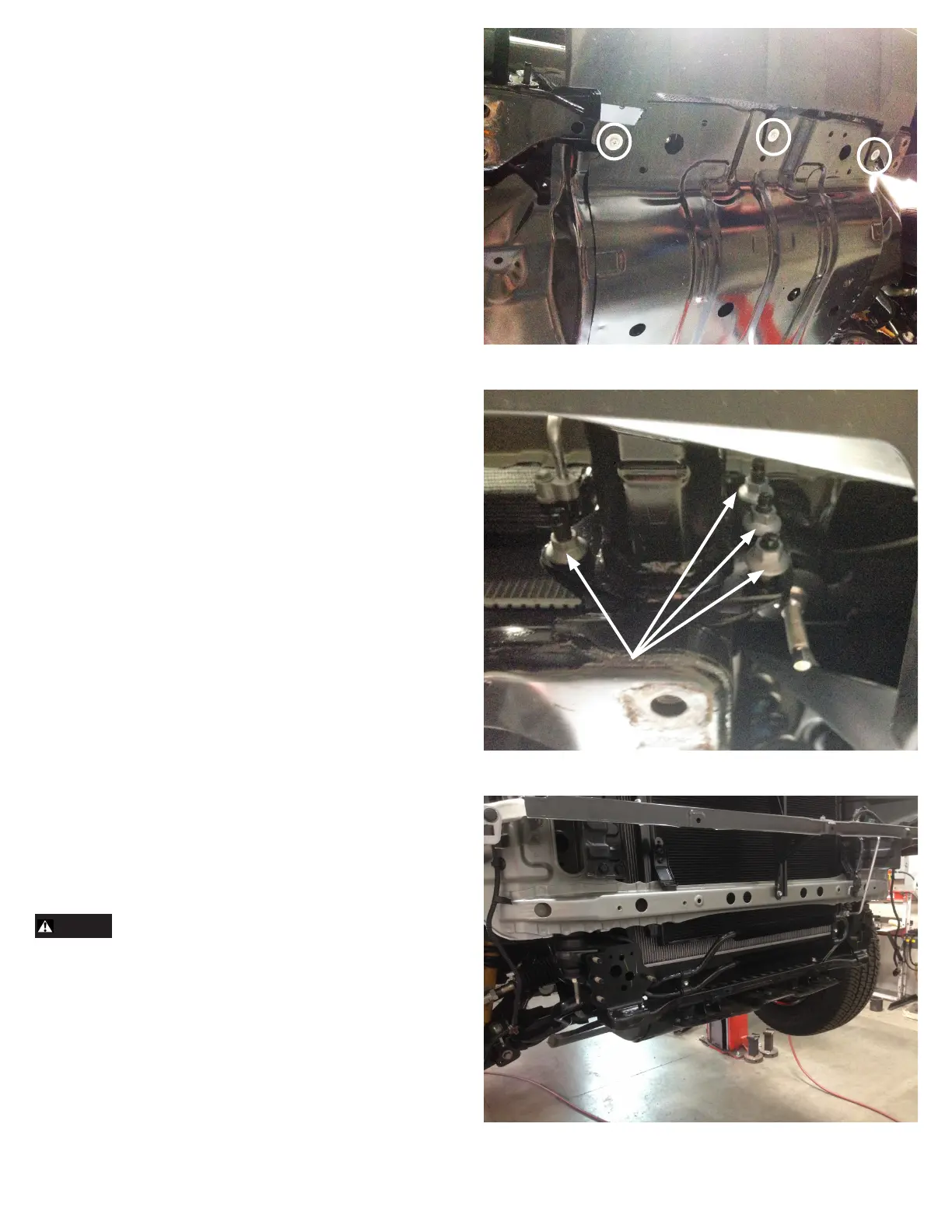

Figure 5
