Winch Installation to a fixed location- continued
To secure the winch, always use:
▫ A flat, secure mounting location at least 3/16 in. (4.8 mm) thick steel.
▫ 3/8 in. lockwasher x 3.
▫ 3/8-18 x 1in. long, hex head capscrew, Grade 5 or better x 3.
▫ Torque mounting bolts to 30-35 ft-lbs (41-47 Nm).
Bolt length may need to be longer that specified above depending upon the thickness of the material the
winch is mounted to.

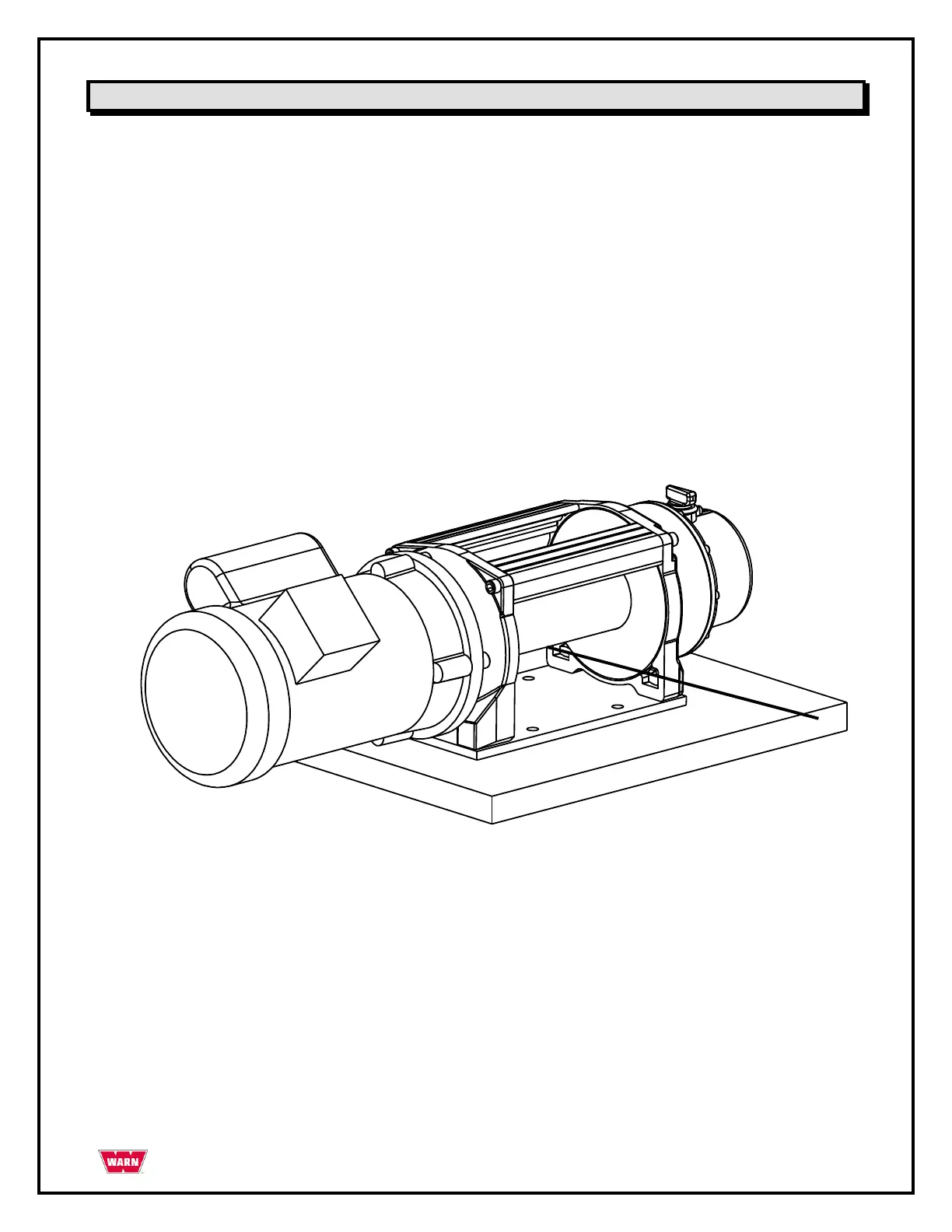

Acceptable Mounting Position
