PAGE 8 85366 Rev. A0
Winch Installation to fixed location
Failure to observe these instructions could lead to minor or moderate injury.
Always choose a mounting location that is sufficiently strong to withstand the loads you
intend to winch
The 3000ACI can be mounted to a fixed location by untilizing the mounting hole pattern for the winch
unit. First, choose a mounting location that is sufficiently strong enough to withstand the loads you
intend to winch.

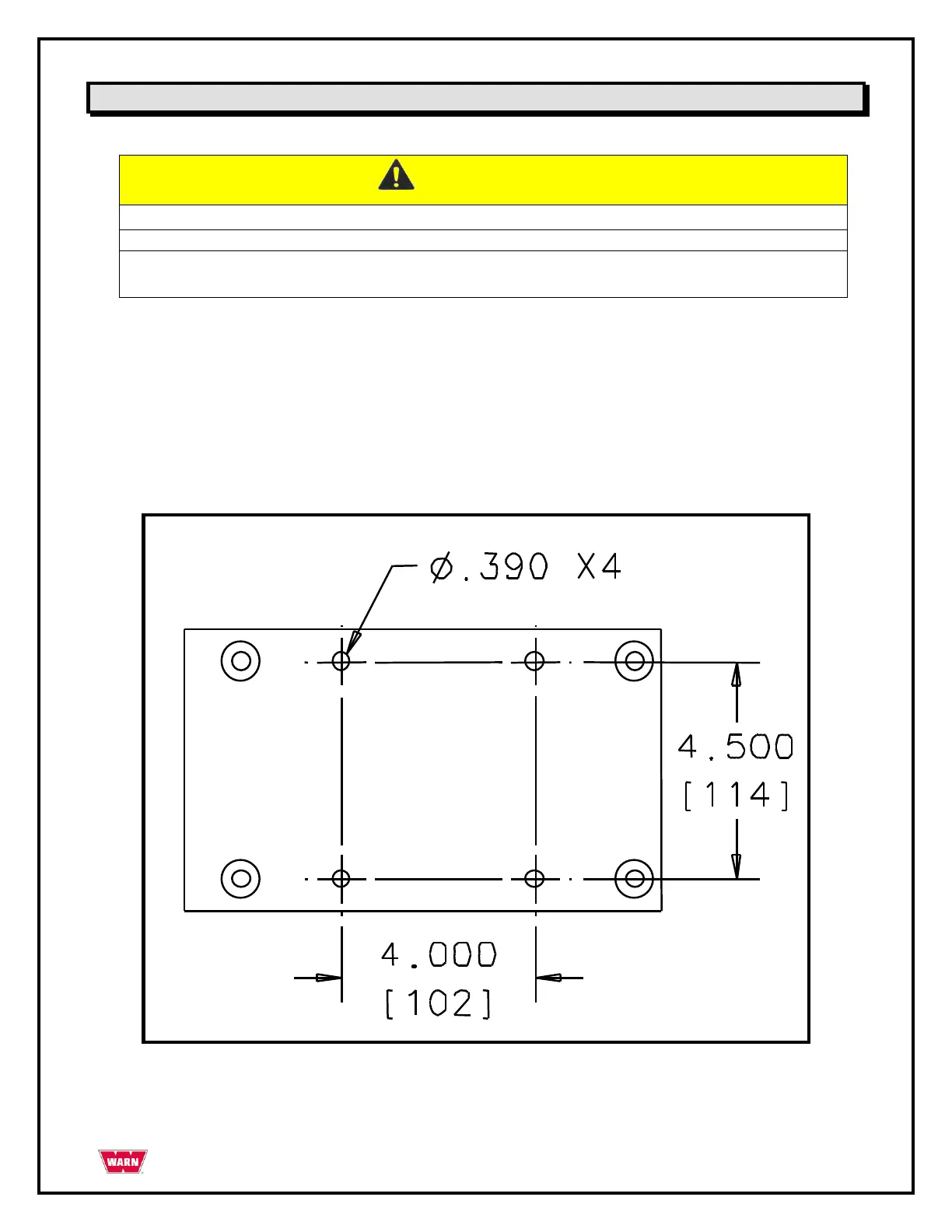

Next, drill 4 holes to the dimesions specified in the drawing below.
Mounting Plate Hole Pattern
