WARN INDUSTRIES PAGE 2 60178 C1
I. PARTS LIST
Part Number Description Qty
60177 Winch Mounting Plate 1
32629 Fairlead Mounting strap 1
1322 1/4-20 Hex Nut 16
1321 1/4 Lock washer 16
65099 1/4-20 x 1 1/8 U-bolt 4
21446 1/4-20 x 1 U-bolt 4
II. INSTALLATION
1. Unplug wiring harness for the front lights that runs
along the frame tube see Figure 1. This wiring needs
to be routed to the other side of the support tube.
When the mounting plate is placed into position make
sure that the plate does not pinch the wiring harness.
2. The winch must be attached to the mounting plate
before it is placed into position. Use the 4, 5/16-18 x
1 hex head cap screws and lock washers that came
with the winch. NOTE: Motor wires no.1 and no.2
should be attached to the winch before it is placed
into position see figures 4 and 5. Do not forget to put
the motor terminal boots onto the wires when install-
ing the wires onto the motor.

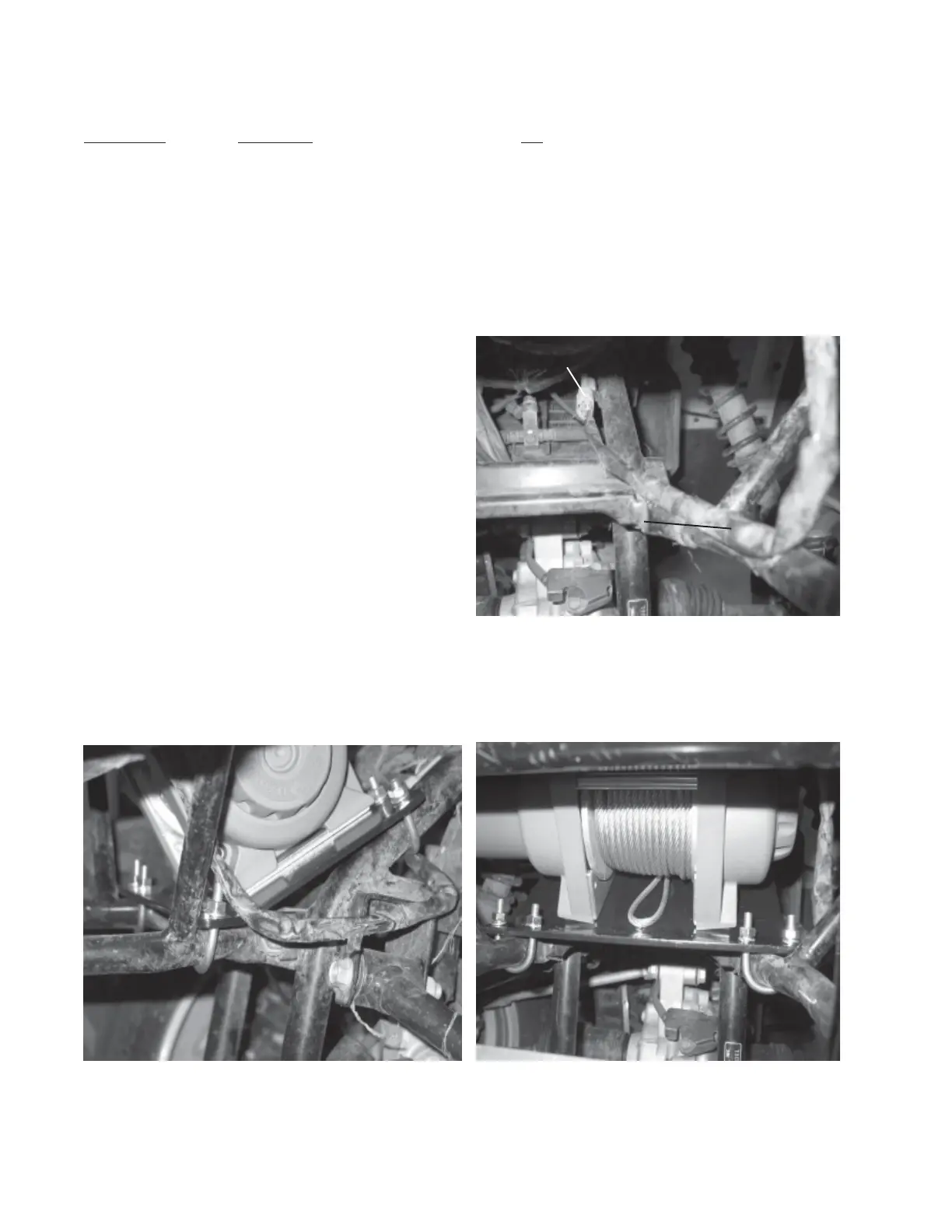

Figure 1
Figure 2 Figure 3
UNPLUG
RE-ROUTE WIRING
To Next Page
