WARN INDUSTRIES PAGE 3 84855A2
II. Tools Required
• Ratchet
• Sockets: 10mm, 12mm, 13mm, 7/16”
• Wrenches: 10mm, 13mm, (2) 14mm, 3/8”, 7/16”
• Screwdrivers: Slotted, Phillips
• Allen Wrenches: 1/8”, 5mm
• Sidecutters or Saw
• Voltmeter or Test Light
• Electric Tape

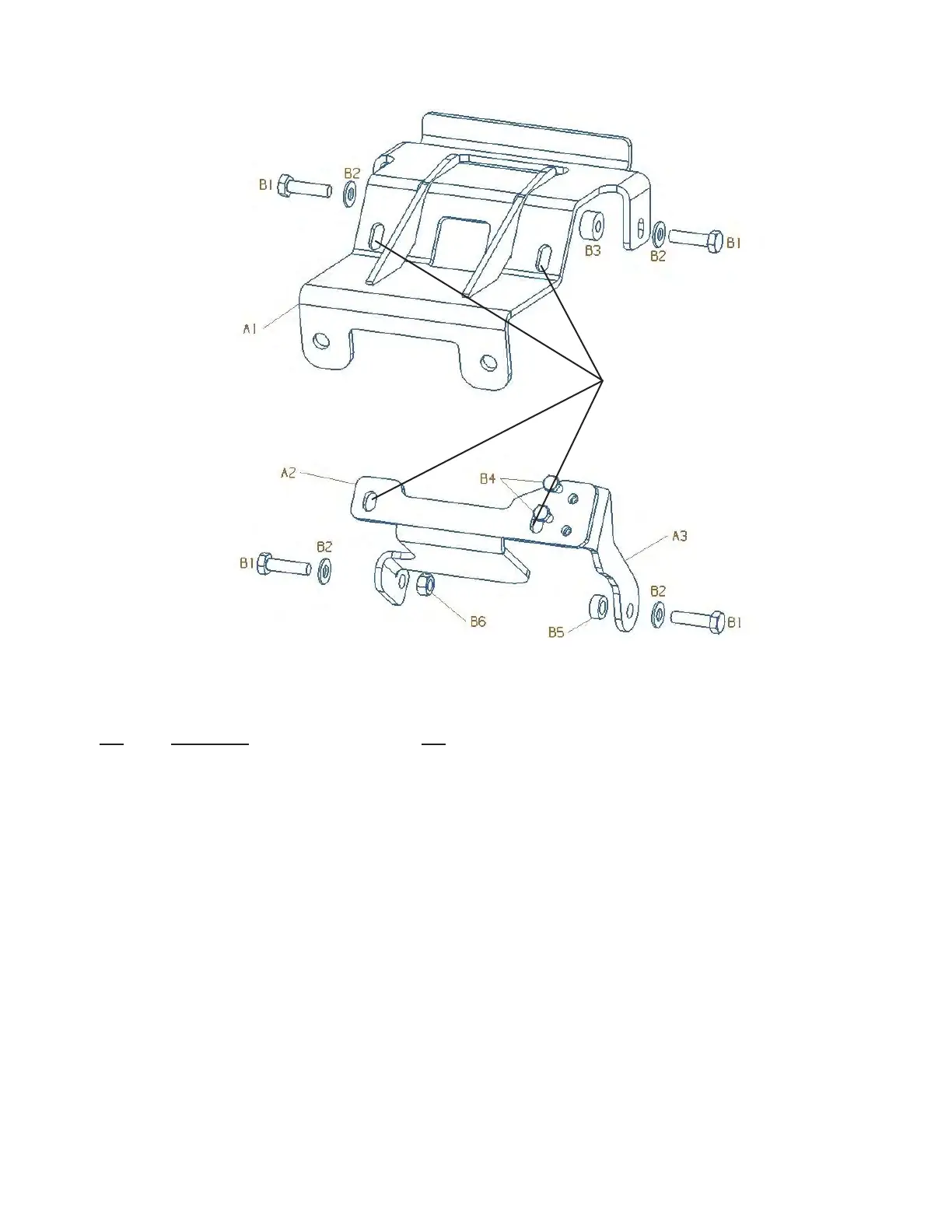

I. Parts List
Ref Description Qty
A1 Upper Mounting Bracket 1
A2 Lower Mounting Bracket 1
A3 Side Mounting Bracket 1
B1 8mm-1.25 x 30mm Bolt 4
B2 8mm Flat Washer 8
B3 9.5mm (3/8”) Spacer 2
B4 6mm - 1.00 x 12mm Bolt 2
B5 6.3mm (1/4”) Spacer 1
B6 8mm-1.25 Lock Nut 1
1/4-20 x 1” x 1 3/4” U-bolt 2
1/4-20 Lock Nut 4
1/4 Flat Washer 4
Winch Mounting Slots
