Warn 84704 - Rancher TRX420 Installation

WARN INDUSTRIES PAGE 4 84855A2
III. Rancher TRX420 Installation
1. Begin by removing the two plastic rivets on each
side of the front plastic fascia, gure 1. Use a large
screw driver to carefully remove the center rivet.
After removing the center rivet, remove the rivet
housing. Save the fasteners as they will be used
to reinstall the front plastic fascia.
2. Remove the two side 6mm bolts securing the front
fascia, gure 2. Save the fasteners as they will be
used later to reinstall the front fascia. Remove the
front plastic fascia.
3. Remove the four 6mm bolts that secure the front
skid plate, gure 3. Save the fasteners as they will
be reinstalled later.

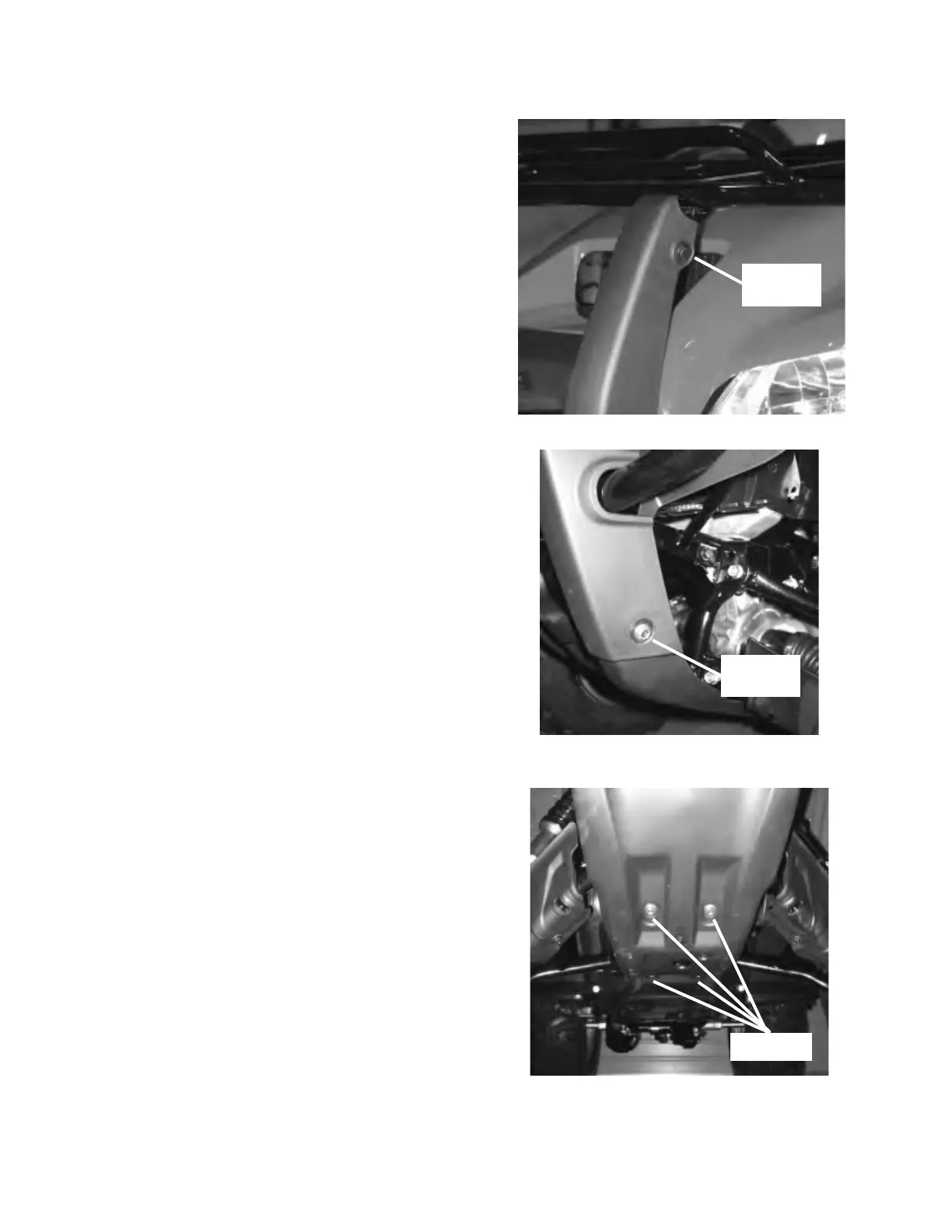

Figure 2 Remove Front Fascia
Figure 1 Remove the Two Plastic Rivets
Figure 3 Front Skid Plate Bolts
Remove
(both sides)
Remove
(both sides)
Remove
