4. Remove the two 6mm bolts that attach the front
bumper to the plastic headlight assembly, gure 4.
Save the fasteners as they will be used to reinstall
the front bumper.
5. Remove the two top 8mm bumper bolts that
attach the front bumper to the front rack, gure 5.
Save the fasteners as they will be used to reinstall
the front bumper.
6. Remove the four remaining bumper bolts that
attach the bumper to the vehicle frame, gure 6.
Remove the bumper from the vehicle at this time.

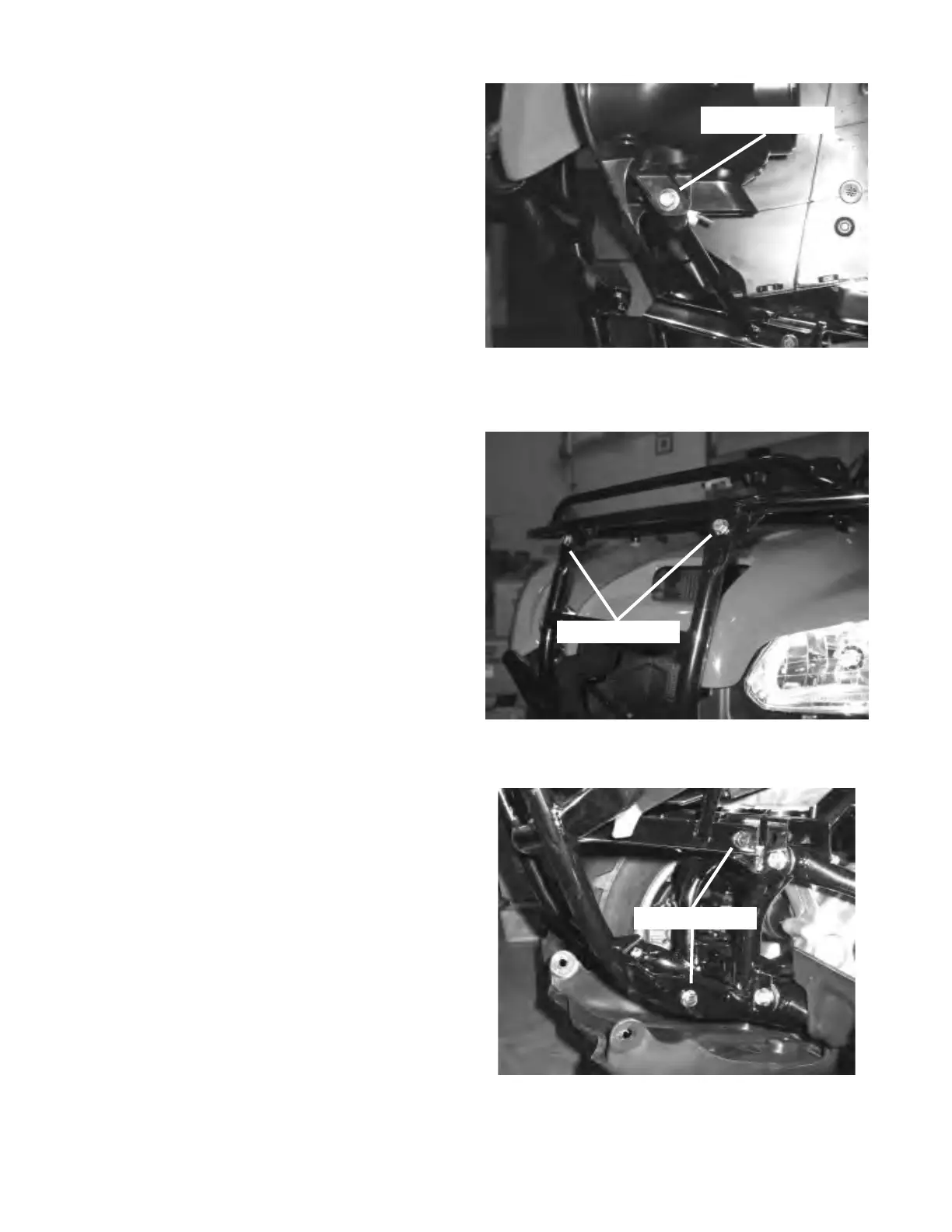

Figure 5 Remove Top Bumper Bolts
Figure 4 Front Bumper Bolts
Figure 6 Remove Bumper Bolts
Remove (both sides)
Remove (both sides)
Remove (both sides)
