Warn 84704 - Remove Radiator Panel and Mount Winch

WARN INDUSTRIES PAGE 6 84855A2
7. Depress the side tabs and remove the plastic
radiator panel from the vehicle, gure 7. This
panel will be reinstalled later.
8. Attach the winch to the lower mounting bracket
(A2), gure 8. Use the two 8mm-1.25 x 20mm
bolts and lock washers supplied with the winch,
and place a 8mm at washer (B2) between each
lock washer and the lower mounting bracket. Do
not tighten the bolts at this time.
Note: The end loop of the wire rope must be acces-
sible from the top of the drum. If necessary,
put the winch in freespool and rotate the drum
so that the wire rope end is no longer under-
neath the bracket.
9. Place the winch and lower mounting bracket
assembly into position in the front bumper,
gure 9.

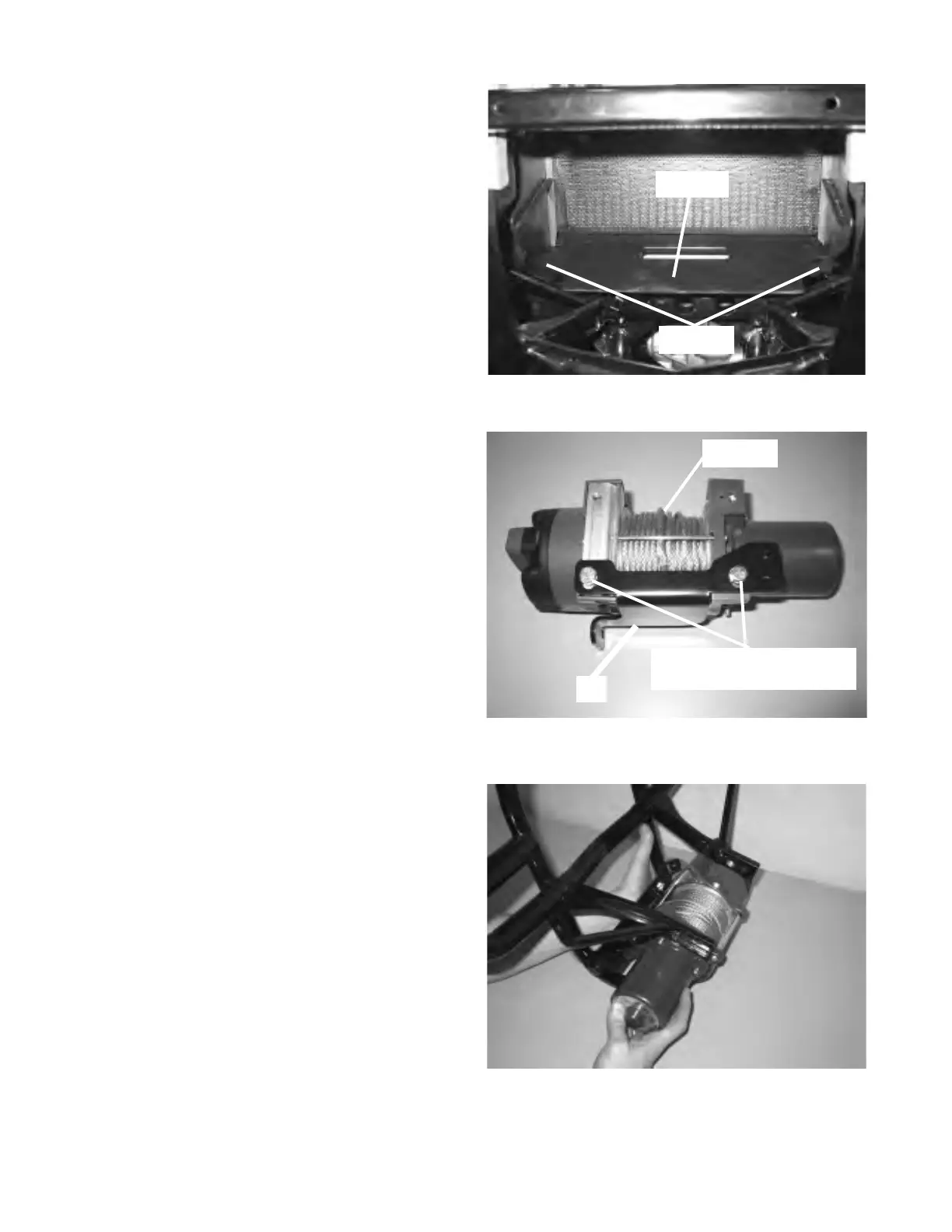

Figure 9 Place Winch in Bumper
Figure 7 Remove Plastic Radiator Panel
Figure 8 Attach Winch onto Lower Mounting Bracket
Remove
Side Tabs
A2
Top of Drum
8mm Winch Bolts,
Lock Washers, and Flat Washers
