WARN INDUSTRIES PAGE 7 84855A2
10. Place front bumper and loosely positioned winch
assembly back onto the vehicle frame, gure
10. Reinstall the two top bumper bolts that were
removed in step 5. Do not tighten at this time.
11. Place the upper mounting bracket (A1) onto
the vehicle frame, gure 11. Fasten the upper
mounting bracket to the winch with two 8mm-1.25
x 20mm bolts and lock washers supplied with
the winch. Place a provided 8mm at washer
(B2) between each lock washer and the upper
mounting bracket. Do not tighten at this time.
12. Route the wire rope between the upper and lower
mounting brackets (A1) & (A2), so that the end
loop is visible from the front, gure 11.
13. Install two of the supplied 8mm-1.25 x 30mm bolts
(B1) and at washers (B2) into the middle bumper
mounting location. Place the supplied spacer
(B3) into position between the ATV frame and the
winch mounting bracket tab, gure 12. Do not
tighten at this time.

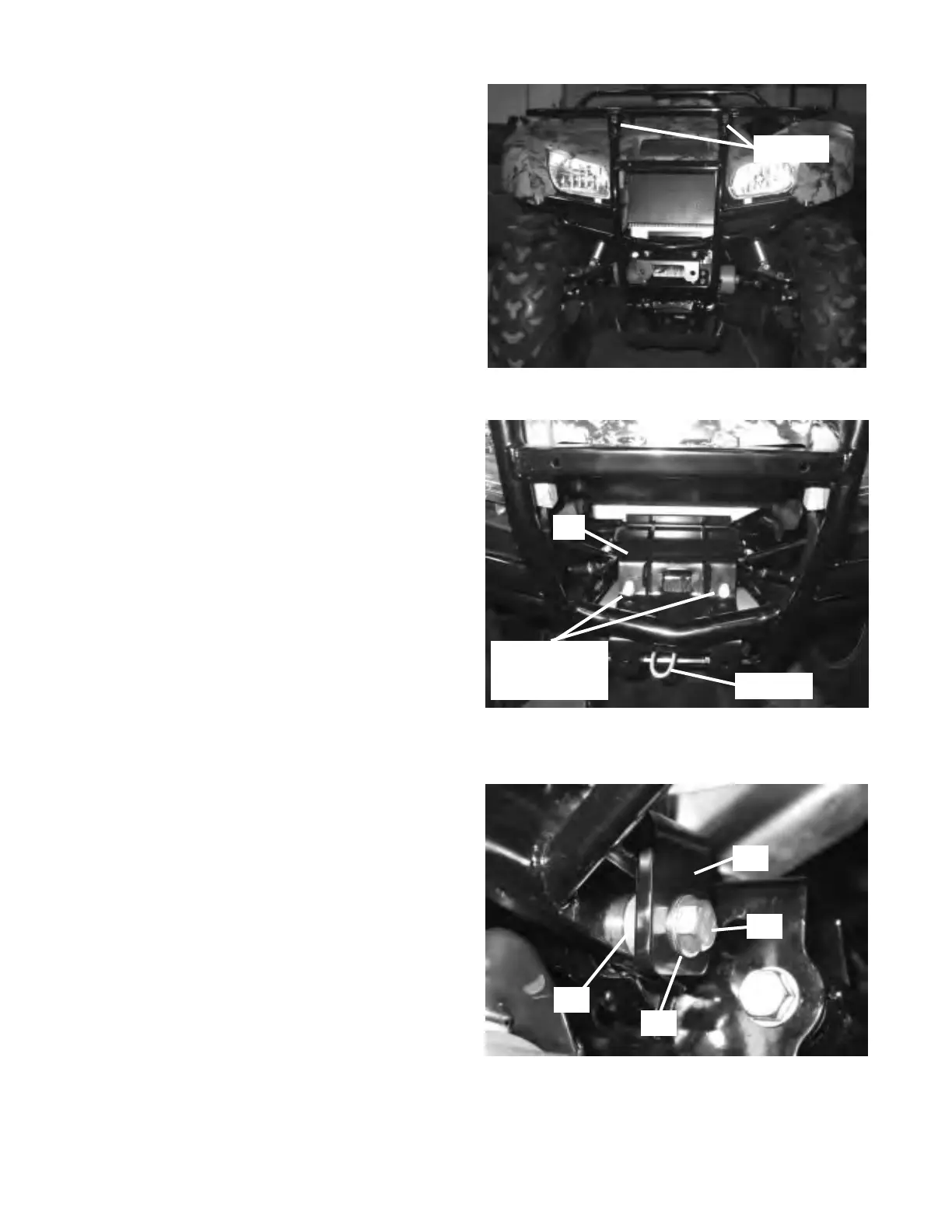

Figure 12 Bolt and Spacer Location
Figure 11 Upper Mounting Bracket Installation
Figure 10 Place Bumper Back onto Vehicle
Reinstall
End Loop
A1
A1
B3
B2
B1
8mm Winch Bolts,
Lock Washers, and
Flat Washers
To Next Page
