Warn U2500 - Armature Replacement; Motor Replacement

10

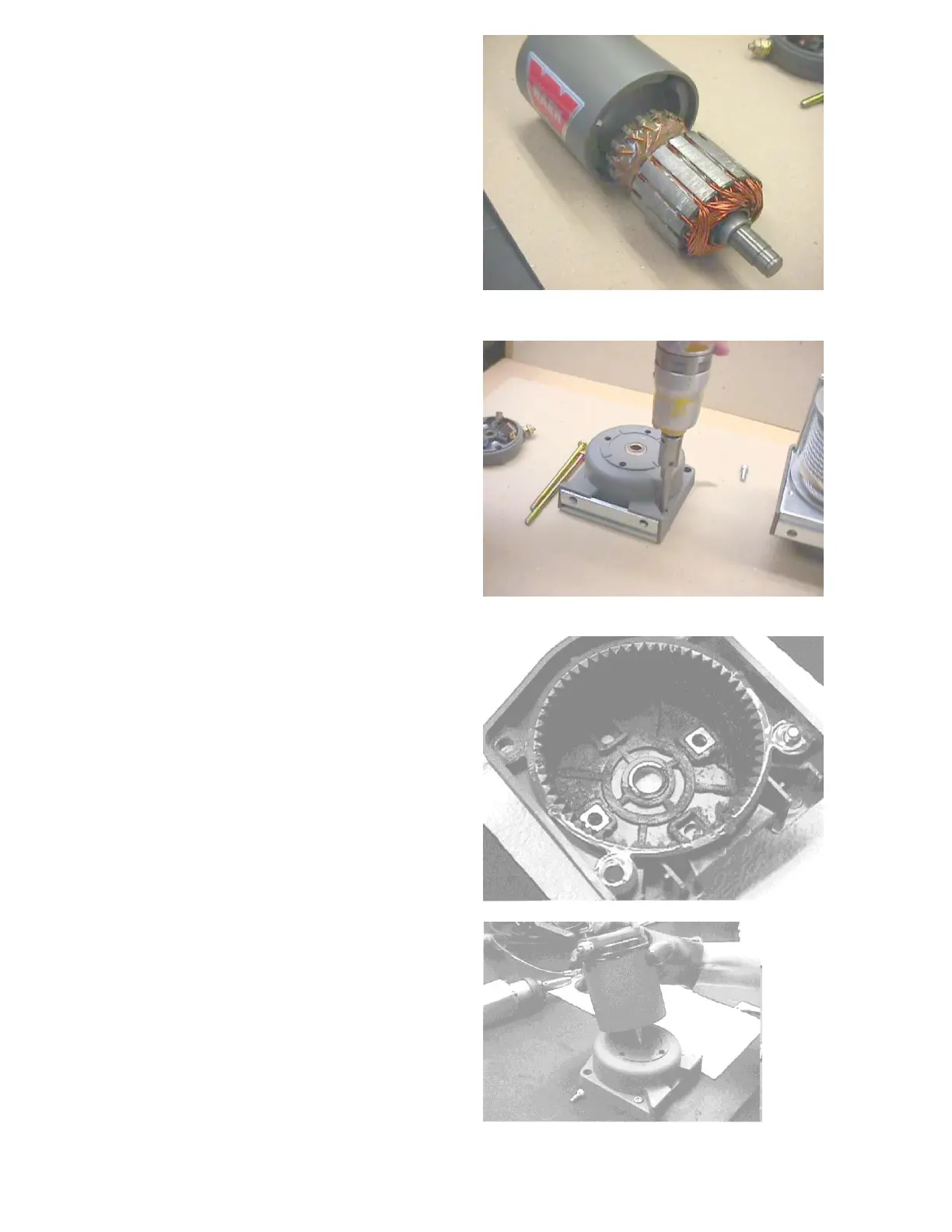

 ARMATURE REPLACEMENT:
 To replace the armature, it is slid in from
the bottom of the casing, which is
identified by the magnets closer to one end
of the case. If there is resistance to the
armature placement, it is the wrong
direction.
 Inspect housing closely, as some motor
housings can be damaged by excessive
heat or damaged from a hit.
 MOTOR REPLACEMENT:
 Motor cannot be installed until the drum
support plate is removed and 1
st
stage
planetary gear with sun gear, or brake.
The two motor bolt nuts will be found
inside the housing.
.
 Inspect housing, as some housings can be
damaged by excessive dirt/mud or
damaged from a hit.
.
 Check that the brass bushing and thin
washer are in place, position the motor
shaft through the bushing and washer.
