 CLUTCH HOUSING
REASSEMBLY:

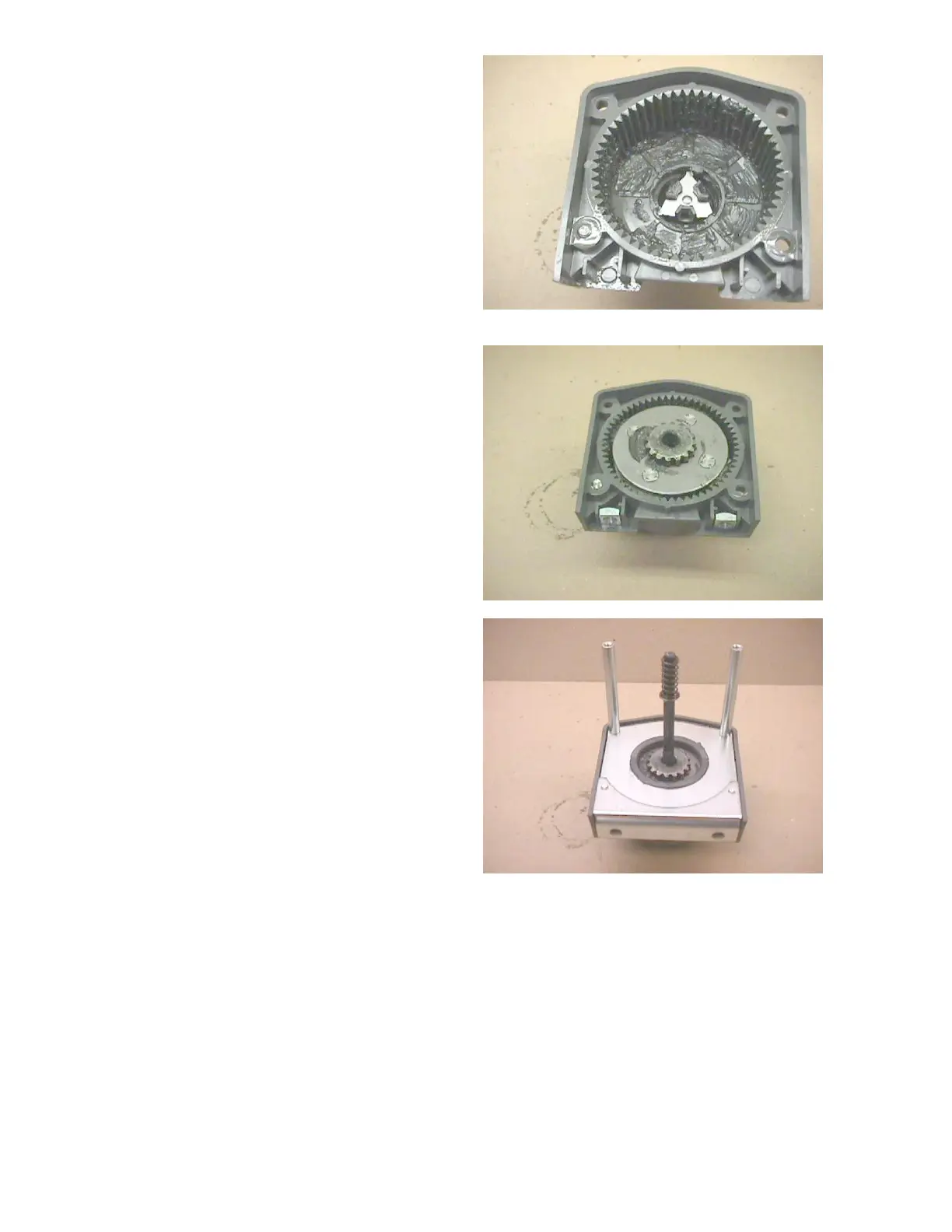

 Turn the clutch dial to the free spool
position, insert cam follower button side
up. Dial clutch to engage position.
 Grease housing and replace single sun
gear, second stage planetary greasing the
tall sun gear, replace 3
rd
stage planetary,
greasing the drum sun gear.
 Place drive shaft circle retaining ring up,
through all gears rotating the shaft forward
and reverse to align all gears, remove shaft
and set aside.
 Replace mounting nuts, flat side out.
 Place drum support plate on top of 3
rd
stage planetary assembly, place the cable
protector on bottom of drum support plate.
Secure in place with the ¼-20 x ½ screws.
 Insert ¼-20 x 5/8 screw to the top hole and
thread tie rod to it, (snug). Same with the
second tie rod.
