Warn VR EVO - Control Module Removal; Remove Winch and Control Pack Assembly

103484A3
41 to 47 Nm (30-35 ft. lbs.)

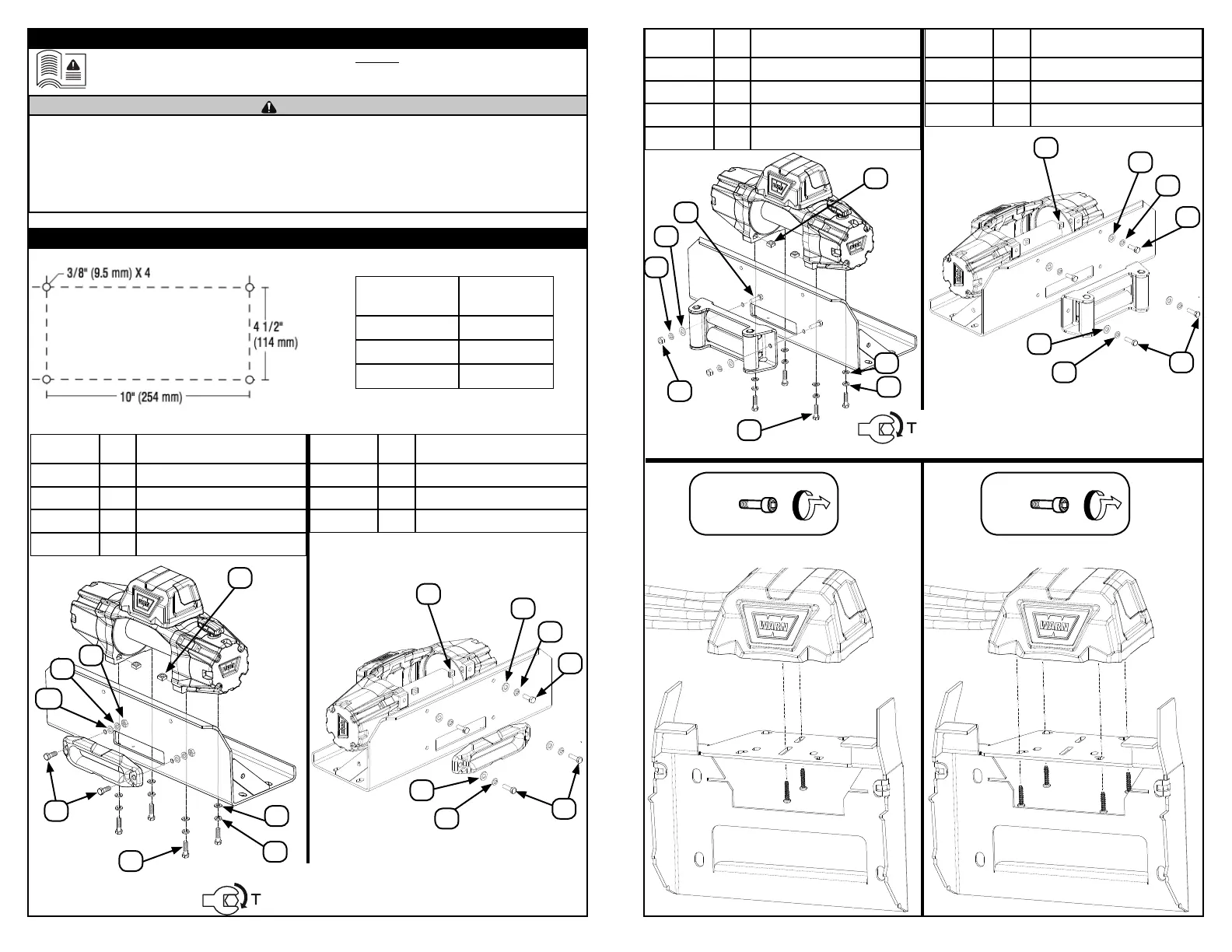

MOUNTING
• Always position fairlead with warning readily visible on top.
• Always use class 8.8 metric (grade 5) or better hardware.
• Never weld mounting bolts.
• Never use bolts that are too long.
• Always con rm required bolt length to ensure proper thread engagement.
• Always complete the winch installation and hook attachment before installing the wiring.
WARNING
Item Qty Description
A, B, C 4 M10
D 2 M10 x 30
E 2 M10 x 45
VR EVO
Always Read All Product Literature BEFORE installing product.
https://www.warn.com/manuals/index.jsp
Plate Thickness Bolt Length
7 mm (1/4”) 32 mm (1 1/4”)
10 mm (3/8”) 40 mm (1 5/8”)
13 mm (1/2”) 40 mm (1 5/8”)
E
B
A
C
D
Item Qty Description
A, B, C 4 M10
D 2 M10 x 30
E 2 M12 x 35
F, G, H 2 M12
A
C
D
B
H
E
G
F
G
F
Standard Hole Pattern
103484A3
41 to 47 Nm (30-35 ft. lbs.)
Item Qty Description
A, B, C 4 M10
D 2 M10 x 30
E 2 M10 x 40
A
D
C
H
E
G
F
E
B
A
C
D
G
F
Item Qty Description
A, B, C 4 M10
D 2 M10 x 30
E 2 M12 x 35
F, G, H 2 M12
B
x2 x4
