s1fmdl1sm-REV1207 Model S1F Metallic Page 18
35
31
32
33
31
35
34
SOLENOID SHIFTED AIR VALVE PARTS LIST
(Includes all items used on Composite Repair Parts List except as shown)
ITEM PART NUMBER DESCRIPTION QTY
31 893-097-000 Solenoid Valve, NEMA4 1
32 219-001-000 Solenoid Coil, 24VDC 1
219-004-000 Solenoid Coil, 24VAC/12VDC 1
219-002-000 Solenoid Coil, 120VAC 1
219-003-000 Solenoid Coil, 240VAC 1
33 241-001-000 Connector, conduit 1
241-003-000 Conduit Connector with 1
Suppression Diode (DC Only)
34 170-045-330 Capscrew, Hex HD 5/16-18 x 1.25 4
35 618-050-150 Plug 2
For Explosion Proof Solenoid Valve
32 219-009-001 Solenoid Coil, 120VDC 60 Hz 1
219-009-002 Solenoid Coil, 240VDC 60 HZ 1
219-009-003 Solenoid Coil, 12VDC 1
219-009-004 Solenoid Coil, 24VDC 1
219-009-005 Solenoid Coil, 110VDC 50 Hz 1
219-009-006 Solenoid Coil, 230VDC 50 Hz 1

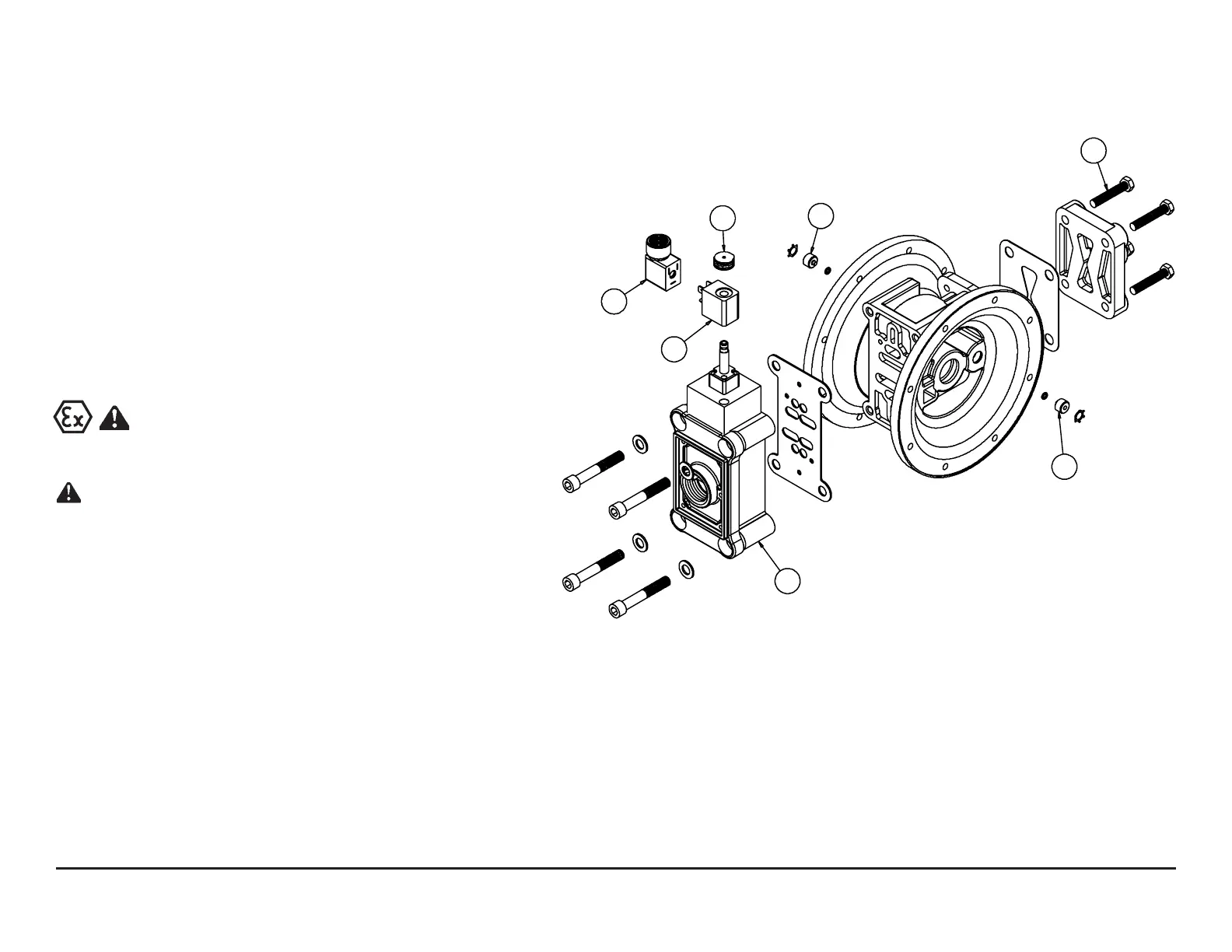

Solenoid Shifted Air Valve Drawing
Note: Pumps equipped with Explosion-Proof Soleniod
Coils are ATEX compliant.
