s1fmdl1sm-REV1207 Model S1F Metallic Page 20

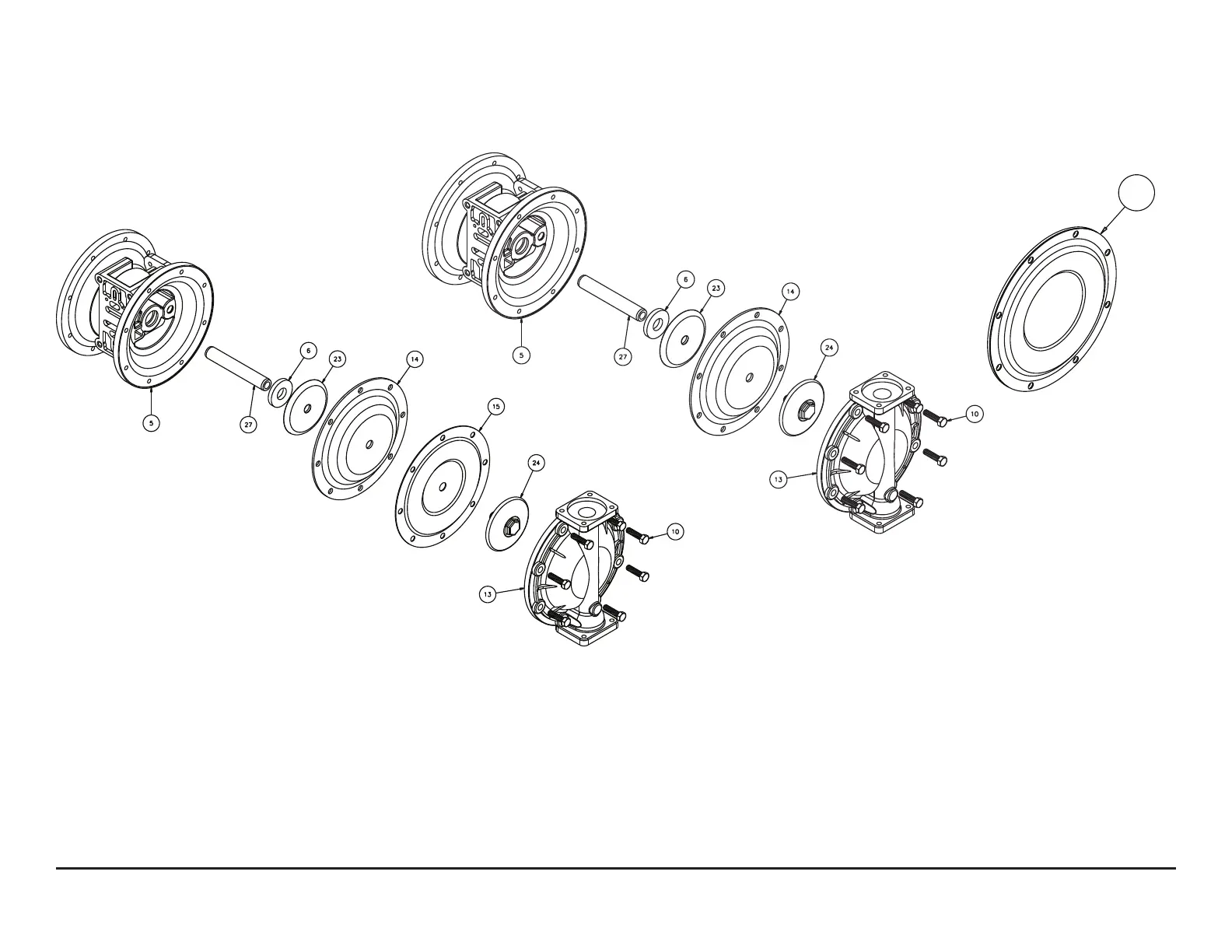

Diaphragm Service Drawing,
Non-Overlay
Diaphragm Service Drawing,
with Overlay
One-Piece Bonded
*
Diaphragm Service
Drawing
*AVAILABLE FOR FIELD CONVERSION FROM OVERLAY
TO ONE-PIECE BONDED DIAPHRAGM KITS:
Kit: 475-250-000
2 286-112-000 One-Piece Diaphragm
2 612-218-330 Inner Plates
