s1fmdl1sm-REV1207 Model S1F Metallic Page 7

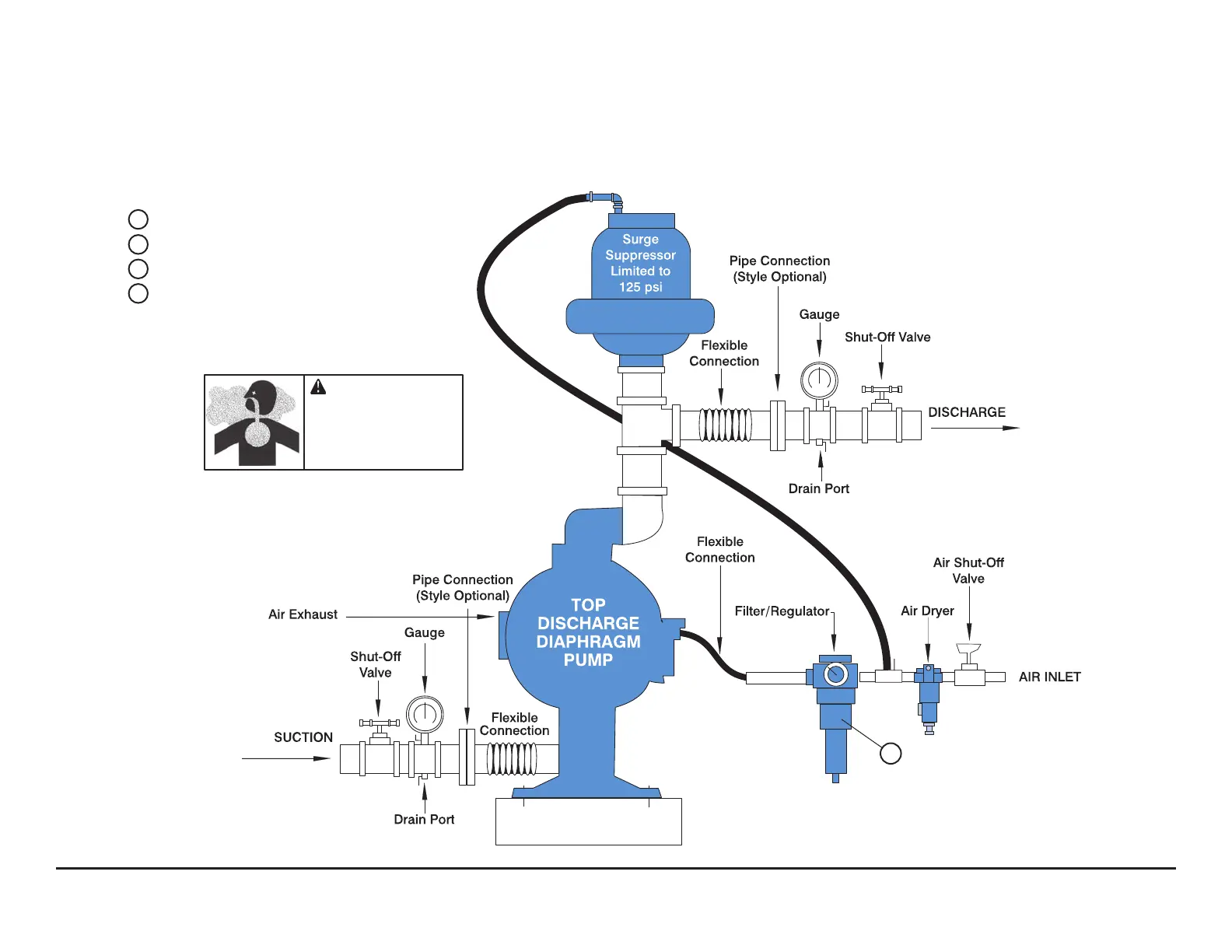

TYPICAL INSTALLATION GUIDE
CAUTION
The air exhaust should be
piped to an area for safe
disposition of the product
being pumped, in the event
of a diaphragm failure.
Air Inlet
Line
2
TA1 or TA25 Tranquilizer
020-050-000 Filter/Regulator
020-050-001 Lubricator
Air Dryer
1
2
3
4
