10
I

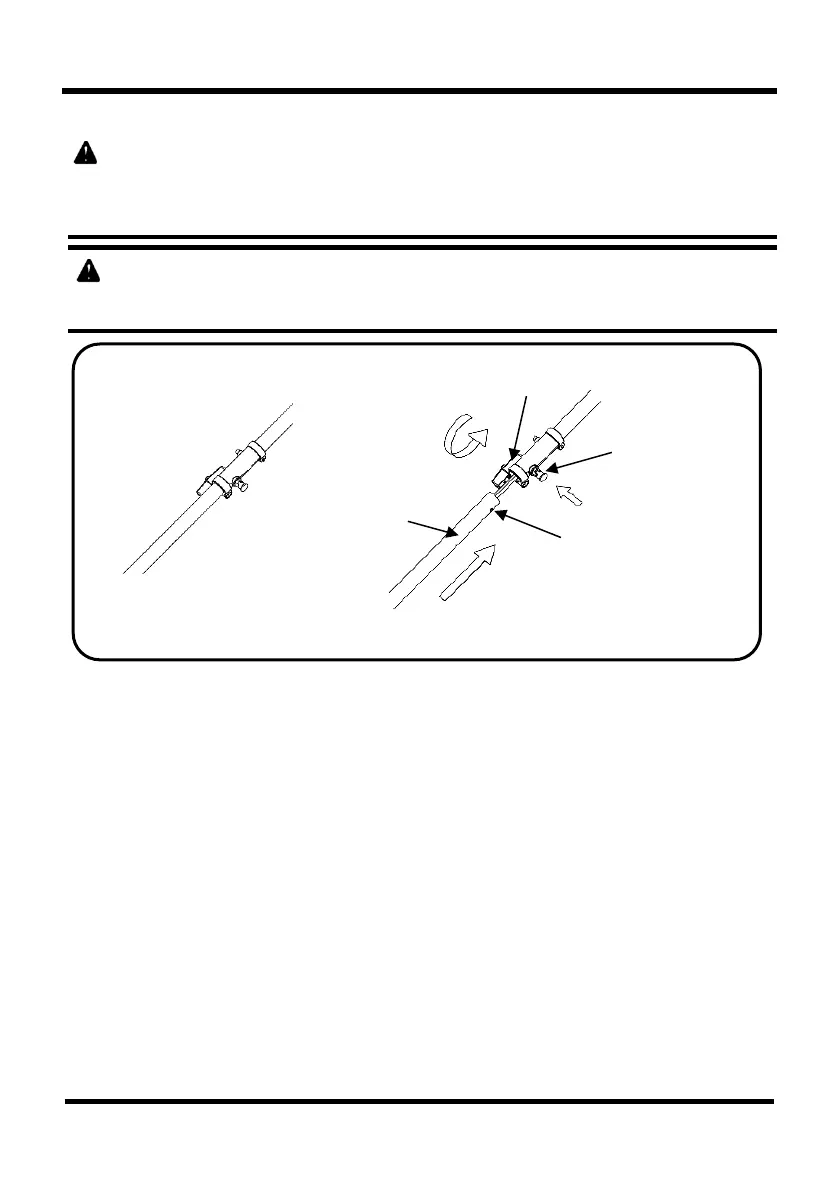

nstalling the string trimmer head (lower tube ) to the rear handle （See Fig.4)
WARNING
Read and understand entire Operator’s Manual for each optional attachment used on this power
head and follow all warnings and instructions. Failure to follow all instructions may result in electric
shock, fire and/or serious personal injury.
WARNING
Never install, remove, or adjust any attachment while power head is running. Failure to stop the
motor can cause serious personal injury. Never operate power head without an attachment.
N
OTE: When using string trimmer head, use only .080 in. diameter line.
The attachment connects to the rear handle (upper tube) by means of a coupler device.
• Loosen the attachment knob on the coupler.
• Push in the release button located on the attachment shaft. Align the button with the guide
recess on the power head coupler and slide the two shafts together. Rotate the attachment
shaft until the button locks into the positioning hole.
NOTE: If the button does not release completely in the positioning hole, the shafts are not locked
into place. Slightly rotate from side to side until the button is locked into place.
• Tighten the attachment knob securely.
REMOVEING THE LOWER TUBE FROM THE REAR HANDLE（UPPER TUBE)
For removing or changing the attachment:
• Stop the tool.
• Remove the battery from the rear handle.
• Loosen the attachment knob.
• Push in the release button and twist the shafts to remove and separate
ends.
