6.2 Internal fuel oil system

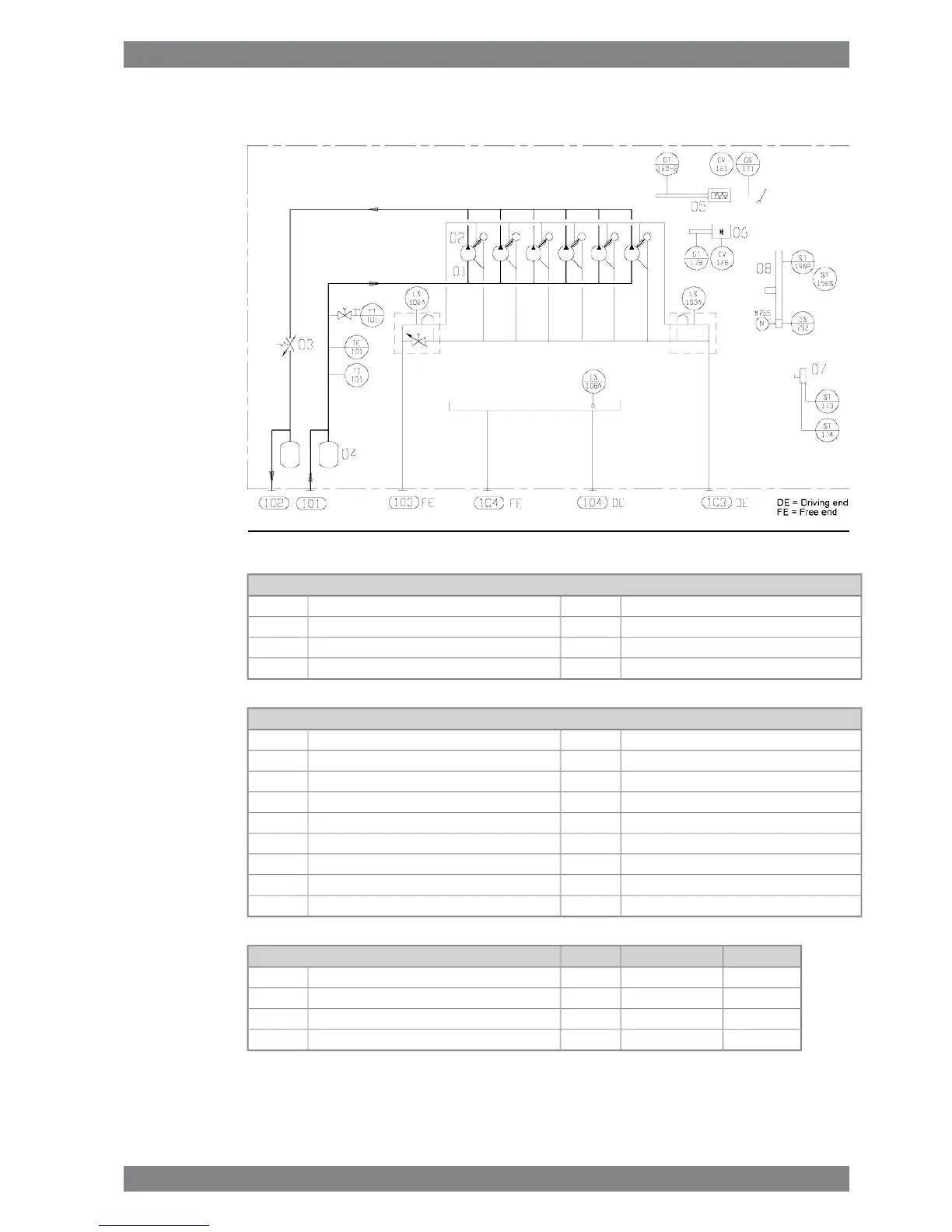

Fig 6-1 Internal fuel system, in-line engine (DAAE017289D)
System components
Fuel rack actuator05Injection pump01
Timing rack actuator06Injection valve02
Camshaft07Pressure control valve03
Flywheel08Pulse damper04
Sensors and indicators
Engine speed 1ST173Fuel oil pressure, engine inletPT101
Engine speed 2ST174Fuel oil temperature, engine inletTE101
Timing rack controlCV178Fuel oil temperature, engine inletTI101
Timing rack positionGT178Fuel oil leakage, clean primaryLS103A
Engine speed, primaryST196PFuel oil leakage, clean secondaryLS106A
Engine speed, secondaryST196SFuel oil leakage, dirty fuel driving endLS108A
Turning gear engagedGS792Fuel rack controlCV161
Electric motor for turning gearM755Fuel rack positionGT165-2
Stop lever in stop positionGS171
StandardPressure classSizePipe connections
ISO 7005-1PN40DN32Fuel inlet101
ISO 7005-1PN40DN32Fuel outlet102
ISO 7005-1PN40DN25Leak fuel drain, clean fuel103
DIN 2353OD28Leak fuel drain, dirty fuel104
