Installation manual
2 Technical data

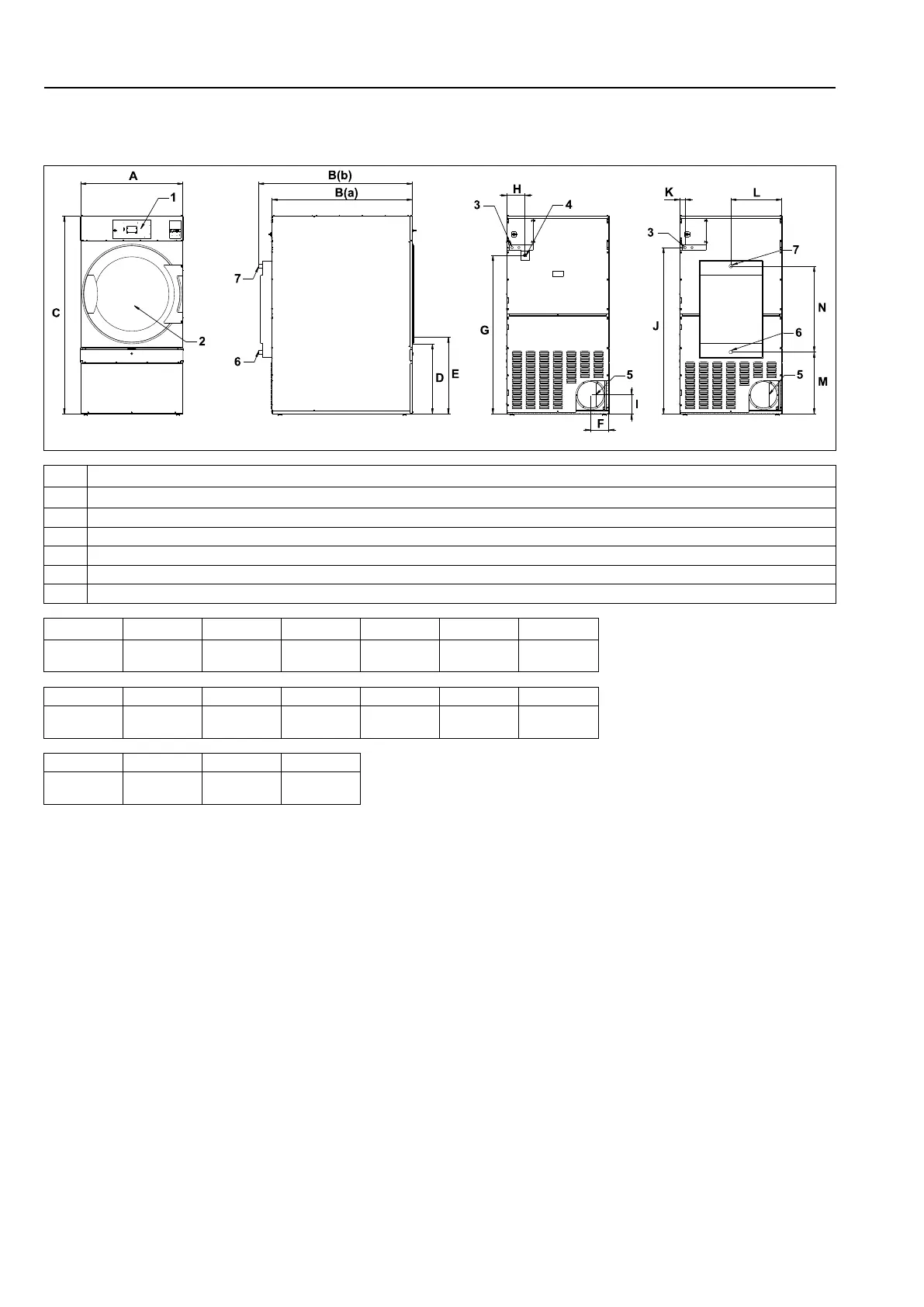

2.1 Drawing
1 Operating panel
2 Door opening, ⌀ 810 mm / ⌀ 31 7/8 inch
3 Electrical connection
4 Gas connection
5 Exhaust connection
6 Steam: in
7
Steam: out
A B(a) B(b) C D E
mm
inch
961
37 13/16
1560
61 7/16
1640
64 9/16
1857
73 1/8
660
26
720
28 3/8
F G H I J K
mm
inch
170
6 11/16
1490
58 11/16
200
7 7/8
180
7 1/16
1560
61 7/16
50
1 15/16
L M N
mm
inch
480
18 7/8
580
22 13/16
805
31 11/16
