Wascomat D783 - Single-Phase Connection

Installation manual
41
9.2 Single-phase connection

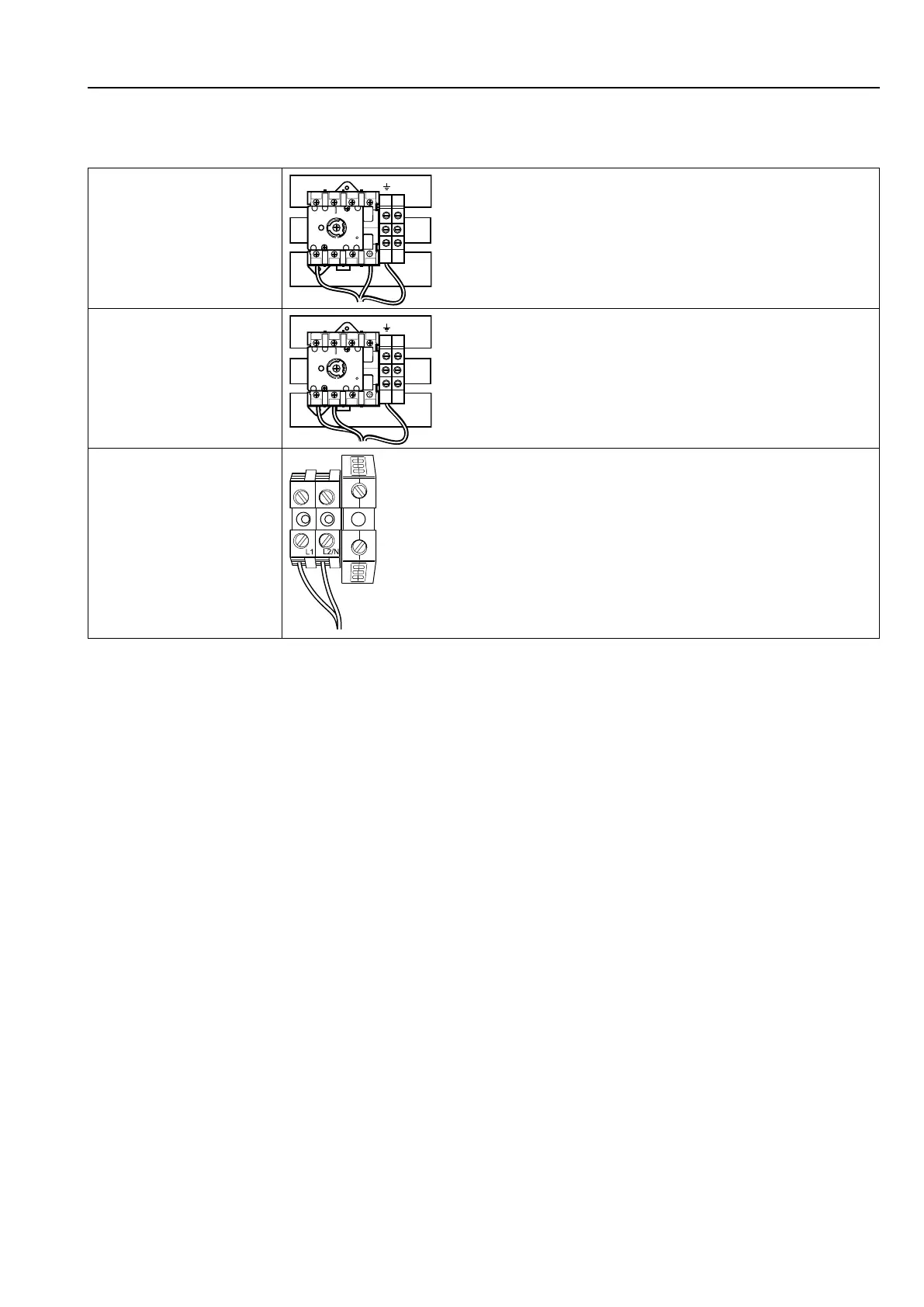

Demount the cover panel from the supply unit. Connect the earth and other wires as shown.
1NAC
1AC
1AC
When the installation is completed remount the cover panel and check:
• That the drum is empty.
• That the machine operates by connecting the power to the machine and start a program with heat.
