Wascomat D783 - Three-Phase Connection; Electrical Connections

42
Installation manual

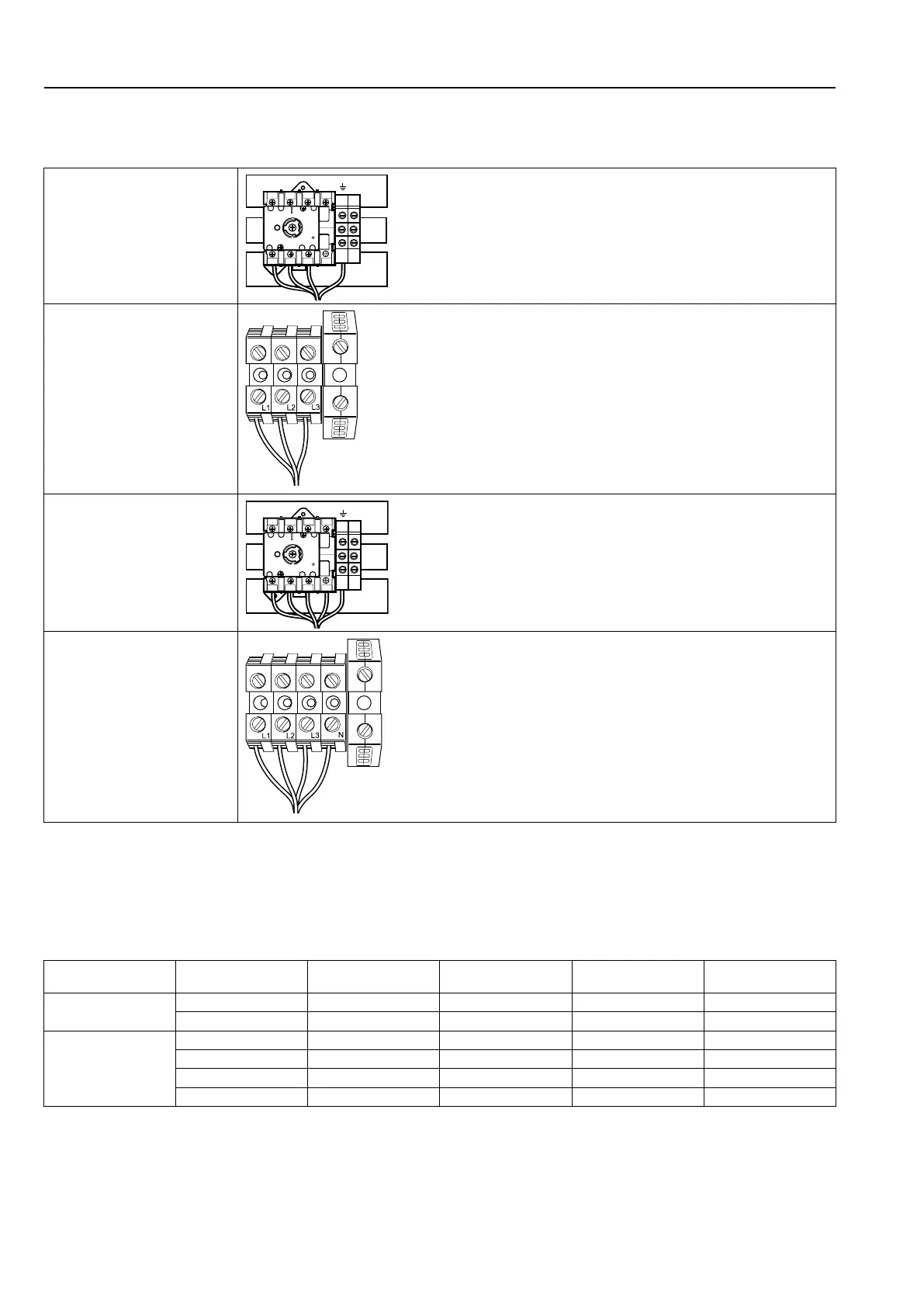

9.3 Three-phase connection
Demount the cover panel from the supply unit. Connect the earth and other wires as shown.
3AC
3AC
3NAC
3NAC
When the installation is completed remount the cover panel and check:
• That the drum is empty.
• That the machine operates by connecting the power to the machine and start a program with heat.
9.4 Electrical connections
Heating alternative Main voltage Hz Heating power
kW
Total power
kW
Recommended fuse
ITCB A
Electric heated 208–240V 3 ~ 60 32.0 34.4 100
440/480V 3 ~ 60 32.0/40.0 34.5/42.5 60/70
Gas heated/Steam
heated
208–240V 1 ~ 60
-
2.0 15
208–240V 3 ~ 60
-
2.4 15
440/440V 3 ~ 60
-
2.5 15
120V 1 ~ 60
-
2.1 20
