Installation manual
Alternative measuring meathod
Adjusting the air flow may only be carried out by authorized personnel.
Use a home made U tube manometer, a hose (max ⌀ 10 mm), with water. Insert one end of the hose in the hole, hold
the hose according to the picture so that the water is in level.
Start the machine and measure the difference between the water in one of the hose ends with the other.
1 mm water column = 10 Pa.
1/16 inch water column = 0.0014 PSI

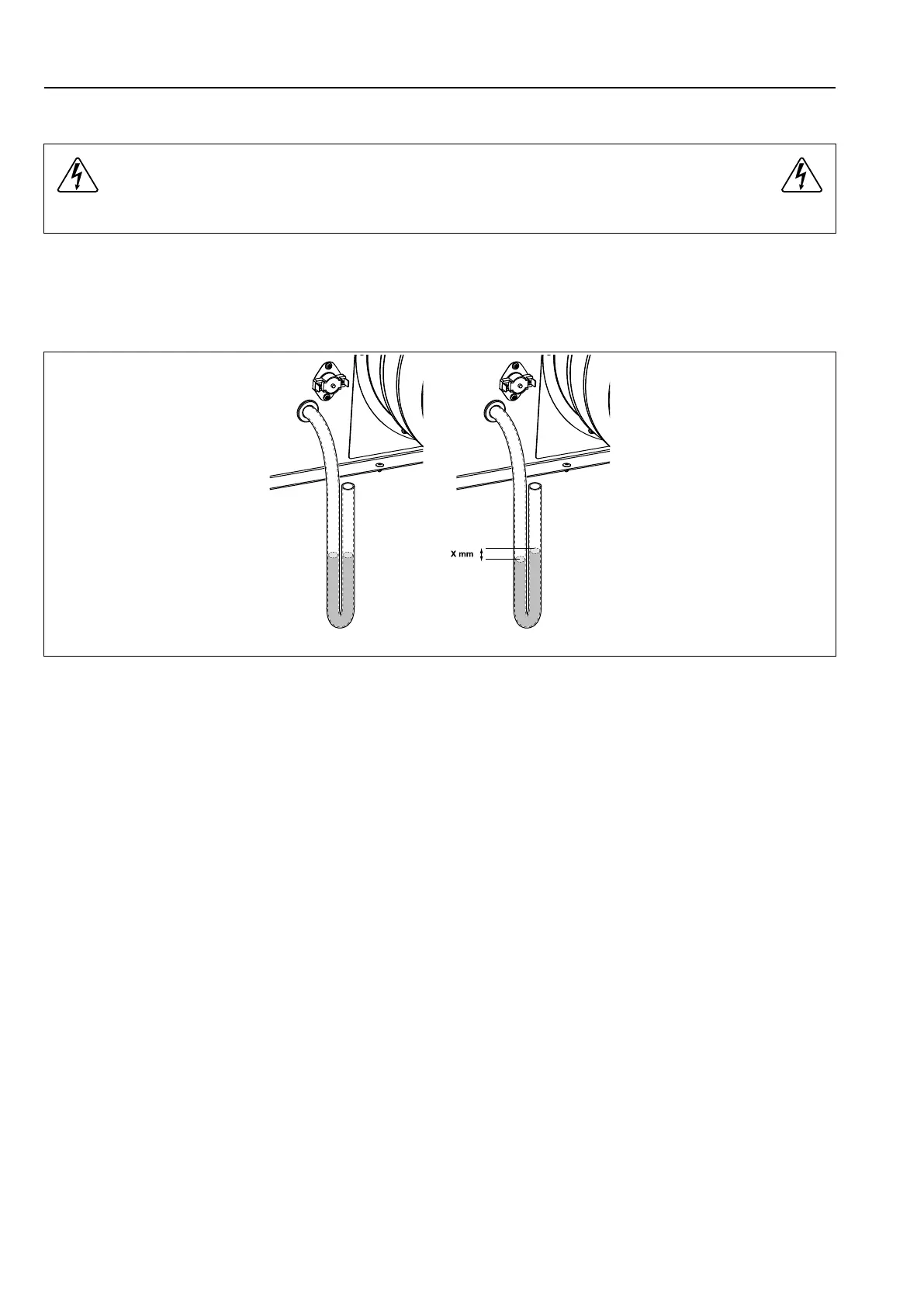

fig.7528
When the dryer is adjusted remount the heating sensor (NTC sensor) (A) and lock the damper (B) in the new position
with the screws.
Remount the lower back panel.
