Wascomat EX677 - Machine Dimensions

15
Technical data
A B C D E F G H I K L M N O P R S
EX618 720 690 1115 355 720 825 45 1030 220 1010 135 910 830 360 100 240 –
EX625 830 705 1200 365 740 910 45 1115 220 1095 135 995 910 415 100 295 –
EX630 910 785 1325 435 825 1035 125 1245 215 1225 300 1125 – – 100 305 455
EX645 970 870 1410 470 945 1120 115 1330 230 1290 315 1205 370 410 100 335 485
EX660 1020 915 1445 500 955 1155 100 1360 215 1320 300 1240 350 360 100 360 510
EX677 1020 1060 1445 500 1135 1155 100 1360 215 1320 300 380 – – 100 360 335

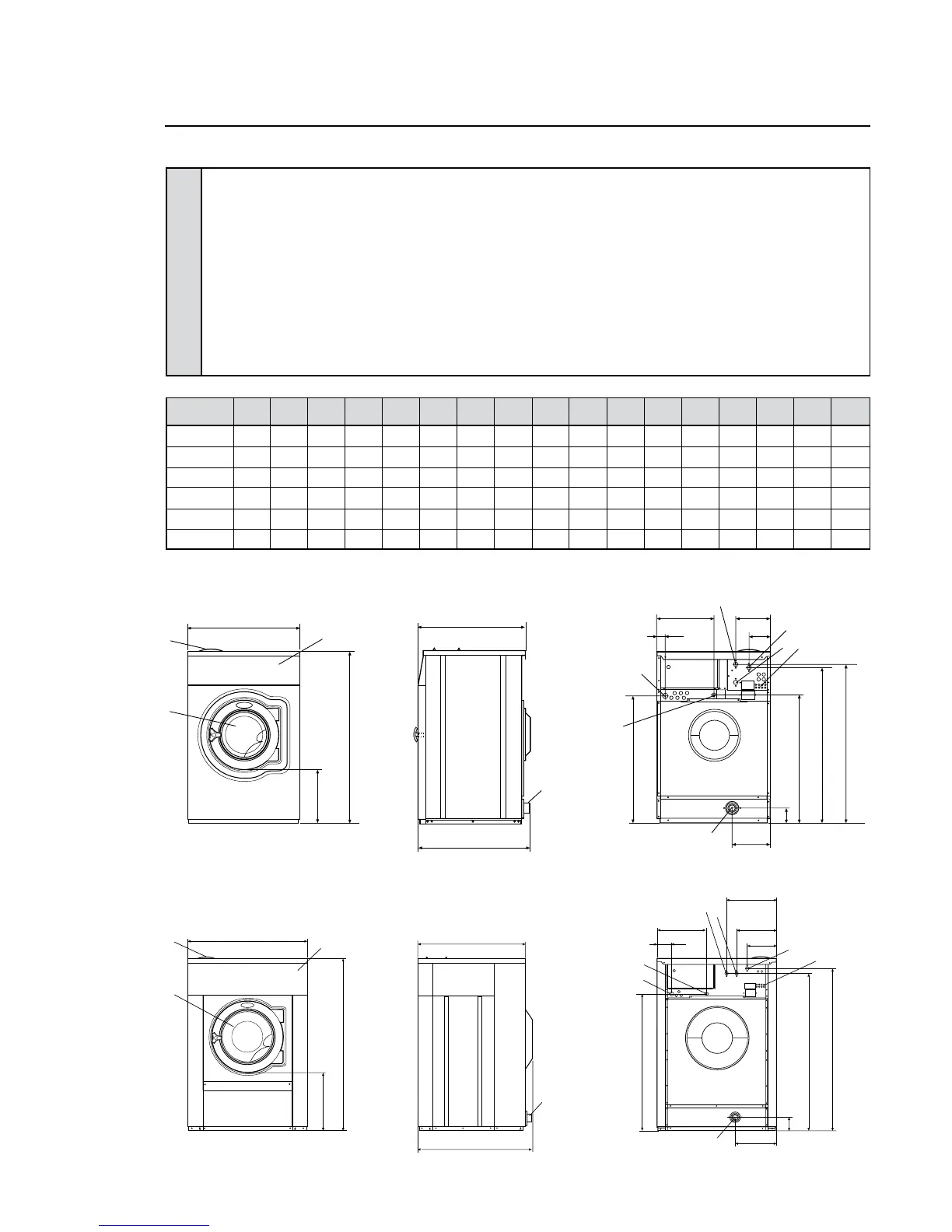

EX618, EX625, EX630
EX645, EX660, EX677
Rear side
Front
Right side
Rear side
Front
Right side
1 Electrical connection
2 Cold water
3 Hot water
4 Hard water (option)
5 Steam connection
6 Drain
7 Liquid detergent supply
8 Control panel
9 Soap box
10 Door opening, EX618: ø 310 mm/12 3/16", EX625: ø 365 mm/14 3/8", EX630: ø 395 mm/15 9/16", EX645,
EX660, EX677: ø 435 mm/17 1/8"
