Wascomat EX677 - Page 16

16

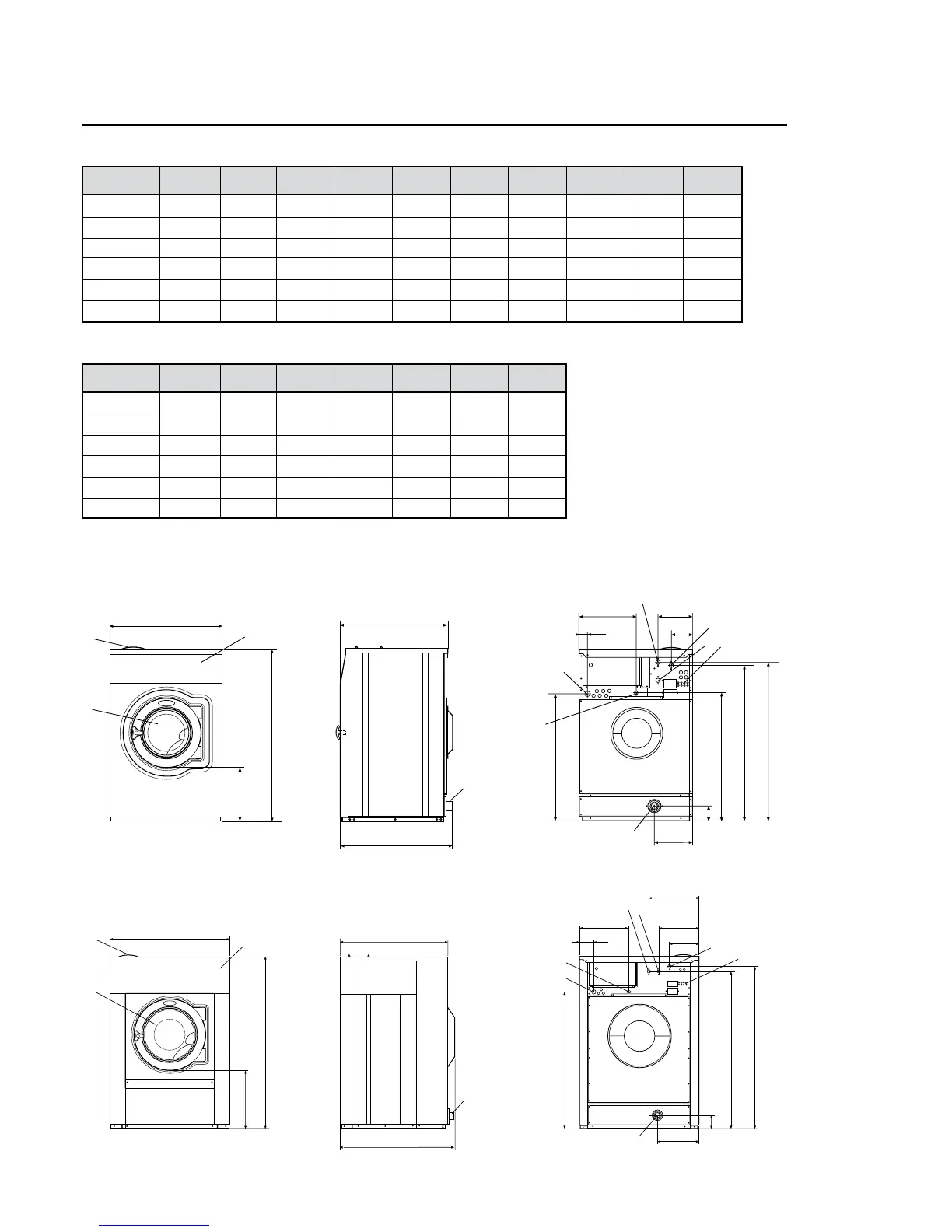

Technical data
EX618, EX625, EX630
EX645, EX660, EX677
in inch A B C D E F G H I K
EX618 28 3/8 27 3/16 43 7/8 14 28 3/8 32 1/2 1 3/4 40 9/16 8 11/16 39 3/4
EX625 32 11/16 27 3/4 47 1/4 14 3/8 29 1/8 35 13/16 1 3/4 43 7/8 8 11/16 43 5/16
EX630 35 13/16 30 7/8 52 3/16 17 1/8 32 1/2 40 3/4 4 15/16 49 8 7/16 48 1/4
EX645 38 3/16 34 1/4 55 1/2 18 1/2 37 3/16 44 1/8 4 1/2 52 3/8 9 1/16 50 13/16
EX660 40 3/16 36 56 7/8 19 11/16 37 5/8 45 1/2 3 15/16 53 9/16 8 7/16 51 15/16
EX677 40 3/16 41 3/4 56 7/8 19 11/16 44 11/16 45 1/2 3 5/16 53 9/16 8 7/16 51 15/16
in inch L M N O P R S
EX618 5 5/16 35 13/16 32 11/16 14 3/16 3 5/16 9 7/16 –
EX625 5 5/16 39 3/16 35 13/16 16 5/16 3 5/16 11 5/8 –
EX630 11 13/16 44 5/16 – – 3 5/16 12 17 15/16
EX645 12 3/8 47 7/16 14 9/16 16 1/8 3 5/16 13 3/16 19 1/8
EX660 11 13/16 48 13/16 13 3/4 14 15/16 3 5/16 14 3/16 20 1/16
EX677 12 3/16 14 15/16 – – 3 15/16 14 3/16 13 3/16
Rear side
Front
Right side
Rear side
Front
Right side
A
8
9
10
C
D
5281 B
B
E
6
5282 B
K
N
M
R
P
6
F
5
1
O
G
I
L
3
2
7
4
5283 B
A
9
10
8
D
C
5377 A
5379 A
B
E
6
G
S
L
M
I
5
1
F
6
P
R
K
H
5378 A
7
3
2
2
