Wascomat EX677 - Page 17

17

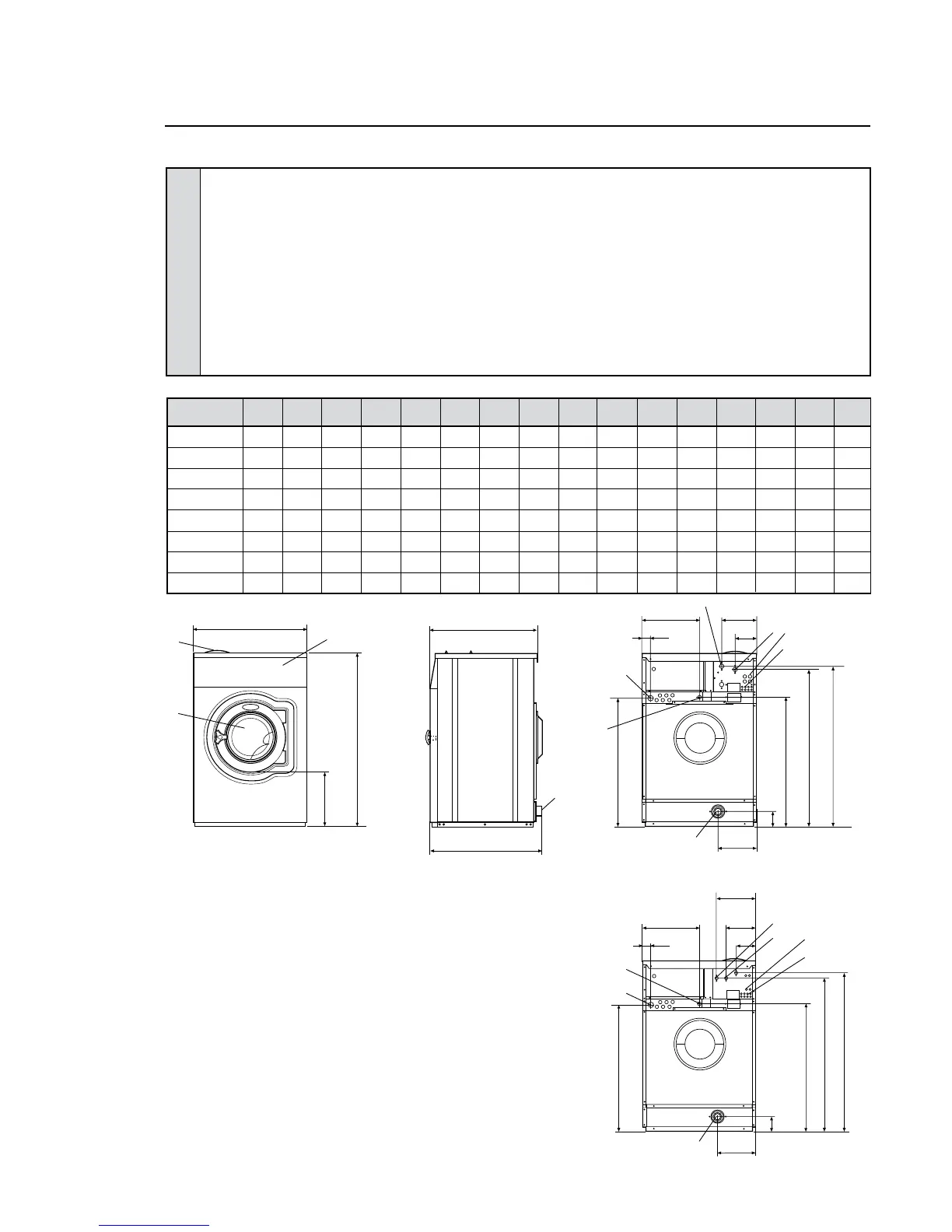

Technical data
1 Electrical connection
2 Cold water
3 Hot water
4 Steam connection
5 Drain
6 Liquid detergent supply
7 Control panel
8 Soap box
9 Water reuse
10 Door opening, W/SU620: ø 310 mm/12 3/16", W/SU625, SU630: ø 365 mm/14 3/8",
W630, SU645: ø 395 mm/15 9/16", W645, W/SU660, W/SU677: ø 435 mm/17 1/8"
W/SU620-630
Rear side
Right sideFront Rear side
W/SU645-677
in mm A B C D E F G H I K L M N O P R
W/SU620 660 730 1115 355 765 825 45 1030 215 1010 130 830 385 – 100 225
W/SU625 720 705 1200 365 740 910 45 1115 215 1095 130 910 420 – 100 235
W/SU630 720 790 1200 365 825 910 45 1115 215 1095 130 910 420 – 100 235
W645 750 880 1333 435 915 1035 45 1245 130 1225 210 1040 325 295 100 225
SU645 750 880 1333 435 915 1035 45 1245 130 1225 210 1040 325 295 100 225
W660 830 955 1410 470 990 1120 45 1330 160 1290 245 1125 325 325 100 265
SU660 830 955 1410 470 990 1120 45 1330 160 1290 245 1125 325 325 100 265
W677 910 1040 1445 500 1075 1155 45 1365 160 1325 245 1155 280 325 100 210
